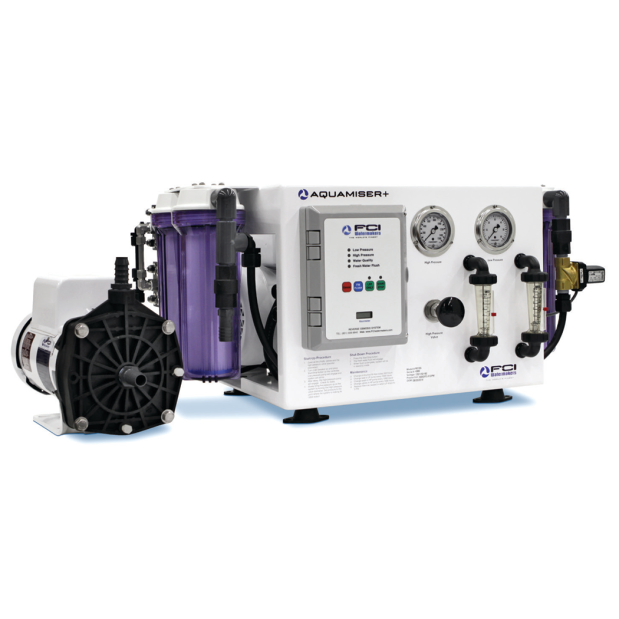

Aquamiser+ Watermaker - Framed Series

The Aquamiser+ Watermaker Series offers programmable settings and remote display capability through an advanced control system. This full-featured affordable watermaker is ideal for meeting your water production needs.

With outputs of 250-1,800 gallons per day, the Aquamiser+ will provide the safety and controls needed to operate both dependably and efficiently.

The Aquamiser+ is available in framed and modular configurations for installation in tight spaces as well as on bulkheads. However, despite its small size, the expansive controls include a fully automatic Fresh Water Flush System for unattended maintenance. Scheduled flushes, once a week or more frequently, will help maintain and keep your watermaker fresh and ready for your next voyage.

Note – Aquamiser+ watermakers run on 120V or 220V AC at 50/60 Hz.
50 Hz operation, however, will somewhat degrade system performance. Contact Fisheries at 800-426-6930 for other voltage options.

Standard Features —
• Traditional watermaker providing analog pressure and flow readings
• Exclusive AQ3 Control System featuring staged starting of motors
• Timed start-up (Prime, Init, Run)
• TDS (Total Dissolved Solids) monitoring of product water
• Automatically diverts water to the product tank below 500 PPM
• Fully programmable automatic Fresh Water Flush; or, convenient one-touch button for manual operation
• Overpressure protection (HP fault)
• Loss of Prime/Fouled Filter detection (LP fault)
• Choice of Standard or Commercial Pre-Filters*

Optional Remote Display Features –
• Remote system control from up to 150 ft away
• Readout of product TDS
• Automatic tank level controls
• Programmable times/set points and display settings

Available Options –
• Dockside Treatment System (DTS)
• Filter Replacement Kit
• Pocket PPM Meter
• Ultra-Violet Sterilizer

Now You Can Treat Questionable Dockside Freshwater —
It's not unusual to arrive at a dock to find that the available fresh water source may be of questionable quality, or have high levels of dissolved solids.
Aquamiser+ Watermakers can be used along with FCI's optional Dockside Treatment System (DTS) (a Special Order item; inquire at 800-426-6930) allowing you to use your watermaker to purify dockside water sources.
Important - Using freshwater under high pressure during the watermaking process will permanently damage standard Reverse Osmosis membranes.
The in-line DTS unit incorporates a separate set of freshwater-compatible membranes, but uses the watermaker's pumps and control panel, so you can produce high quality drinking water no matter where your boat is docked, and at minimal cost.
The resulting water also has the added benefit of having virtually no dissolved solids - making for spot-free deck and hull washdowns.

*Pre-Filter Options
When you order your Aquamiser+ you have a choice of pre-filters:
The "Standard" pre-filter is a dual filter comprised of one each of 20 micron and 5 micron 6 sq ft polyblend filters plumbed sequentially.
The "Commercial" pre-filters are constructed of 40 sq ft of polyblend media. They are rated at 5 microns and allow extended use of the watermaker between pre-filter servicing.
Note – The 1200 and 1800 Aquamiser+ units have a larger pump that produces a flowrate too high for the Standard pre-filter; these units are only available with Commercial pre-filters.
