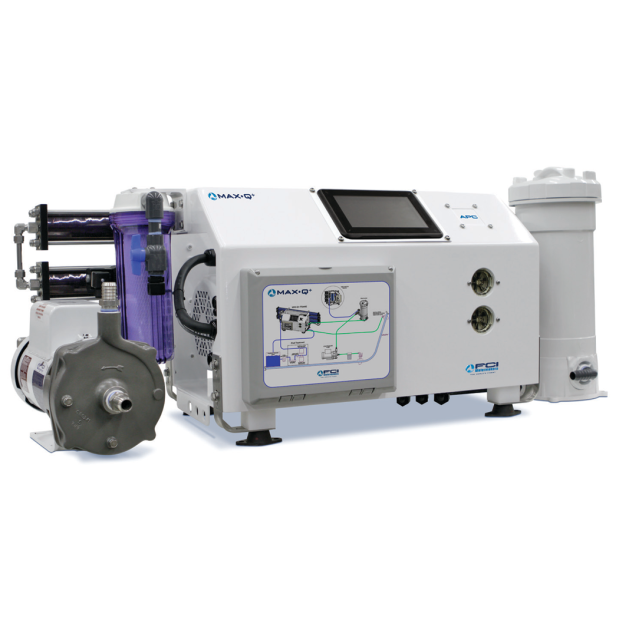

Max-Q+ Watermaker - Framed Series, 700 - 1,850 GPD

The Max-Q+ and Max-Q+APC are the latest evolution of the Max-Q product line. They feature FCI's exclusive V4 control system which utilizes a high resolution marine-grade 7-inch touch screen panel with an advanced intuitive interface. Operating and controlling a Watermaker has never been easier. With the optional APC, Automated Pressure Control, making water is literally a touch away.

FCI has been manufacturing watermakers and water purification equipment for over two decades. They design and manufacture all of their own equipment in-house for optimum quality control, and to ensure you are getting the most reliable watermaker on the market today. As an owner, you can have confidence in knowing a company which has been in business for over 20 years, and specializing in only watermakers, is here for you.

The industry’s most reliable watermaker puts complete automation at your fingertips. FCI’s next generation controller and interface allows customization of your watermaker through intuitive advanced touch screen controls.

FCI's Automatic Pressure Control (APC) valving provides fully automated, self-adjusting, source water valve selection that operates with the touch of a button. No more having to go to the watermaker to manually adjust pressures as conditions change.

The monitor's higher heat tolerance and system design allows it to work in the harshest environments.
FCI touch screen controllers can be installed with confidence, because they are Bridge Classified for marine use with Type Approval Certifications from: ABS, GL, Lloyd’s Register EMEA, Det Norske Veritas, and the Russian Maritime Register of Shipping.

Features —
• The industry's only Marine Certified 7" high resolution, full color, touch screen controller
• NMEA 2000 compatible
• Unique IP address for remote access
• Built-in, on-screen troubleshooting
• Exclusive NEMA 4X rated enclosures and valves for safety and corrosion protection in harsh environments
• Small frame footprint
• Ability to relocate Pressure Vessel Assembly and FWF Assembly to reduce frame footprint
• 8-point Vibration Isolation and low RPM/high pressure pumps for exceptionally quiet operation
• 316SS Boost Pump
• 316SS High Pressure Pump
• Visual indication of product and brine flow
• Upgradeable to 1,850 GPD
• Fully automatic programmable Fresh Water Flush with carbon block filter
• All models come standard with pleated polyblend 40 sq ft/5 micron commercial pre-filter
• Motors rated for 50 or 60 Hertz operation
• Multiple display station capabilities
• Automatic Flush system
• Washdown Duty Motors (epoxy-coated, neoprene gaskets)
• Flow sensors
• 316SS pressure transducers
• Pretreatment lockout
• Two year warranty
• Complete exploded view manuals
• One-piece skid mount design

Treat Questionable Dockside Freswater —
Max-Q+ Watermakers can be used with FCI's optional Dockside Treatment System (DTS) which allows using your watermaker to treat dockside water sources - which may be of questionable quality, or have high levels of dissolved solids.
(Using freshwater under high pressure during the watermaking process will permanently damage standard Reverse Osmosis membranes.)
The in-line DTS unit incorporates a separate set of freshwater-compatible membranes, but uses the watermaker's pumps and control panel, so you can produce high quality drinking water no matter where your boat is docked, and at minimal cost.
The resulting water also has the added benefit of having virtually no dissolved solids - making for spot-free deck and hull washdowns.
