Max-Q+ Watermaker - Modular Series
New Product1
Share THIS PAGE:

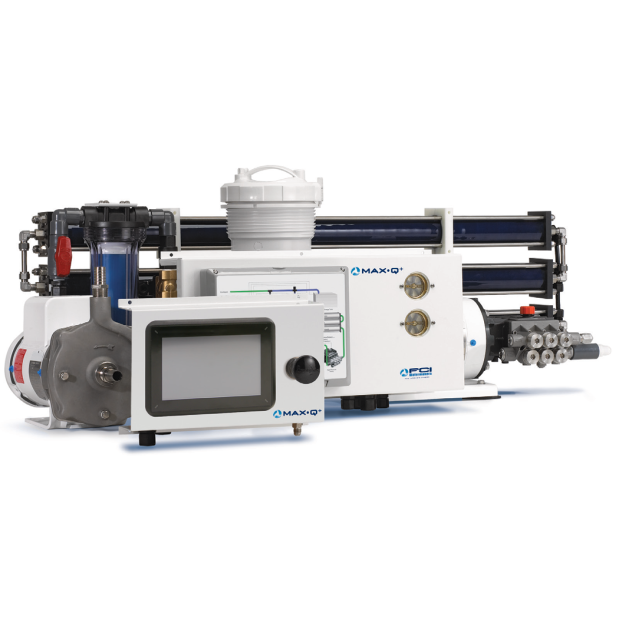

Max-Q+ Watermaker - Modular Series

700 - 1,850 Gallons Per Day • Optional APC - Automated Pressure Control

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The Max-Q+ and Max-Q+APC are the latest evolution of the Max-Q product line. FCI's exclusive V4 control system utilizes a high resolution marine-grade 7-inch touch screen panel with an advanced intuitive interface. Operating and controlling a Watermaker has never been easier. With the optional APC, Automated Pressure Control, making water is literally a touch away.

FCI has been manufacturing watermakers and water purification equipment for over two decades. They design and manufacture all of their own equipment in-house for optimum quality control, and to ensure you are getting the most reliable watermaker on the market today. As an owner, you can have confidence in knowing a company which has been in business for over 20 years, and specializing in only watermakers, is here for you.

The industry’s most reliable watermaker puts complete automation at your fingertips. FCI’s next generation controller and interface allows customization of your watermaker through intuitive advanced touch screen controls. The monitor's higher heat tolerance and system design allows it to work in the harshest environments. FCI touch screen controllers can be installed with confidence, because they are Bridge Classified for marine use with Type Approval Certifications from: ABS, GL, Lloyd’s Register EMEA, Det Norske Veritas, and the Russian Maritime Register of Shipping.

Features —
• New marine grade 7" high resolution touch screen controller
• Monitors are Type Approval Certified for marine use by: ABS, GL, Lloyd’s Register EMEA, Det Norske Veritas, and Russian Maritime Register of Shipping.
• New NMEA 2000 compatible
• Unique IP address for remote access
• Built-in, on-screen troubleshooting
• Small frame footprint
• Ability to relocate Pressure Vessel Assembly and FWF Assembly to reduce frame footprint
• 316SS Boost Pump
• 316SS HP Pump
• Visual indication of product and brine flow
• Upgradeable to 1,850 GPD
• Fully automatic programmable Fresh Water Flush with carbon block filter
• Standard 40 sq. ft. commercial Pre-filter
• Dual hertz motors for 50 or 60 hertz operation
• Multiple display station capabilities
• 40 sq. ft. of 5µ micron pleated filtration
• Vibration isolation
• Automatic Flush system
• Washdown Duty Motors (epoxy-coated, neoprene gaskets)
• Flow sensors
• 316SS pressure transducers
• Pretreatment lockout
• Two year warranty
• Complete exploded view manuals
• One-piece skid mount design

For dimensional information regarding the Max-Q+ watermaker with modular components, refer to the Data Sheet link, below.

Treat Questionable Dockside Freswater —
Max-Q+ Watermakers can be used with FCI's optional Dockside Treatment System (DTS) which allows using your watermaker to treat dockside water sources - which may be of questionable quality, or have high levels of dissolved solids.
(Using freshwater under high pressure during the watermaking process will permanently damage standard Reverse Osmosis membranes.)
The in-line DTS unit incorporates a separate set of freshwater-compatible membranes, but uses the watermaker's pumps and control panel, so you can produce high quality drinking water no matter where your boat is docked, and at minimal cost.
The resulting water also has the added benefit of having virtually no dissolved solids - making for spot-free deck and hull washdowns.

Click here for additional information and technical data about this product.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDFCI WaterMakers#AvailabilityDescriptionUOMYour PriceQTY
444054FCI MQM726+ MQM726+Loading...700 GPD Max-Q+ Modular Watermaker - 220V AC/1Ø/50-60 HzLoading...
444055FCI MQM726+APC MQM726+APCLoading...700 GPD Max-Q+ Modular Watermaker w/ APC (Automated Pressure Control) - 220V AC/1Ø/50-60 HzLoading...
455702FCI MQM1216+APC MQM1216+APCLoading...1275 GPD Max-Q+ Modular Watermaker w/ APC (Automated Pressure Control) - 110V AC/1Ø/50-60 HzLoading...
444050FCI MQM1226+ MQM1226+Loading...1275 GPD Max-Q+ Modular Watermaker - 220V AC/1Ø/50-60 HzLoading...
444051FCI MQM1226+APC MQM1226+APCLoading...1275 GPD Max-Q+ Modular Watermaker w/ APC (Automated Pressure Control) - 220V AC/1Ø/50-60 HzLoading...
444052FCI MQM1826+ MQM1826+Loading...1850 GPD Max-Q+ Modular Watermaker - 220V AC/1Ø/50-60 HzLoading...
444053FCI MQM1826+APC MQM1826+APCLoading...1850 GPD Max-Q+ Modular Watermaker w/ APC (Automated Pressure Control) - 220V AC/1Ø/50-60 HzLoading...
