FES 203167 CENTRE CONNECTO MSV D8/25

The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications – from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.

• The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.
• Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.
• All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.

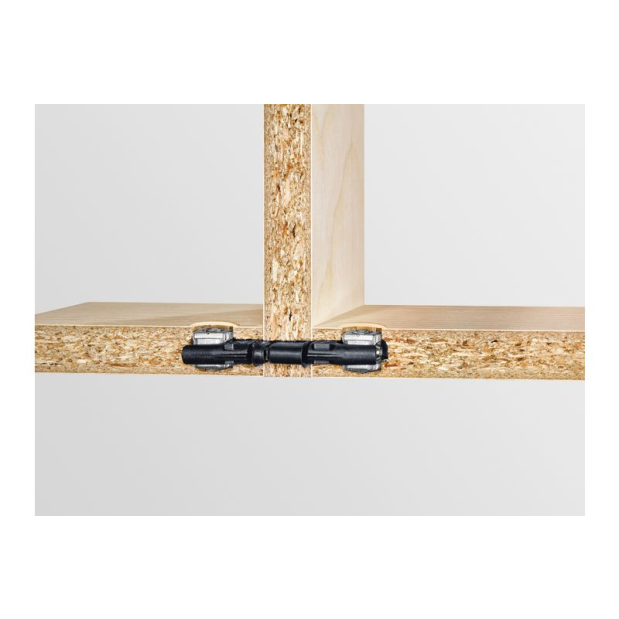

• for 25 center panel joints with the DF 500
• drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture

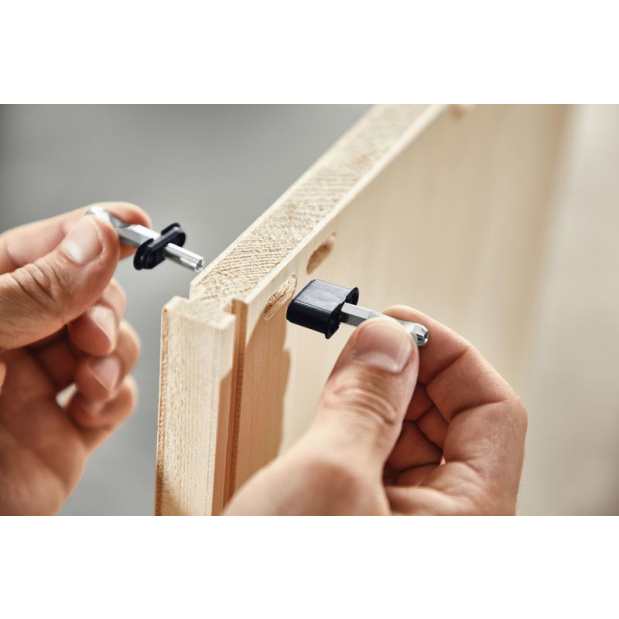

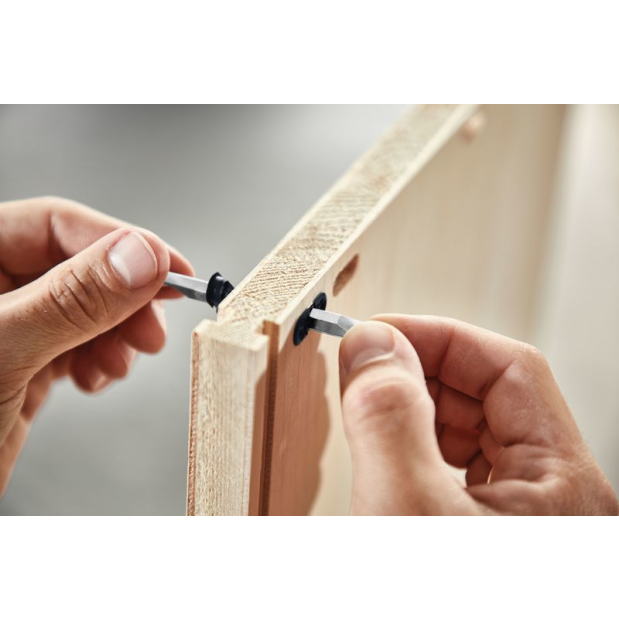

• The DOMINO/DOMINO MSV D8/25 connector is positioned both in the cupboard panel and the base of the structure with the DOMINO jointer DF 500

Includes:
• 25x Bolt with external thread for DOMINO centre panel connector
• 25x Bolt with internal thread for DOMINO centre panel connector
• 50x Plastic trays
• 50x Cross anchor with threaded pin
• without cover caps
