DOMINO Joiner DF 500 Q Set

Domino Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining
• Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time.
• Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.
• Indexing pins for quick alignment against the edge of the workpiece for accurate placement.
• Patented Routing Principle - The spiral cutter rotates and oscillates to create perfect mortises.
• Mortise Width Adjustment - Adjusting the width of the mortise allows for easier alignment when joining panels.
• Positioning - With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the Domino joiner enables precise mortise placement and spacing.
• Pivoting Fence - Fence creates angled mortises from 0-90 degrees with positive stops at 22.5, 45, & 67.5 degrees.
• Depth Control - Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application.
• Stepped Height Stop - 7 different step positions for different material thicknesses for fast and easy fence height adjustment.
• Dust Extraction - Your mortises are clean and ready for glue when the Domino is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life.
• Carbide Tip Spiral Bit - Durable, long-lasting bit withstands 5,000-14,000 joints depending on material.
• Rapid Bit Change - Means you can change a bit in under 30 seconds to match desired tenon size.

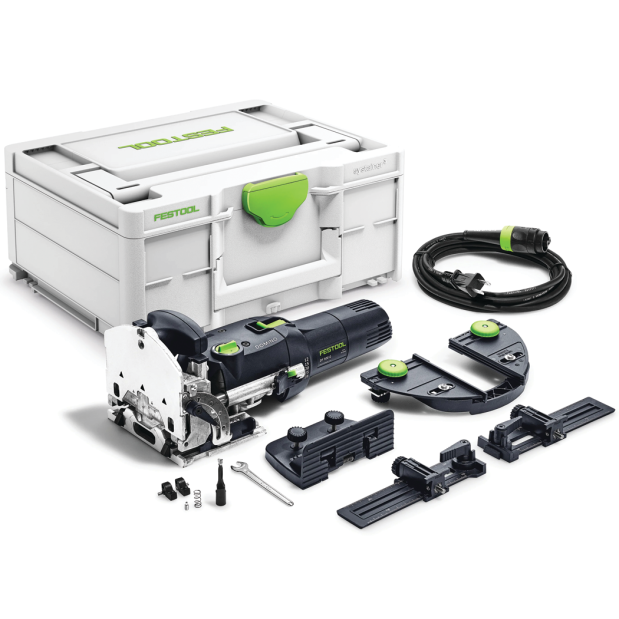

Includes
• DOMINO Cutter D5
• Cross Stop
• Trim Stop
• Support Bracket
• Wrench
• Plug-it power cord
• All packed in SysGen3 Systainer

Specifications
• Cutter spindle speed: 24,300 rpm
• DOMINO slot cutter diameter: 5mm cutter included / 4, 6, 8, 10mm cutters sold separately
• Miter routing: 0-90 degree; stop positions at 0, 22.5, 45, 67.5, & 90 degrees
• Movable stepped stop: (16/20/22/25/28/36/40 mm)
• Power consumption: 420 watts
• Routing depth stop: (12/15/20/25/28 mm)
• Routing height adjuster with scale: (5-30 mm)
• Weight: 7 lbs. (3.2 kg)
