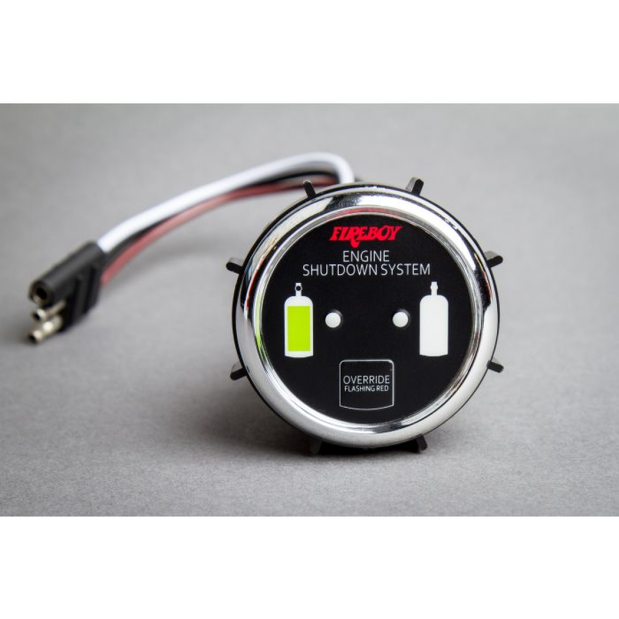

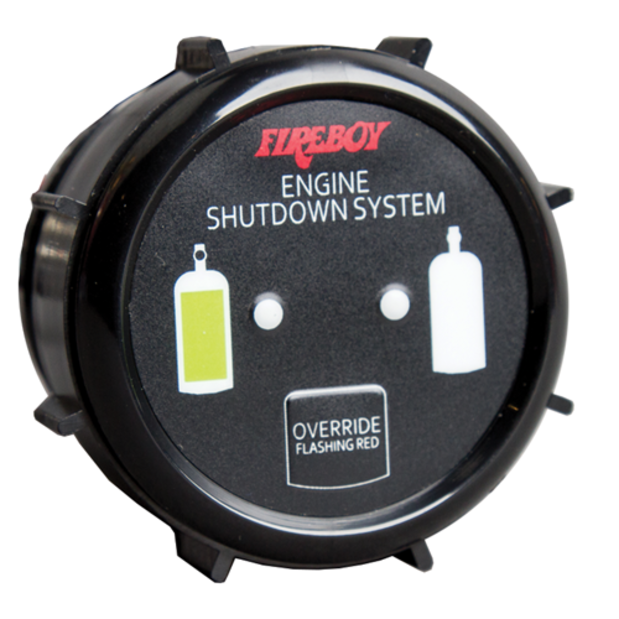

Engine Shutdown System - Round Helm Display

This is Fireboy's "standard" round automatic engine shutdown system helm display panel.
It is included with all Automatic Engine Shutdown Systems that have a round helm display.
It can also be installed as a second helm station display.

Suitable for use with all models of Fireboy Automatic Engine Shutdown Systems (ES, ESC, ELS).

Water-resistant panel features color-coded Charged / Discharged LED system status indicator lights, remote 85dB alarm horn, waterproof membrane-style switch for the System Override function. The alarm horn sounds when the Fireboy Extinguisher is low on pressure or has discharged.

Installation is simple as the rear housing is a requires round 2-1/16" cutout.

Note – the -R in the part number indicates that this is a stand-alone replacement or second display, sold in Retail packaging.
Round Display Panels (only) are availble with black or chrome bezels.
