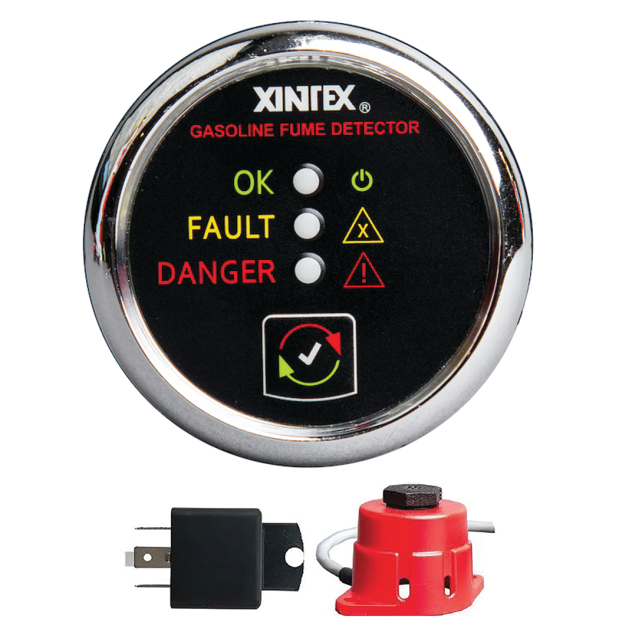

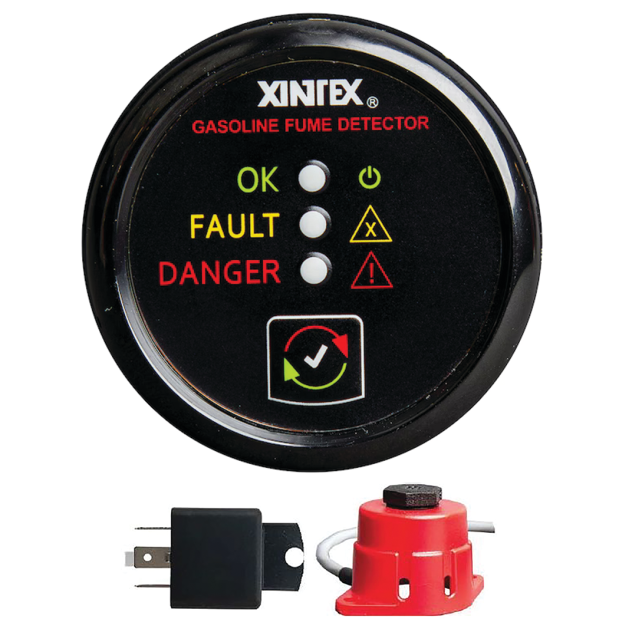

Gasoline Fume Detector w/ Alarm

The G-1B-R and G-1C-R Gasoline Fume Detectors are an effective means to detect the presence of gasoline fumes in an engine compartment, from leaking fuel tanks, or fumes from un-burnt hydrocarbons emitted from faulty exhaust systems.
The systems use a sensor, located in a strategic location, and a display unit and loud alarm that notifies you of the state of the system.

The G-1B/1C is a single-channel gasoline fume detector with a new style FS-T01 plug-in sensor.
Detects fuel leaks early so they can be corrected by the vessel operator, thus preventing personal injury and possible fire or explosion.

• 2-3/16" (56 mm) round display with multi-color LEDs & silence/test button
• 68 dBA alarm will sound and red LED will light at 20% of the LEL (Lower Explosive Limit)
• Operates on 9-30V DC (nominal 12V/24V)
• Operating temperatures: -40° F to 185° F

Includes:
• Gasoline detector module/display with Alarm
• Plastic fuel sensor
• 20 ft sensor extension cable
• User Manual

NOTE – Gasoline fume detectors are meant to serve only as a supplemental warning system. They do not correct the fault situation, nor are they meant to replace standard safety practices which should always be carried out around explosive gases.

Note – the "-R" at the end of the part number indicates the product comes in retail packaging.
