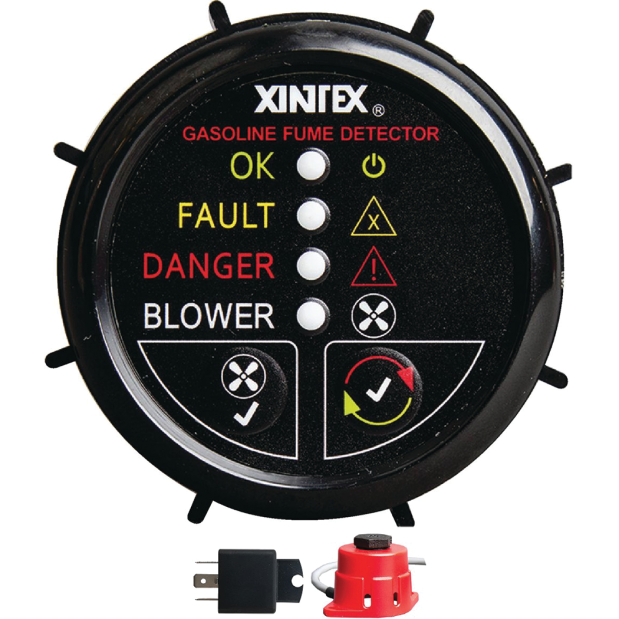

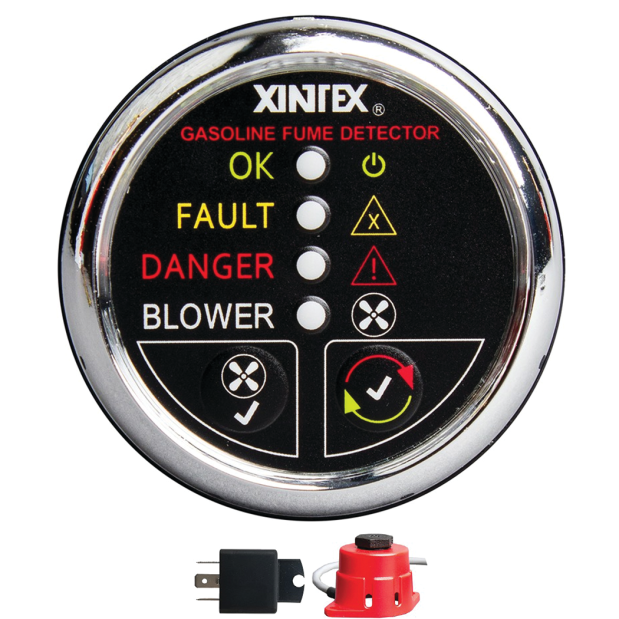

Gasoline Fume Detector - w/Alarm & Blower Control

The G-1BB-R and G-1CB-R Gasoline Fume Detectors are an effective means to detect the presence of gasoline fumes in an engine compartment, from leaking fuel tanks, or fumes from un-burned hydrocarbons emitted from faulty exhaust systems.
In addition, these particular detectors include an optional circuit to automatically actuate your Bilge Blower to purge the engine space of fumes.

The systems use a sensor, located in a strategic location, and a display module with a loud alarm that notifies you of the state of the system.

The G-1BB/1CB is a single-channel gasoline fume detector with a new style FS-T01 plug-in sensor.
It features an optional 2 amp relay switch to automatically start a bilge blower fan when fumes are detected.
Detects fuel leaks early so they can be corrected by the vessel operator, thus preventing personal injury and possible fire or explosions.

• 2-3/16" (56 mm) round display with LEDs & silence/test button
• 68 dBA alarm will sound and red LED will light at 20% of the LEL (Lower Explosive Limit)
• Operates on 9-30V DC (nominal 12V/24V)
• Operating temperatures: -40° F to 185° F

Includes:
• Gasoline detector module/display with Alarm
• Plastic fuel sensor
• 20 ft sensor extension cable
• 30 amp relay (@12 VDC)
• User Manual

NOTE – Gasoline fume detectors are meant to serve only as a supplemental warning system. They do not correct the fault situation, nor are they meant to replace standard safety practices which should always be carried out around explosive gases.

Note – the "-R" at the end of the part number indicates the product comes in retail packaging.
