Combination Smoke/Heat Detector - w/o Base

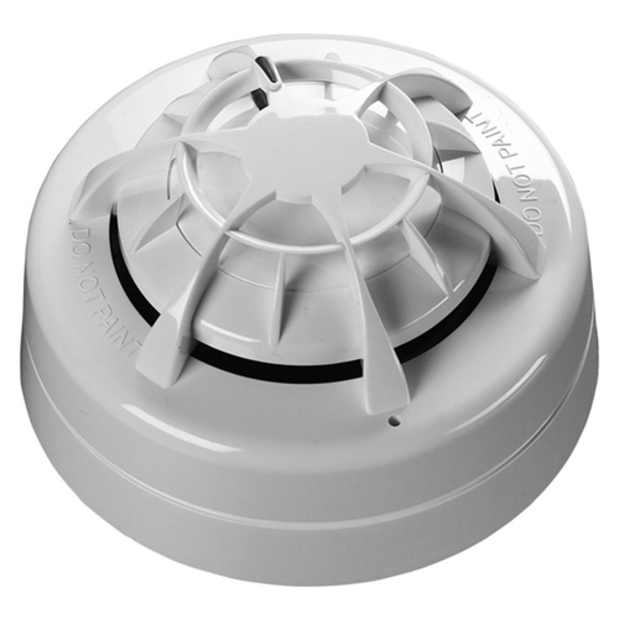

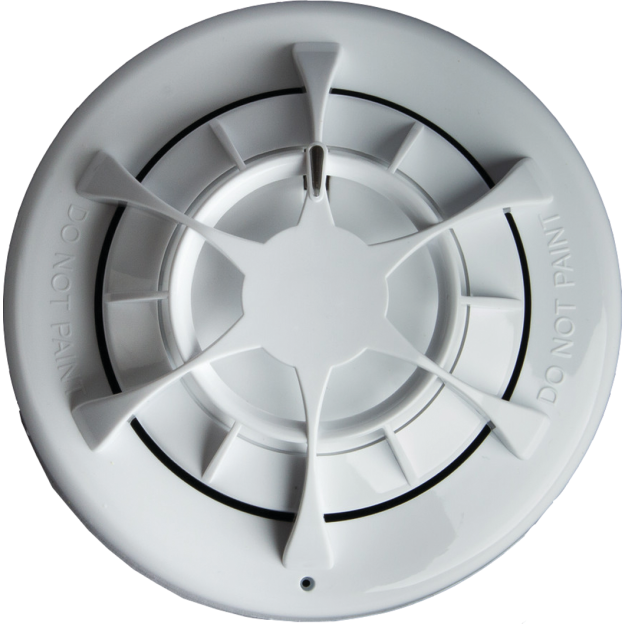

This Orbis Combination Marine Optical* Smoke and Heat Detector operates on the same well established light scatter principle as their Optical Smoke Alarm, but with the addition of a heat sensing element. The sensing technology is radically different in design from previous optical detectors and significantly reduces false alarms.
It is a thermally enhanced smoke detector, so it will not give an alarm from heat alone.
Heat detector function is triggered at an ambient temperature of 135°F.
Removes the likelihood of a detector producing an alarm as a result of smoke from a non-fire source

This detector is designed for marine, RV, residential and institutional applications, including sleeping quarters and other occupied spaces.

• Recommended for use as general-purpose smoke detectors for early warning of fires in most areas
• Suitable for residential spaces
• Early detection of slow burning, smoldering fires
• Reduced false alarms
• Increased reliability of detection
• Responds to a wide spectrum of fires – both fast and slow buring
• Works well in black as well as in white smoke
• Responds to stationary flames that don't flicker
• Sensitive to UV radiation emitted by flames during combustion
• Sensing chamber keeps out dust and other airborne contaminants
• Operates over a broad range of voltages at extremes of temperature
• Sampling Frequency: Once every four seconds
• Operating Voltage: 8.5 V DC to 33 V DC
• Supply Wiring: Two wire supply, polarity sensitive
• Use with the OMDB-01 Base - sold separately. See Related Products

Mounting base is sold separately. Use OMDB-01/02 Base. See Related Products.

NOTE — These detectors are not standalone units.
They need to be connected to either the Fireboy FBD-2 or FBD-MZ Fire Detection Panels. There is no audible alarm on these detectors (panel will audibly alarm) and no visual alarm.


* Optical (photoelectric) smoke detectors are generally preferred over traditional ionization smoke detectors because they are more sensitive to smoldering fires, which produce more smoke and are more common in boats, RVs and homes. They are also less prone to false alarms from cooking fumes or steam.
