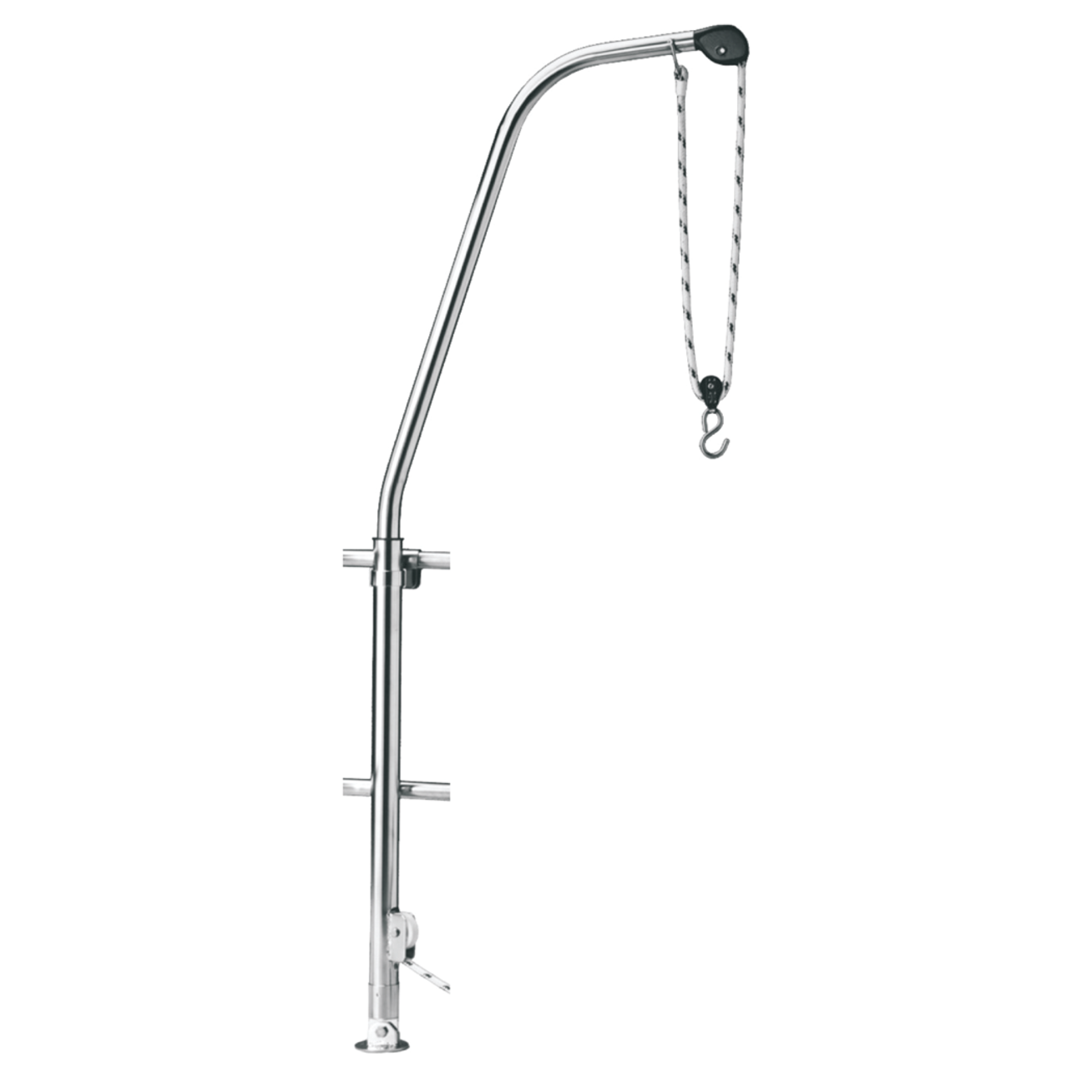

Designed to handle the task of loading and unloading heavy stores and equipment, Forespar's® Nova Lift combines elegant styling with superb strength and function.
This patented lift uses an internal purchase system to keep the lifting arm centered over the load. Other brands swing left and right without control.
Another popular feature is the internal winch lead - affording ample lifting power to make the job easy! No external block & tackle.
The big brother to Forespar's Motor Mate, the Nova Lift™ has a lifting capacity of 220 pounds.
The Nova Lift is available with or without a winch mounted on the lower tube.
This entry is the "No Winch" model — it is ideal for sailboats where you can save some money by utilizing winches you already own to do the lifting.

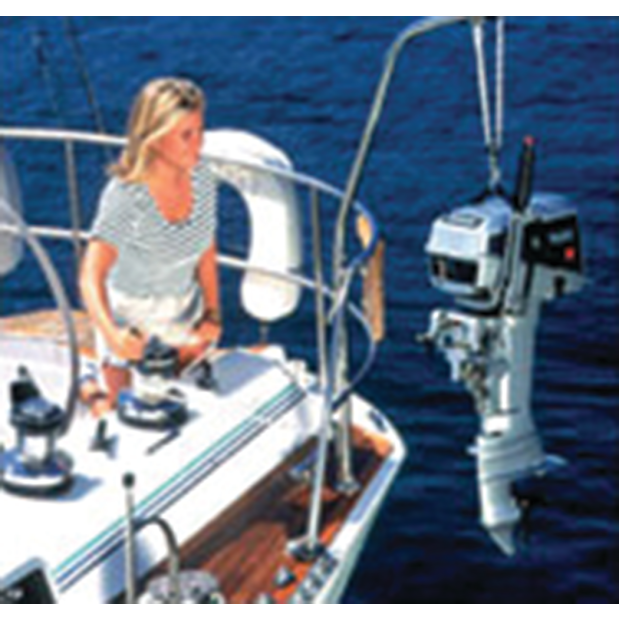

No more excuses for not stowing your valuable outboard onboard at night — the Nova Lift makes it fast and easy!
Watch this informative 2 minute video demonstrating how easy it is to use the Nova Lift.
• Easily deployed or removed for stowage in just seconds!
• 220 lb maximum load
• 20" reach
• Overall height 52" (removeable for storage)
• Electro-polished stainless steel tubing, quality sheaves, and carefully machined parts make this a quality unit
The Nova Lift (which comes in two pieces) has a separate stainless steel lower mounting tube that will accommodate up to 30" rail heights.
Vessels with rails higher than 30" will require the use of a customer supplied deck pad to raise the installation to the proper height.
The Nova Lift comes with a support clamp for mounting on 1" tubing. An accessory kit (#153387) is available for mounting to 1-1/4" tubing; see Accessory Products, below.
Also, an optional extra length Stand-Off Mount (#153358) is available should you need to mount your Nova Lift up to 5" away from your railing or pulpit due to objects in the way; see Accessory Products, below.
Click here for additional information about the Nova Lift, and here to see the Installation Manual.
