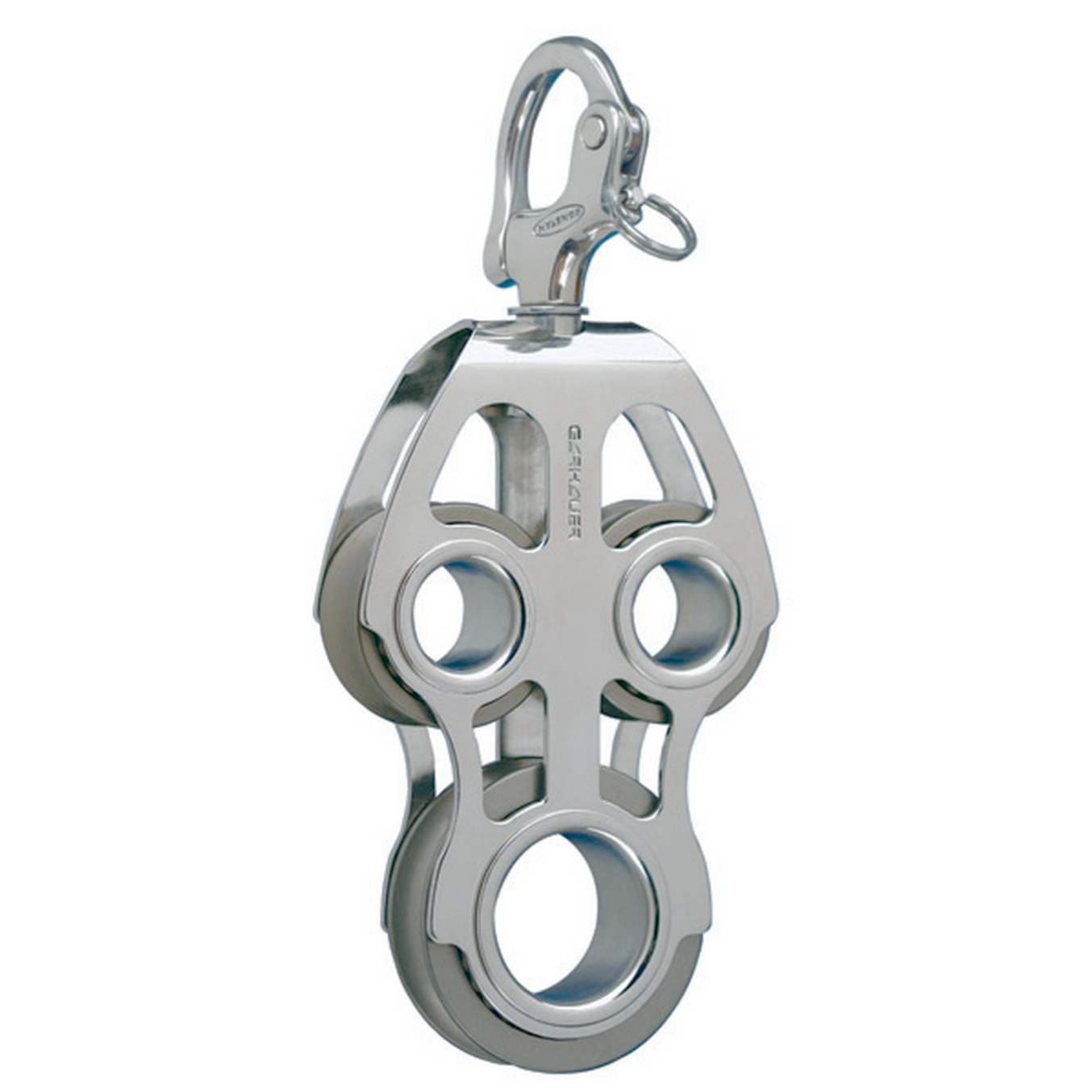

64 mm Series 40 SS Fiddle Block - Snap Shackle
64 mm Series 40 Stainless Fiddle Block - Snap Shackle
SKU: 148978 Item ID: GRH 40-03US
- Polished stainless steel
- Corrosion resistant
- High strength, low weight
Description
Eliminating screws and rivets, these unibody blocks are precision machined from a solid piece of stainless, folded in half and then assembled using non-conductive Delrin on all mating surfaces. Every block now has built-in adjustment that allows the shackle to swivel or lock with a simple set screw. Fiddle blocks are often used with mainsheets or for rope boom vangs.
• Effortless rotation is assured with Torlon ball bearing construction
• High strength, low weight
• Corrosion resistant
Specifications
MFG #:40-03US
Weight
19 oz. (539g)
Max. Line
1/2" (12.5mm)
Sheave Dia.
2-1/2" (63.5mm)
SWL
2,800 lbs. (1,270kg)
Length
9-1/2" (241mm)
Width
3-7/8" (98.5mm)
