Description

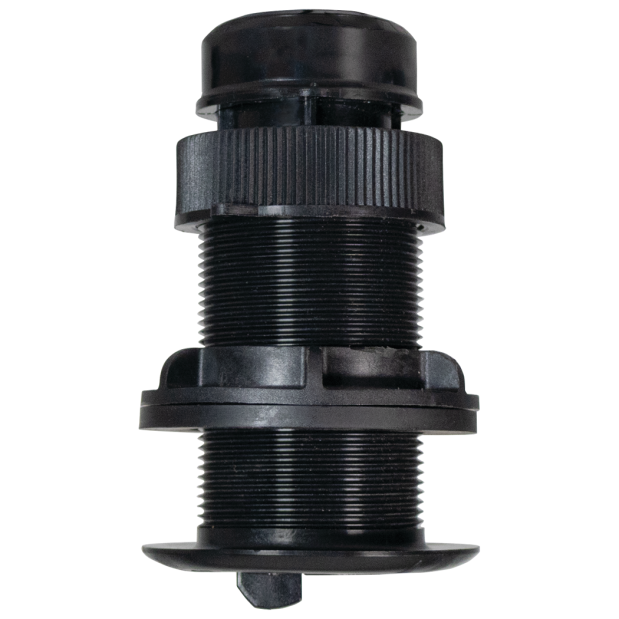

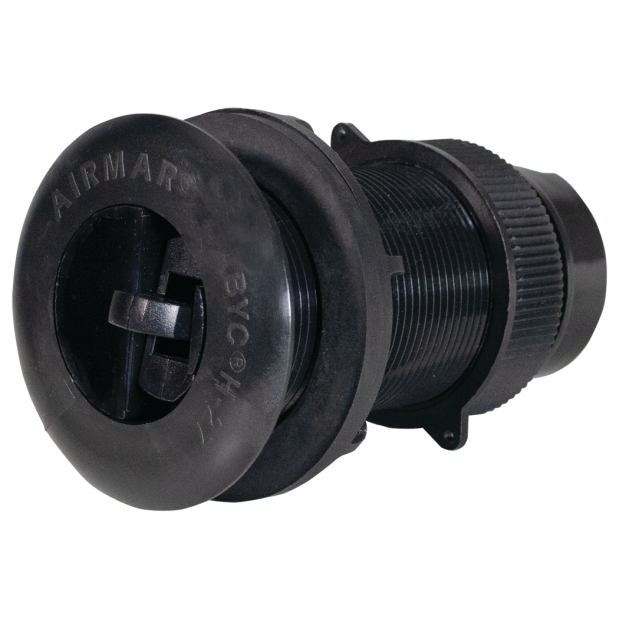

This plastic thru-hull NMEA 2000® smart transducer offers precise depth, speed, and temperature signals, as well as attitude sensing for heel/trim and pitch/roll data. It is capable of reading depths up to 330 feet and provides a fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays. With wireless Bluetooth® connectivity, users can easily manage the calibration of sensor data through the AIRMAR Cast™ app interface.
Additionally, the transducer operates at a frequency of 235 kHz to help prevent mutual interference with other echosounder devices on the vessel. Its wide, fan-shaped beamwidth of 10 x 44 degrees allows it to effectively find the bottom, even when installed on steep deadrise hulls or heeling sailboats.
• Transducer Frequency:235 kHz
• Transducer Power:100 W
• Transducer Beamwidth:10 x 44 degrees
• Transducer Maximum depth:330 ft
• Transducer Measurement: Depth, Temperature and Speed
• Transducer Number of Pins: NMEA 2000
• Transducer Supported Deadrise/Transom Angles: 0 to 22 degrees
