Description

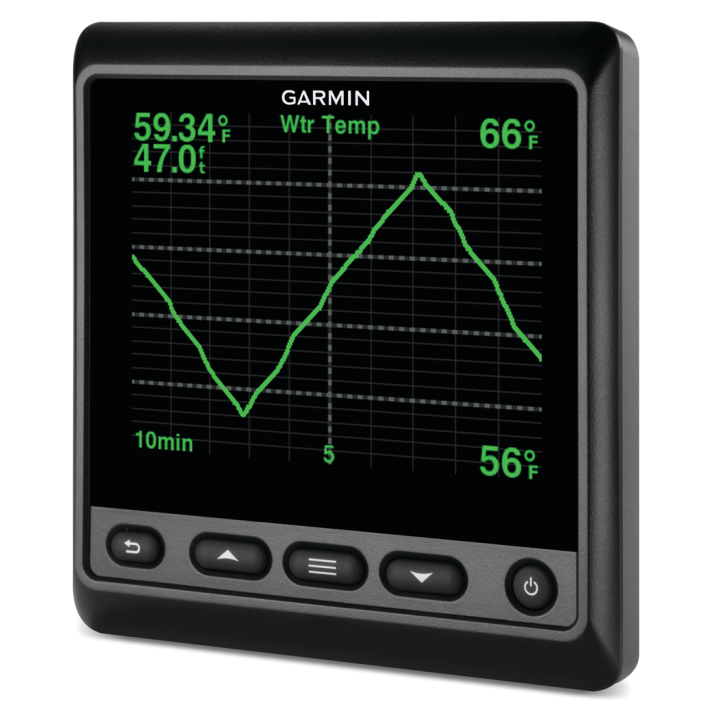

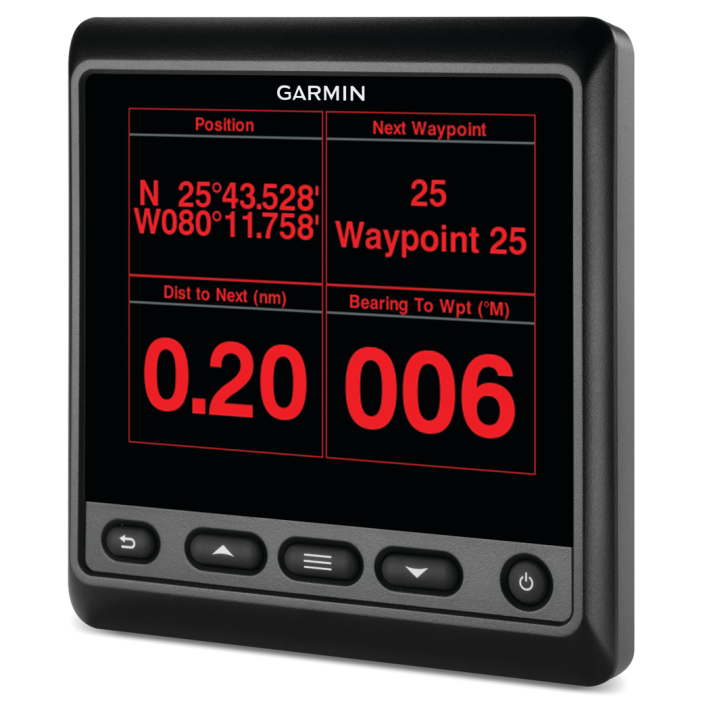

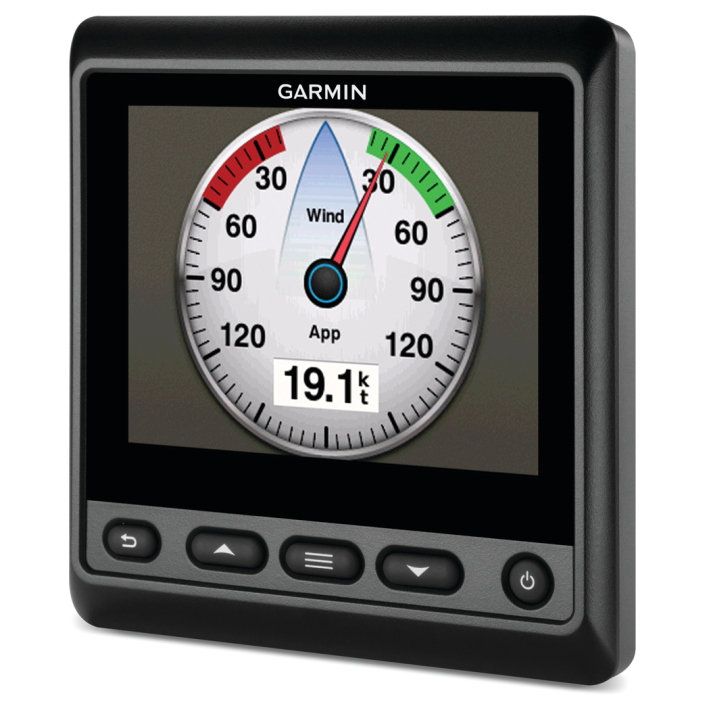

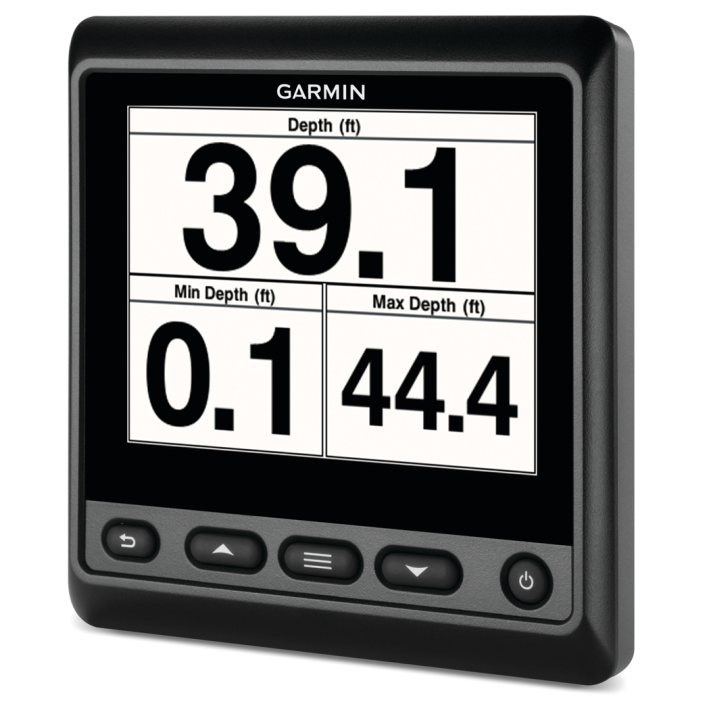

The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4" color display with extra large digits is easy to read at a distance and 170 degree viewing angle.
Set Sail with Ease
A glass-bonded finish lens on the GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast color scheme.
For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control.
Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel.
Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.
In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.
Two Options
When selecting your GMI, there are 2 bundled versions to pick from: one includes a GWS™ 10 wind transducer and the other, a DST800 thru-hull smart transducer and GWS 10 transducer. The wind transducer records speed and direction, air temperature and barometric pressure. The thru-hull records water depth, water temperature and boat speed.
• Display size, WxH 4" diagonal
• resolution, WxH 320 x 240 pixels
• Physical dimensions 4.33" x 4.53" x 1.18"
• Voltage range 9-16 V (from NMEA 2000)
• Water rating IPX7
• Weight 8.71 oz
• Mounting options Flat or Flush
• Display type Color QVGA display
What's In the Box
• GMI 20
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Documentation
The basics of NMEA Networking —
Although the following video refers to the now discontinued Garmin GMI10 Instrument Display (replaced by the GMI 20)... it is a great little 4 minute video illustrating the do-it-yourself ease and simplicity of creating a "plug-'n-play" NMEA 2000 Network for displaying the data provided by installed sensors - depth, speed, wind, fuel, etc. - on your chartplotter or other network compatible display, in this case the GMI 20 Instrument Display.
