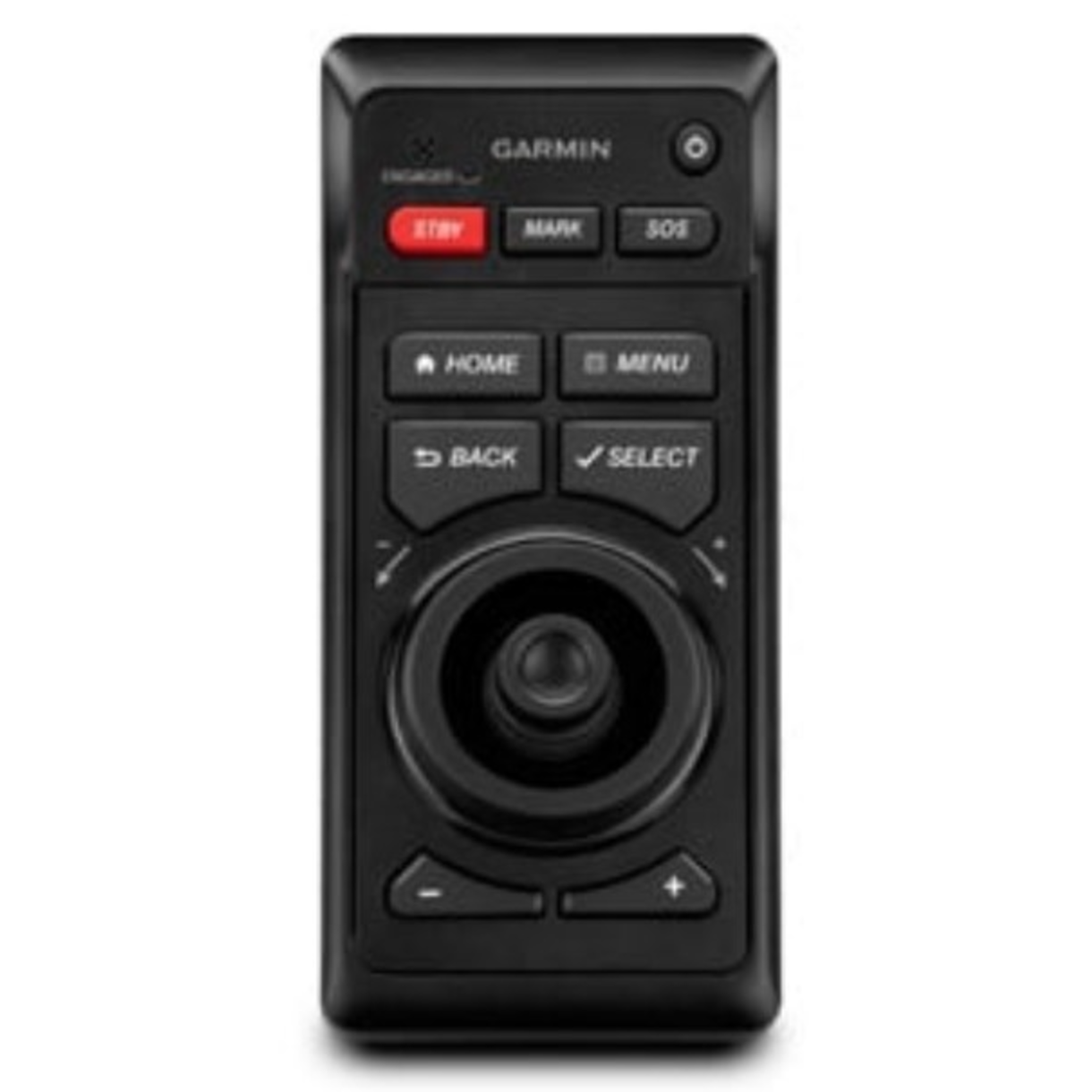

GRID - Garmin Remote Input Device

This Garmin remote input device provides full control of your compatible chartplotter. Rotary knob and joystick controls provide navigation through menus and screens and allows you to seamlessly navigate between monitors at a station - all while controlling single or multiple compatible monitors and multifunctional displays (MFDs) with 1 device. GRID can be integrated into a captain’s chair for a low-profile controlling solution.

• Dimensions (W×H×D): 3 1/16" x 6 7/8" x 2 3/8" (77 x 174.8 x 60 mm)
• Weight: 9.1 oz. (258 g)
• Temperature range: From 5° to 158°F (from -15° to 70°C)
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 10-35V DC
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.8 W
• Typical current draw at 12 Vdc: 100 mA
• Maximum current draw at 12 Vdc: 280 mA
• Compass-safe distance: 14" (356 mm)

Includes: GRID (Garmin Remote Input Device), mounting hardware, power cable, 6 ft network cable and documentation.
