Description

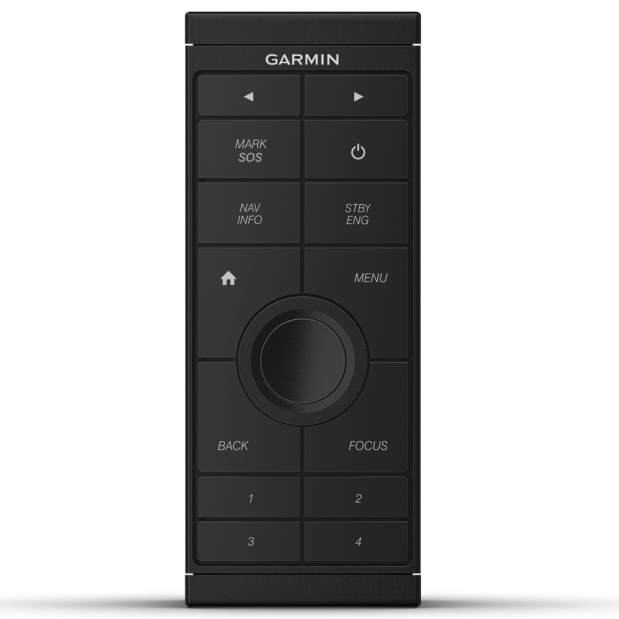

The GRID 20 remote input device is designed for easy use, providing seamless remote access and control of your entire Garmin marine system. Equipped with a 360-degree joystick, rotary knob, and push-to-select button, it allows for effortless chartplotter menu/setting navigation and precise control, even in challenging conditions. You have the option to assign 4 favorite keys to quickly restore your system to a previously saved configuration. Additionally, there are various hard keys for instant access to key functions such as screen switches, autopilot standby/engage, and more. For added peace of mind, there is a dedicated SOS key. Whether you prefer wired or wireless installation, and vertical or horizontal orientation, the GRID 20 offers a customizable plug-and-play solution tailored to your marine system. Its compact design enables easy integration into a busy helm between displays or even into the arm of the captain’s chair.
• Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
• 360-degree, all-in-one joystick with a rotary knob and push-to-select button
• Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
• 4 favorite keys can be designated to restore your system to a previously saved configuration
• Allows wired or wireless installation options
• Dimensions (W×H×D): 5.6" x 2.2" x 2.7"
• Weight: 6.3 oz
• Temperature range: From 5° to 158°F (from -15° to 70°C)
• Material: Fully gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5” (114 mm)
Power input:
• NMEA 2000
-or-
• Wired power (with included power cable):
• Input power: 9-32 V dc
• Fuse: 1.0 Amp, Fast Blow
• Maximum power usage at 9 V dc: 1.5 W
• Typical current draw at 12 V dc: 40 mA
• Maximum current draw at 12 V dc: 120 mA
-or-
• 2x AA battery powered (not included)
