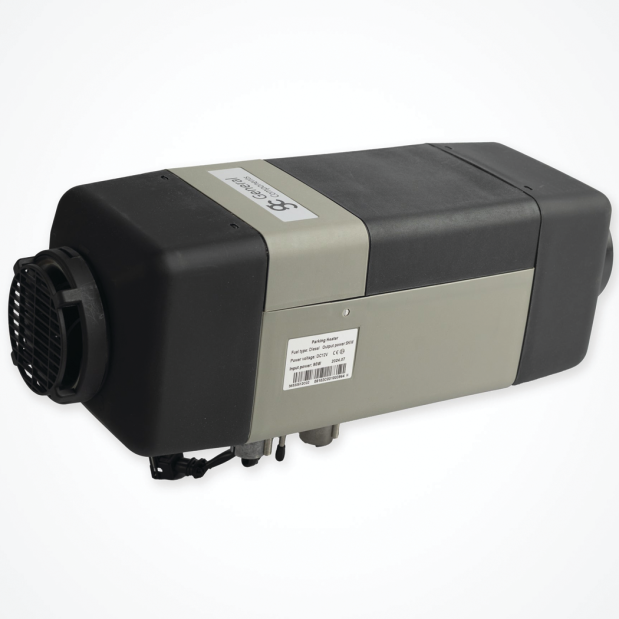

Bison 5000A Forced Air Diesel Heater

The Bison 5000A provides 5kW (17,000 BTU) of robust, no-idle heating suitable for larger commercial vehicles, RVs, and marine vessels.

It is compatible with diesel/kerosene or gasoline and is offered in 12V, making it a fuel-efficient and environmentally friendly option for challenging conditions.

The automatic altitude adjustment feature ensures dependable performance at elevations of up to 3000 meters.

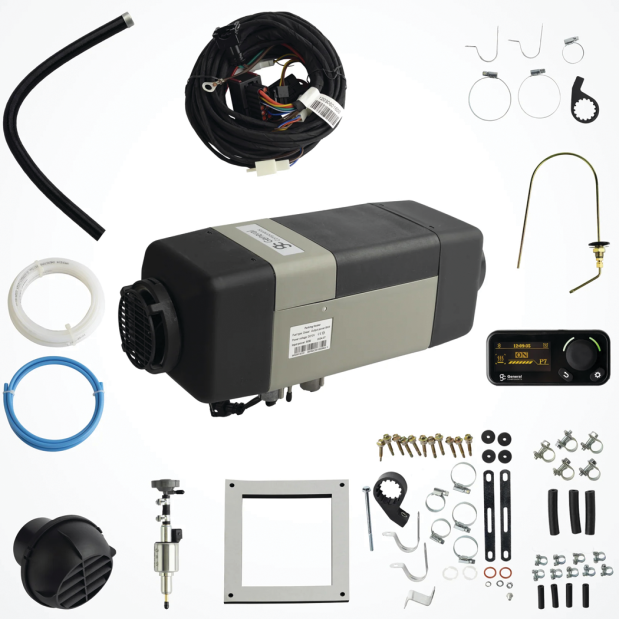

The complete kit comes with a pre-assembled wiring harness, fuel lines, multi-outlet ducting, a mounting plate, and all essential hardware for quick and reliable installation.

• High-Performance Heating: Delivers a powerful 5kW (17,000 BTU) forced air heating capacity for large vehicles and vessels.
• Altitude Adaptation: Automatically adjusts for optimal performance at elevations up to 5000 meters.
• Quiet and Efficient: Engineered to provide robust heat with minimal noise, ensuring comfort without disruption.
• Versatile Fuel Compatibility: Operates with diesel/kerosene or gasoline fuels, available in 12V configuration.
• Comprehensive Installation Kit: Includes all essential components and hardware for a smooth and quick installation.
• Eco-Friendly Operation: No-idle functionality reduces fuel consumption, contributing to a greener environment.
• Durable Construction: Built to withstand the toughest conditions, offering dependable performance in all settings.

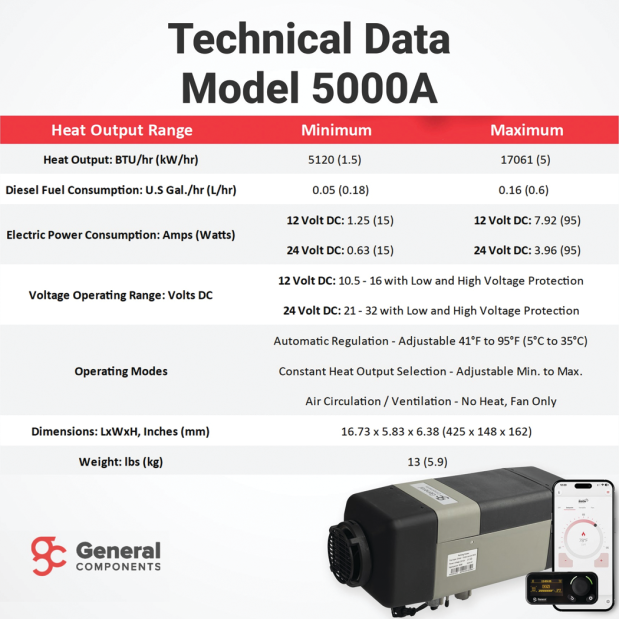

• Heat Output: BTU/hr (kW/hr) 8189(2.4) – 17061(5)
• Diesel Fuel Consumption: U.S Gal./hr (L/hr) 0.07(0.27) – 0.16(0.62)
• Electric Power Consumption: Amps (Watts) @12VDC 1.25 (15 ) – 7.92 (95)
• Electric Power Consumption: Amps (Watts) @24VDC 0.63 (15 ) – 3.96 (95)
• Voltage Operating Range: Volts DC (for 12V models) 10.5 – 16 with Low and High Voltage Protecton
• Voltage Operating Range: Volts DC (for 24V models) 21 – 32 with Low and High Voltage Protecton
• Operating Modes Automatic Regulation – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection Air
• Circulation / Ventilation

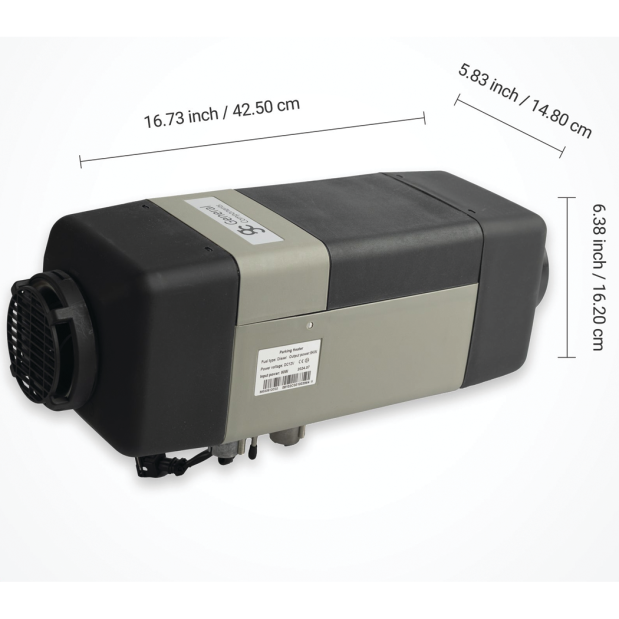

• Dimensions: LxWxH, Inches (mm) 16.73 x 5.83 x 6.38 (425 x 148 x 162)
