Cablemaster Installation - Coil Spring Extension (30 Amp Cord) - 36" Vertical (Requires 50423 Bracket x 2)
Cablemaster Systems have optional coil or tubing extensions, mounting brackets, and cable extension kits available to help extend the reach of the Cablemaster in the event the cable Power Unit needs to be placed at some distance from the Hawse Pipe Assembly inlet/outlet.

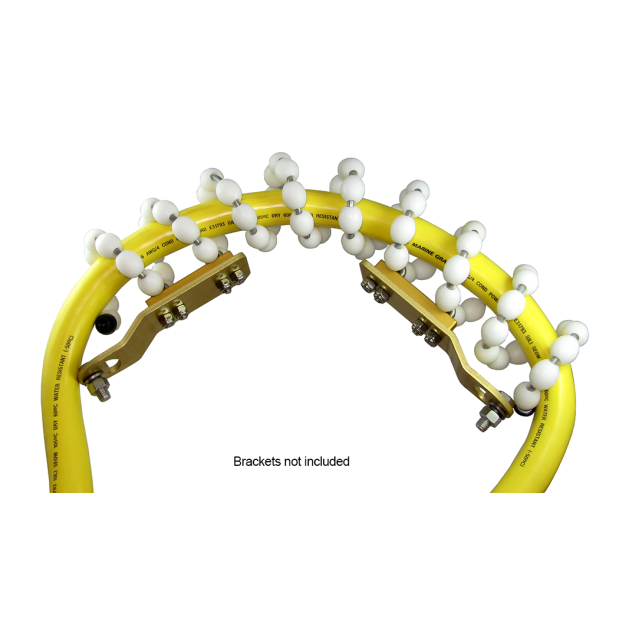

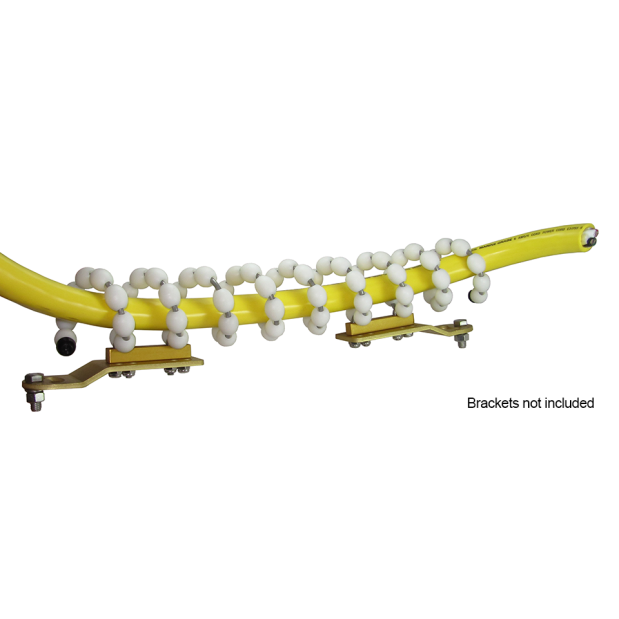

Coil Spring Extensions are slinky-like devices which allow custom routing of the cable around obstructions, when a straight, rigid tube cannot be used.
Coil extensions require a GLE 50423 mounting bracket at each end (sold separately)
Although they are available in longer lengths, the maximum recommended coil spring length 36".
Coil Spring Extensions are available for 16/30/32 amp (04075-30-XX) and 50/63 amp (04075-50-XX) applications only.
• Used when compound bends are required in tight spaces

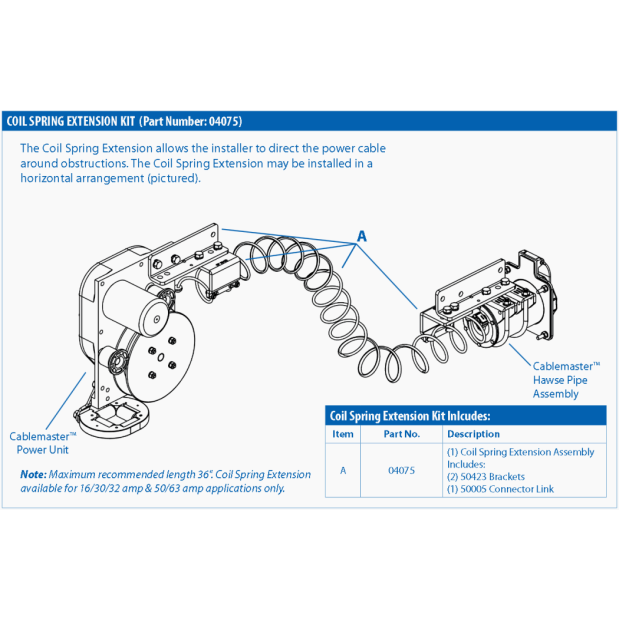

• Coil Spring Extensions may be installed horizontally between the Hawse Pipe Inlet/Outlet and the Cablemaster Power Unit (shown)
• Coil Spring Extensions may be installed vertically between the between the Power Unit and the Cable Storage area when the storage area is directly below the Power Unit
• Available in 18", 24", 30" and 36" lengths
• Coil guide must be straight for a short distance both where the cable leaves the hawse pipe and also where the cable enters the power unit, otherwise the power cord can bind
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govSelected | SKU # | MFG # | Availability | Power Cord Amperage | Installation Orientation | Coil Length | Price | Quantity | |
---|---|---|---|---|---|---|---|---|---|
SKU #: 202188 | MFG #: 04075-30-36V | Special Order Only | 30 Amp | Vertical | 36" | $205.92 | |||
SKU #: 174960 | MFG #: 04075-50-18 | Special Order Only | 50 Amp | Horizontal | 18" | $134.98 | |||

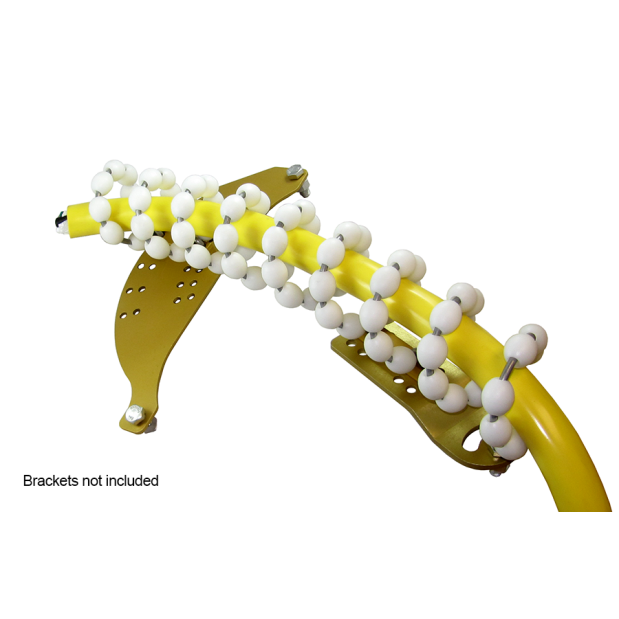

SKU #: 174961 | MFG #: 04075-50-18V | Special Order Only | 50 Amp | Vertical | 18" | $130.42 | |||
SKU #: 174962 | MFG #: 04075-50-36H | Special Order Only | 50 Amp | Horizontal | 36" | $240.24 | |||
SKU #: 174963 | MFG #: 04075-50-36 | Special Order Only | 50 Amp | Vertical | 36" | $248.65 |
