12V 1-1/2IN HYDROMATIC STRAINER
Raw Water Strainers
Share THIS PAGE:

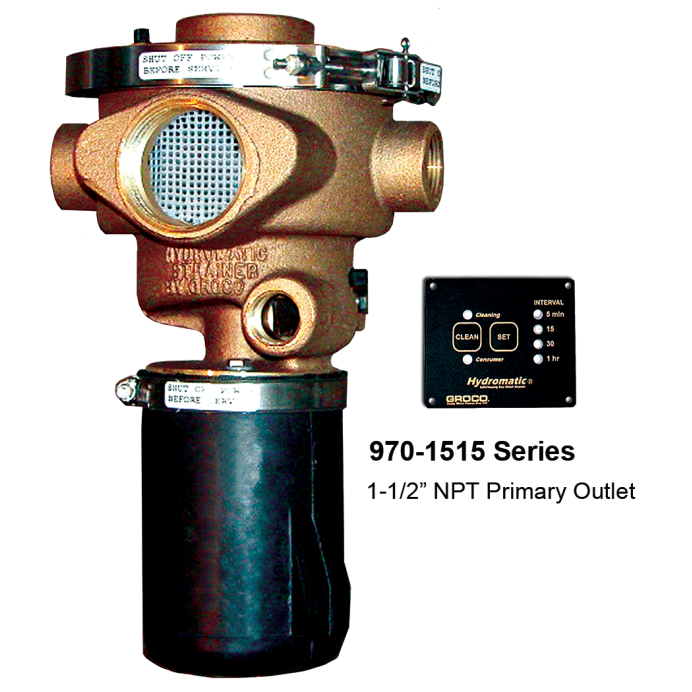

970-1515 Series Hydromatic Electric Self-Cleaing Raw Water Strainers

1-1/2" Inlet - Options For Up to 3 Filtered Outlet Ports • 12V and 24V Models • Eliminates Emergency System Shut-Downs
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The Hydromatic strainer eliminates the nuisance of unwanted and untimely system shut-downs due to strainer clogging from seaweed, jellyfish, etc. It incorporates a powerful electric macerator pump which periodically cleans and flushes the strainer without the nedd to shut down connected devices. A remote control panel is included.

One large inlet and 1 large outlet, plus 2 smaller outlets...
The Hydromatic 970-1515 strainer can function as a sea-chest — replacing multiple seacocks, traditional strainers, thru-hull fittings and related plumbing. This can markedly reduce the cost and complexity of new or retrofit installations.
It has a single large 1-1/2" NPT inlet port at the top and a large 1-1/2" NPT outlet port to supply a large consumer (a main engine, for example). It also has 2 additional 1" NPT outlets for a genset, AC, etc. on the sides. Simply secure any outlets which are not used with pipe plug fittings.

• 30-second filter basket cleaning cycle is automatically performed at intervals selected by the user (remote panel included); option for manual override
• Integrated macerator pump grinds and discharges accumulated debris overboard via a separate, dedicated 3/4" NPT outlet port near the motor (debris is typically discharged below the waterline)
• "Ignition Protected" DC permanent magnet motor is submersible
• AC models are available by special order; please inquire at 800-426-6930
• Installation can be horizontal or vertical (flooded inlet required)
• Cast bronze strainer body
• All ports are NPT threaded

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
141411GRO 970-1515-12 970-1515-12Loading...12V Hydromatic 970-1515 Self-Cleaing Strainer - 1-1/2" Inlet and 3 Filtered Outlets; 13.2" Tall, Plastic BasketLoading...
131116GRO 970-1515-24 970-1515-24Loading...24V Hydromatic 970-1515 Self-Cleaing Strainer - 1-1/2" Inlet and 3 Filtered Outlets; 13.2" Tall, Plastic BasketLoading...
