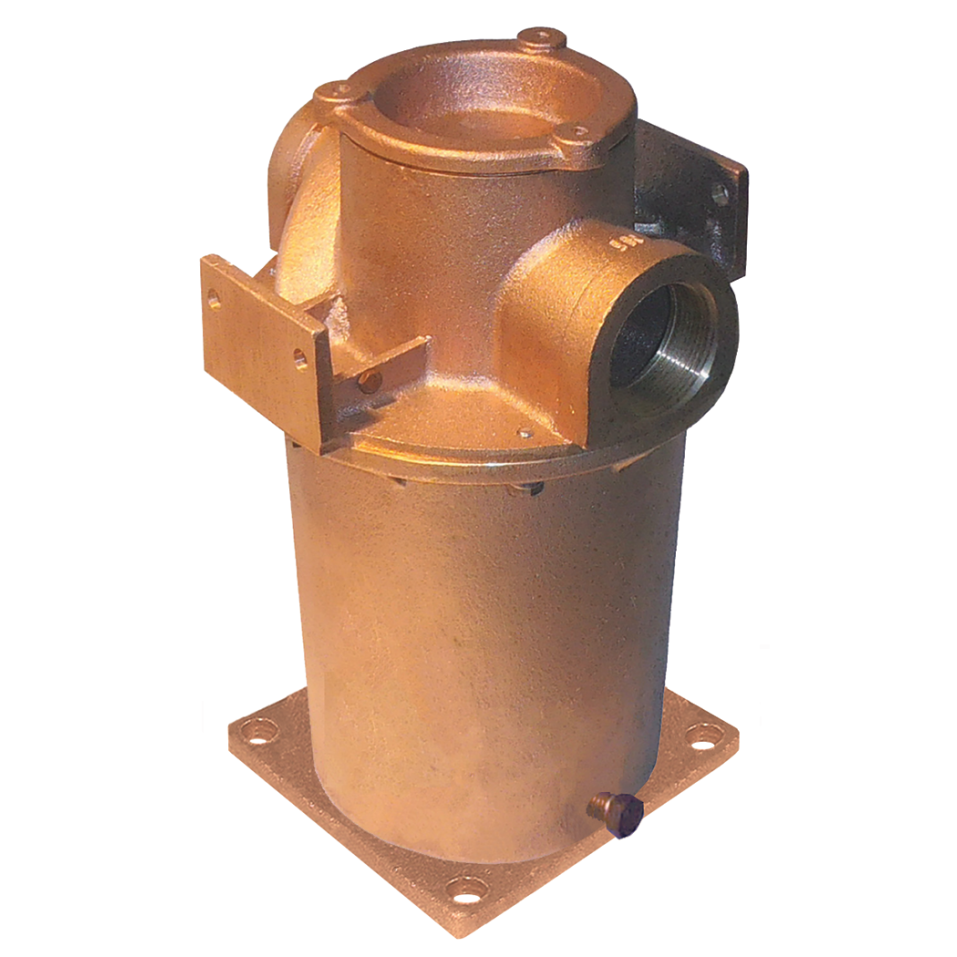

AARG Series All Bronze Raw Water Strainer
Description
Strong, metal enclosure complies with ABS standards for inspected vessels.
• All bronze construction
• Interchangeable with ARG models
• NPT threaded ports
• Simply unscrew top cover to service basket
• Drain plug at bottom for winterizing, etc.
• Mounting tabs allow strainer to face in either direction
• Additional mounting foot available for secure installation
• Bonding connection on both sides
• O-rings seal all joining surfaces
• Available filter basket options: 304 stainless steel (standard), Monel, or plastic
Specifications
MFG #:AARG-2500-S
| Port Size and Basket Material2-1/2" Female NPT - 304 Stainless Steel Basket
Ports
2-1/2" Female NPT
Weight
32.4 lb
Basket
304 Stainless Steel

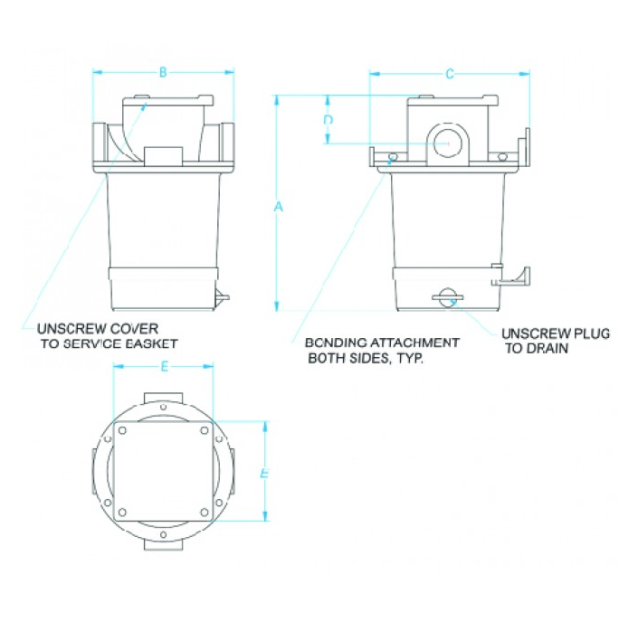

Height
17"
A
17"
B
7.3"
C
7.8"
D
3.1"
E
5"
Model
2500-S
Repl Poly Basket - Old
PS-85-J
Repl Poly Basket - New (After 1/1/16)
BP-11
Repl 304 SS Basket - Old
SS-85-J
Repl 304 SS Basket - New (After 1/1/16)
BS-11
Repl Monel Basket - Old
S-85-J
Repl Monel Basket - New (After 1/1/16)
BM-11
Open Screen Area/Pipe Area
11:1
Overall Dimensions
17"H x 7.3"W x 7.8"D
WARNING
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Port Size and Basket Material | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 429171 | MFG #: AARG-2500-S | Special Order Only | 2-1/2" Female NPT - 304 Stainless Steel Basket | $2,207.20 | |||
| SKU #: 429196 | MFG #: AARG-2500-P | Special Order Only | 2-1/2" Female NPT - Plastic Basket | $2,200.80 |
