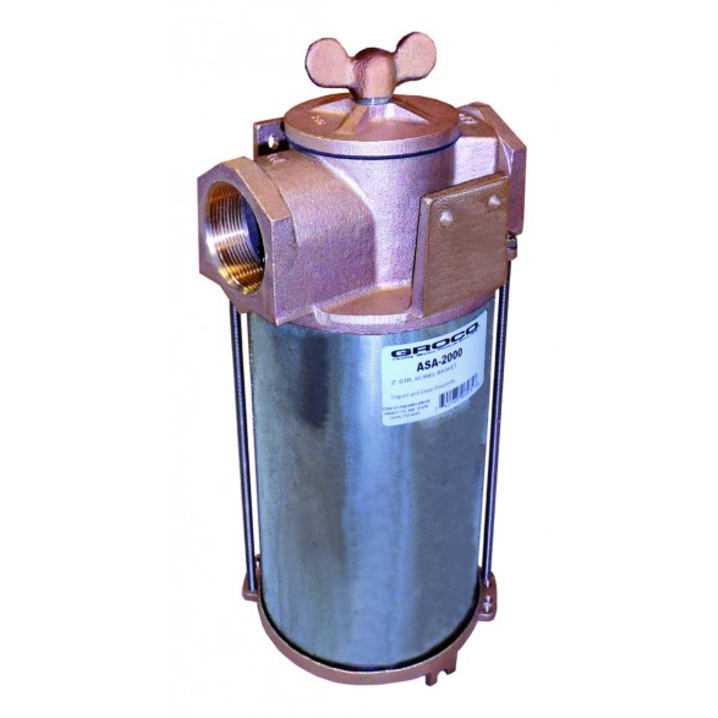

ASA Series Raw Water Strainer - with SS Enclosure
Description
Strong, metal enclosure complies with ABS standards for inspected vessels.
• Standard with #304 stainless steel filter basket. Monel is optional; inquire at 800-426-6930
• Monel inside tie rod
• Easy service with spin-off-wingnut
• Standard filter baskets are 40 mesh and have 0.077" holes; fine mesh basket (60 mesh) is available by special order
• Filter basket specifications: 0.077" diameter holes, 96 holes/in² & 45% open area
Specifications
MFG #:ASA-1500-S
| Pipe Size 1-1/2"
| BasketStainless
Basket
Stainless
NPT Pipe Size
1-1/2"
Ratio Screen Open Area to Pipe Size
20:1
Model
1500-S
Repl Poly Basket - Old
PS-85-G
Repl Poly Basket - New (After 1/1/16)
BP-6
Repl 304 SS Basket - New (After 1/1/16)
BS-6
Repl Monel Basket - New (After 1/1/16)
BM-6
Repl Monel Basket - Old
S-85-G
Repl 304 SS Basket - Old
SS-85-G
Height
13.75"
Weight
13 lb

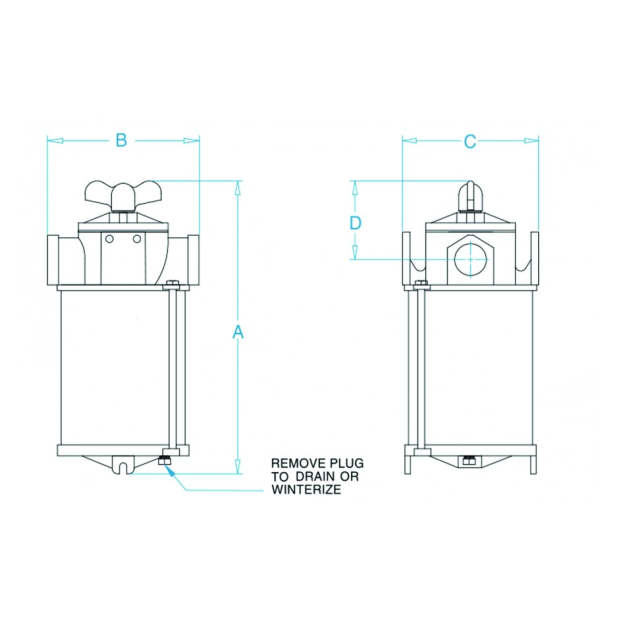

Overall Dimensions
13.8"H X 6.8"W X 6.3"D
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
742985141629
Product Options
| Selected | SKU # | MFG # | Availability | Pipe Size | Basket | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 211612 | MFG #: ASA-1500-S | Special Order Only | 1-1/2" | Stainless | $1,868.00 | |||
| SKU #: 211611 | MFG #: ASA-2000-S | Special Order Only | 2" | Stainless | $2,399.00 | |||
| SKU #: 390640 | MFG #: ASA-2000 | Special Order Only | 2" | Monel | $2,546.00 | |||
| SKU #: 394497 | MFG #: ASA-3000 | Special Order Only | 3" | Monel | $3,071.82 | |||
| SKU #: 430330 | MFG #: ASA-2500-S | Special Order Only | 2-1/2" | Stainless | $2,755.21 | |||
| SKU #: 432967 | MFG #: ASA-1500 | Special Order Only | 1-1/2" | Monel | $1,996.00 Each |
