- Fuel or Water Systems
Description

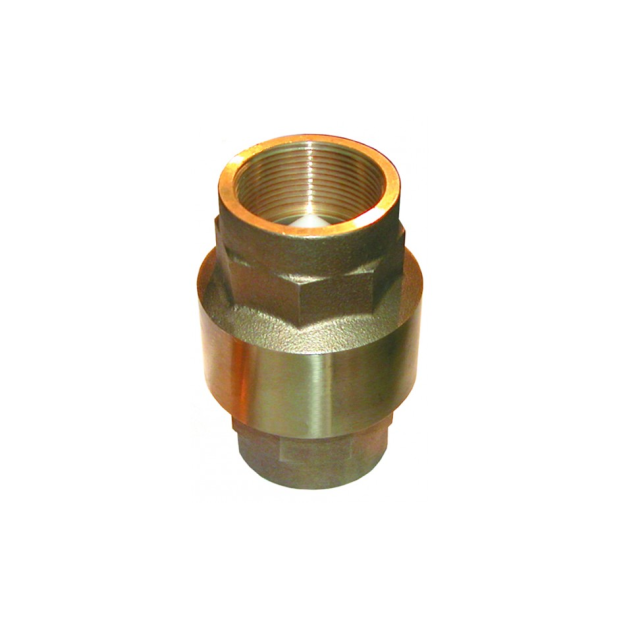

CV Series in-line check valve may be used in water systems or fuel systems to keep pumps primed and to prevent back-flow. The unique design reduces flow turbulence and restriction, thus improving pump performance.
Features:
• C83600 cast bronze construction.
• NPT threaded ports.
• 1/2" - 2" sizes.
• Suitable for use with diesel fuel or gasoline
Specifications
MFG #:CV-100
| Thread NPT1"

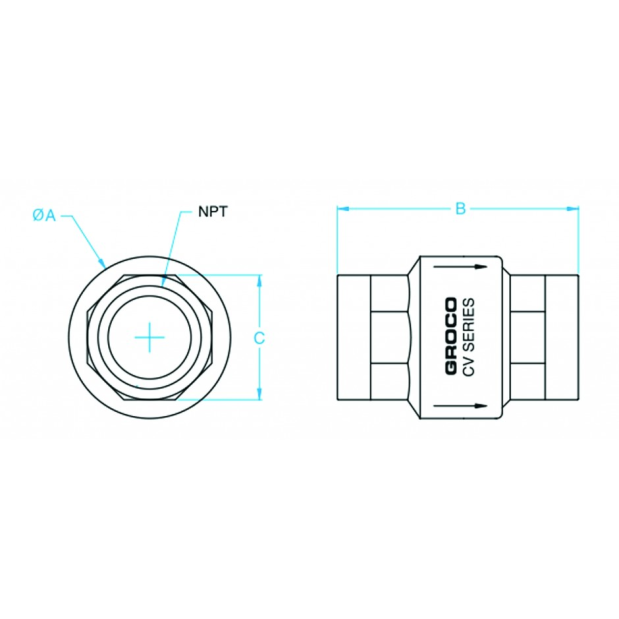

Inner Diameter (C)
1.45
Length (B)
3.3
Outer Diameter (A)
1.9
PSI to Open
0.19
Thread NPT
1"
Barcode
742985145955
WARNING
"Warning - This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more info go to www.P65Warnings.ca.gov "
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Thread NPT | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 217292 | MFG #: CV-75 | Out of Stock | 3/4" | $37.00 | |||
| SKU #: 428805 | MFG #: CV-50 | Special Order Only | 1/2" | $28.51 | |||
| SKU #: 436999 | MFG #: CV-100 | 3 In Stock Ships immediately | 1" | $44.59 | |||
| SKU #: 437000 | MFG #: CV-125 | Special Order Only | 1-1/4" | $83.72 | |||
| SKU #: 437001 | MFG #: CV-150 | Special Order Only | 1-1/2" | $122.51 | |||
| SKU #: 437002 | MFG #: CV-200 | 1 Remaining In Stock Ships immediately | 2" | $182.88 |
