Description
Six-port fuel valves are used where 2 tanks supply a single engine, and a return to each supply tank is required. ABYC H33.9.2 states that fuel system valves must have an independent means of support, so in-line valves are not suitable for fuel system applications.

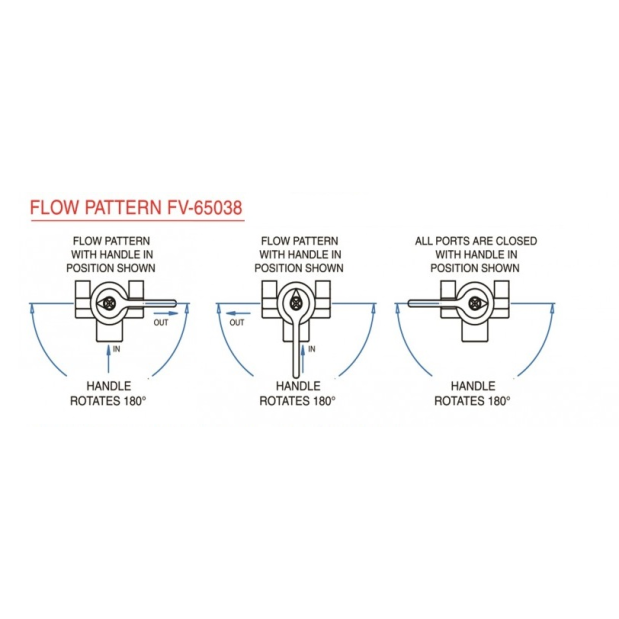

• "L" Flow Pattern
• Mount feet included.

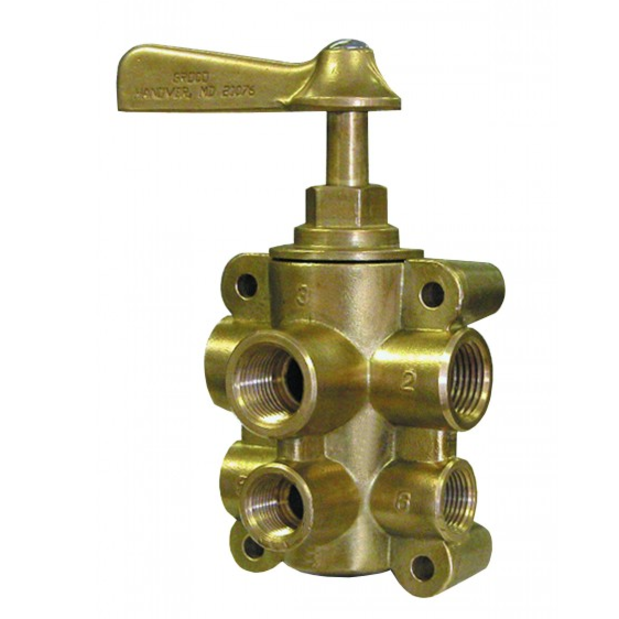

• C84400 bronze construction.
• Both 1/2" main / 3/8" return and 1" main / 3/4" return options available.
Specifications
MFG #:FV-65038
Main NPT
1/2"
Return NPT
3/8"

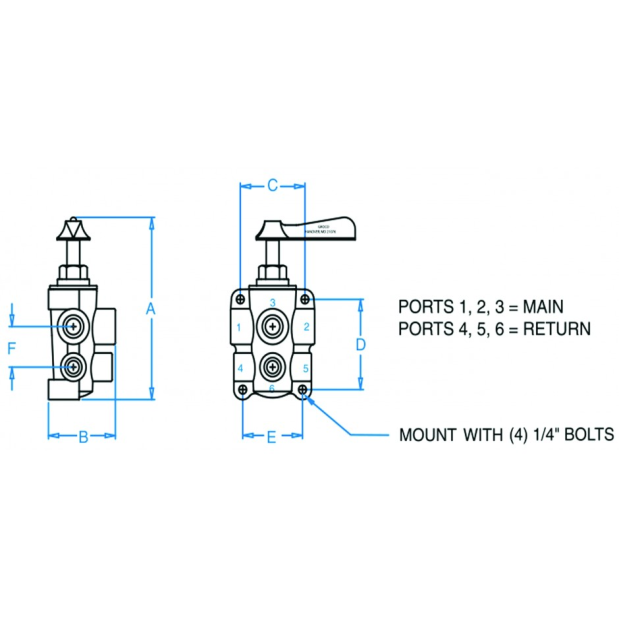

A
5.62
B
2.31
C
2.23
D
2.78
E
2.06
F
1.25
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
742985142886
