Winch- 60.3 Hydraulic Aluminum

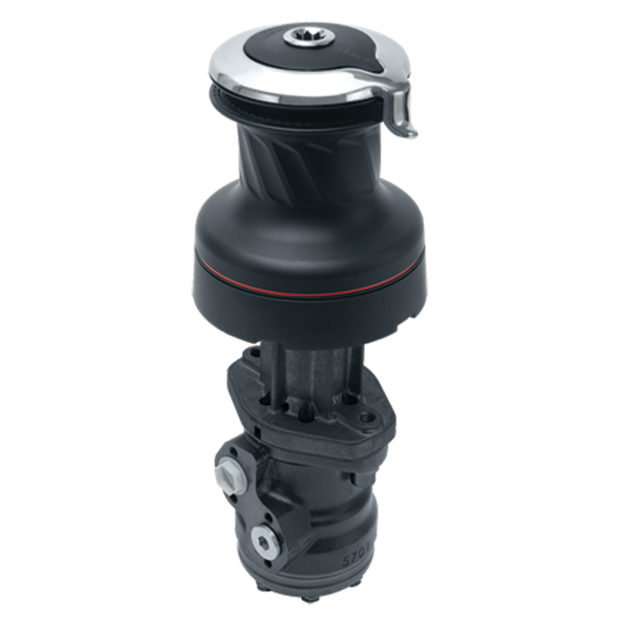

Hydraulic Radial® Self-Tailing Winches
Share THIS PAGE:

Hydraulic Radial Self-Tailing Winches - Aluminum Drums

Diagonal Ribs Increase Grip, Minimize Line Wear
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Hydraulic Radial winches let you trim any size sail with the push of a button. Winches mount vertically and operate using waterproof switches located near the winch. A locking handle inserted into an unloaded winch automatically disconnects the motor gear for manual operation.

Existing manual Radial winches can easily be converted to hydraulic power - they have identical hole patterns and don’t require an adapter plate. Harken hydraulic motors attach to the central driveshaft and drive through the winch transmission gears for multi-speed mechanical advantage - the low power first gear for fast trimming, the higher power second (or third) gear for fine-tuning loaded sheets. This allows use of a smaller, more efficient hydraulic motor that saves both weight and cost.

• Available with lightweight aluminum winch drums
• Each winch requires 2-3 windlass-style control switches (1st gear/2nd gear/3rd gear; sold separately), which can be used to control both the hydraulic pump and/or the valve to the winch - depending on the type of hydraulic power source
• All hydraulic fittings are industry standard for ease of installation and service
• Composite roller bearings reduce friction under load and don't require lubrication
• Load-carrying gears and pins are 17-4PH stainless steel for strength and durability
• Maximum hydraulic pressure is 120 bar (1740 psi); winch speed will vary with flow rate, optimal is 15 lpm (4 gpm)
• Table: Height and Line Entry are height above deck; Depth is extension below deck

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY
363388HAR 50.2STHA 50.2STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 50ST - Two Speed 4-5/16" Drum x 8-1/8" HighLoading...
363400HAR 60.2STHA 60.2STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 60ST - Two Speed 4-3/4" Drum x 9-11/16" HighLoading...
363412HAR 60.3STHA 60.3STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 60ST - Three Speed 4-3/4" Drum x 9-11/16" HighLoading...
363424HAR 70.2STHA 70.2STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 70ST - Two Speed 5-1/8" Drum x 10-1/16" HighLoading...
363436HAR 70.3STHA 70.3STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 70ST - Three Speed 5-1/8" Drum x 10-1/16" HighLoading...
363448HAR 80.2STHA 80.2STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 80ST - Two Speed 6-7/8" Drum x 12-9/16" HighLoading...
363460HAR 80.3STHA 80.3STHALoading...Aluminum Hydraulic Radial Self-Tailing Winches, 80ST - Three Speed 6-7/8" Drum x 12-9/16" HighLoading...
