Gizmos Double Through-Deck Bushings
Gizmos Double Through-Deck Bushings

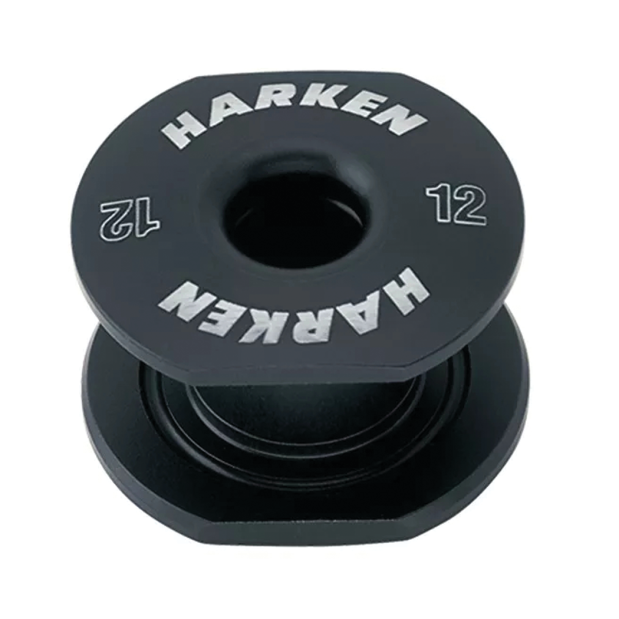

Gizmo 12 mm Double Through-Deck Bushing - 18-28 mm Deck
SKU: 1042631 Item ID: HAR 9073.1828
- Installing soft-attach loops
- Separation between lines
- Safeguard the line from wear
Description
Double-sided through-deck bushings are ideal for the installation of soft-attach loops, which serve to safeguard the line from wear and to provide separation between lines.
Specifications
MFG #:9073.1828
| Center Hole Ø12 mm
| Deck Thickness18 mm to 28 mm
Center Hole Ø (in)
0.472"
Center Hole Ø (mm)
12 mm
Drill Size (in)
7/8"
Drill Size (mm)
22 mm
Max Deck Thickness (in)
1.102"
Max Deck Thickness (mm)
28 mm
Min Deck Thickness (in)
0.709"
Min Deck Thickness (mm)
18 mm
Ø (in)
1.606"
Ø (mm)
40.8 mm
Shaft Outer Ø (in)
0.827"
Shaft Outer Ø (mm)
21 mm
Weight
1.1 oz
WL
3300 lb
Barcode
097653291947
WARNING
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Center Hole Ø | Deck Thickness | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 1042631 | MFG #: 9073.1828 | 3 In Stock Ships immediately | 12 mm | 18 mm to 28 mm | $97.05 | |||

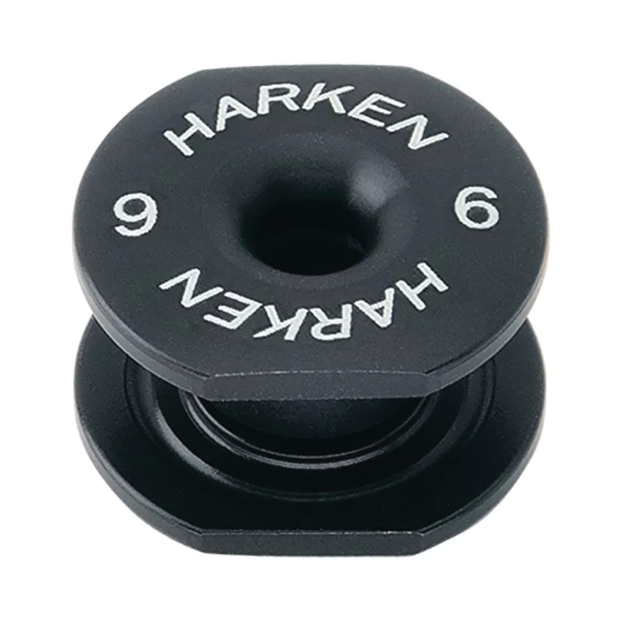

| SKU #: 1048965 | MFG #: 9070.0608 | 8 In Stock Ships immediately | 6 mm | 6 mm to 8 mm | $53.45 | |||

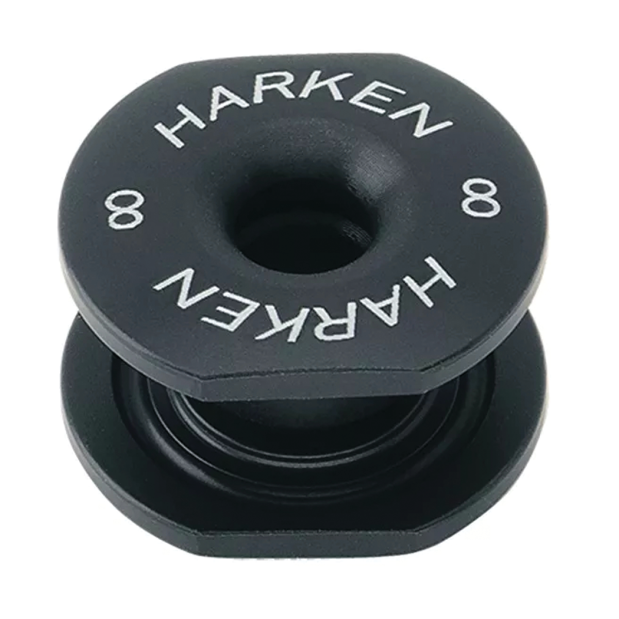

| SKU #: 1048967 | MFG #: 9071.0810 | 4 In Stock Ships immediately | 8 mm | 8 mm to 10 mm | $68.80 | |||

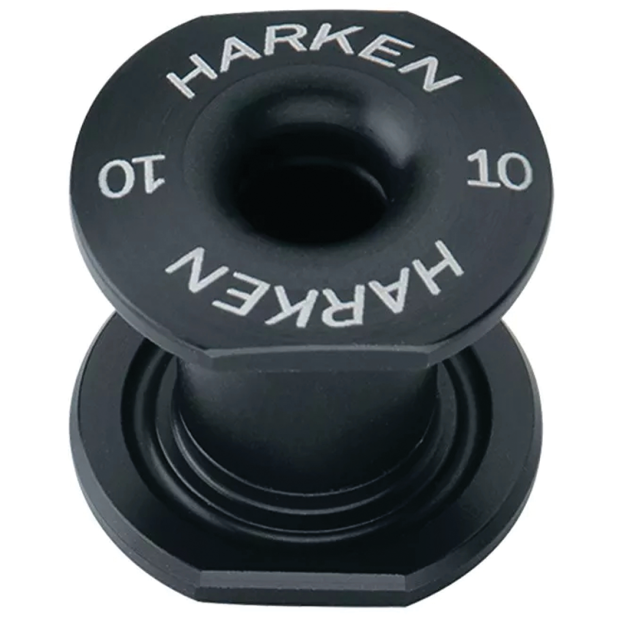

| SKU #: 1048980 | MFG #: 9072.1013 | 4 In Stock Ships immediately | 10 mm | 10 mm to 13 mm | $76.60 | |||
| SKU #: 1048981 | MFG #: 9071.1828 | 4 In Stock Ships immediately | 8 mm | 18 mm to 28 mm | $73.90 |
