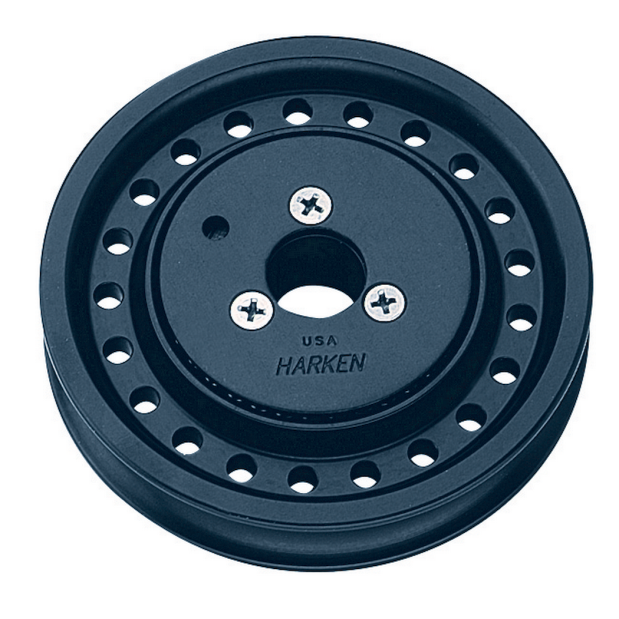

- Sheave diameter 102 mm (4")
- Sideload-carrying balls
- Teflon composite bushing
Description
High-load sheaves are offered as replacement parts or used on specific applications. Their bearing systems combine sideload-carrying balls with a Teflon® composite bushing to carry radial loads. While not as free-rolling as standard Harken ball/roller bearing sheaves, this compact bearing system is extremely durable, and perfect for carrying high loads in a restricted diameter.
• Used in masts, booms, deck organizers, through-the-transom running backstays
• High-load bearing system
• Narrow width
• Lightening holes
• Made of 6061-T6 aluminum
Specifications
MFG #:712
BL
14,515 kg (32,000 lbs)
Center Pin Dia.
17.6 mm (11/16")
Max. Line
12 mm (1/2")
Max. Wire
8 mm (5/16")
MWL
5443 kg (12,000 lbs)
Sheave Dia.
102 mm (4")
Type
High-Load
Weight
284 g (10 oz)
Width
22 mm (7/8")
Barcode
097653012092
