Hydraulic Cylinder Toggles
Hydraulic Cylinder Toggles

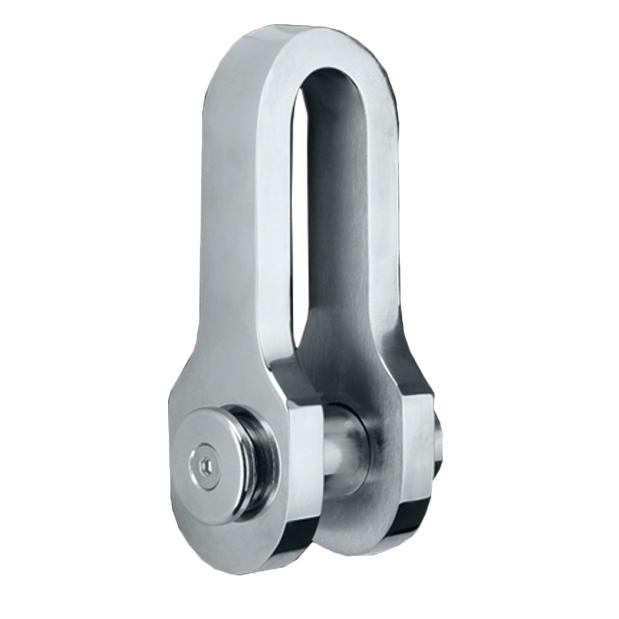

7/16" (11.1 mm) Eye-Jaw Toggle for Hydraulic Backstay Adjuster - 2.0" Length
SKU: 439396 Item ID: HAR HYHTEJS11
Description
Harken strongly recommends attaching a toggle to the lower clevis of hyraulic backstay adjusters, thus providing two axes of articulation to reduce clevis fatigue due to stay movement.
• Standard eye-jaw toggles fit all Harken cylinders
• Length refers to internal distance from inner surface of eye end to pin surface
Specifications
MFG #:HYHTEJS11
| Pin Diameter/Jaw Width7/16" (11.1 mm)
Jaw Width
7/16" (11.1 mm)
Length
2.0" (50.8 mm)
Pin Diameter
7/16" (11.1 mm)
Use with Cylinder Bore
25 mm
Use with Rod Diameter
11 mm
Barcode
097653234456
WARNING
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Pin Diameter/Jaw Width | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 439396 | MFG #: HYHTEJS11 | Special Order Only | 7/16" (11.1 mm) | $152.02 | |||
| SKU #: 439397 | MFG #: HYHTEJS13 | Special Order Only | 1/2" (12.7 mm) | $153.81 | |||
| SKU #: 439398 | MFG #: HYHTEJS16 | Special Order Only | 5/8" (15.9 mm) | $263.26 | |||
| SKU #: 439399 | MFG #: HYHTEJS19 | Special Order Only | 3/4" (19.1 mm) | $423.63 |
