Hand Crimp Lifeline Gate Eyes
Hand Crimp Lifeline Gate Eyes

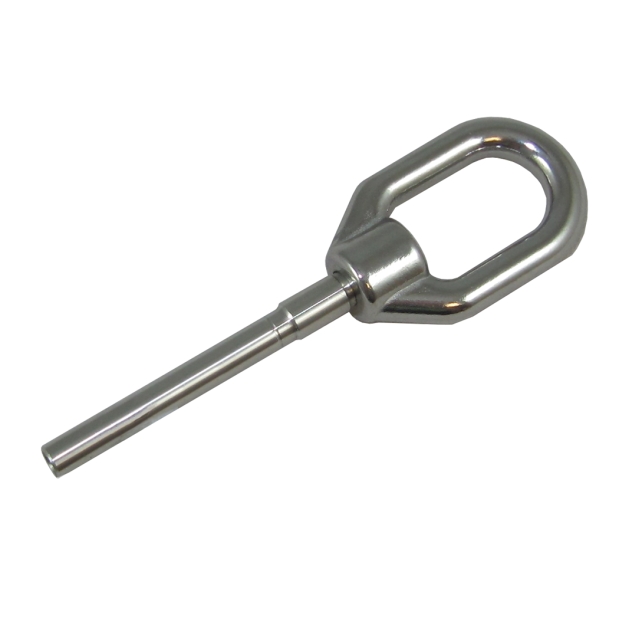

Hand Crimp Gate Eyes, 1/8" Wire - 1/4" - 28 LH Thread - Hand Crimp, Interlocking Eye
SKU: 168095 Item ID: HAY 14ECLLI18
Description
Eye size is 9/16". Use double eyes for the hinge side of the gate, and single eyes for the pelican hook side. The eye/stud joint is threaded so the gate eye can be disassembled for threading the life line through stanchions.
Heavy on the technical side...
Hand Crimp terminals, when properly applied, are approximately 65% - 70% the strength of 7 x 7 stainless steel wire.
While this has proven adequate for use in lifelines, these fittings should not be used for standing rigging or other high load applications.
For correct attachment, manufacurer's instructions must be followed.
Specifications
MFG #:14ECLLI18
| Wire Size1/8" Wire - 1/4" - 28 LH Thread - Hand Crimp, Interlocking Eye
Type
Hand Crimp, Interlocking Eye
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Thread
1/4" - 28 LH
Wire Dia.
1/8"
Barcode
795016002666
Product Options
| Selected | SKU # | MFG # | Availability | Wire Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 168095 | MFG #: 14ECLLI18 | Special Order Only | 1/8" Wire - 1/4" - 28 LH Thread - Hand Crimp, Interlocking Eye | $84.63 | |||
| SKU #: 168096 | MFG #: 14ECLLS18 | Special Order Only | 1/8" Wire - 1/4" - 28 LH Thread - Hand Crimp, Single Eye | $39.45 | |||
| SKU #: 168300 | MFG #: 516ECLLI316 | Special Order Only | 3/16" Wire - 5/16" - 24 LH Thread - Hand Crimp, Interlocking Eye | $89.78 | |||
| SKU #: 168301 | MFG #: 516ECLLS316 | Special Order Only | 3/16" Wire - 5/16" - 24 LH Thread - Hand Crimp, Single Eye | $44.98 |
