STUD 5/16IN SWAGE 5/8-18 X 4 RH
Rigging Studs
Share THIS PAGE:

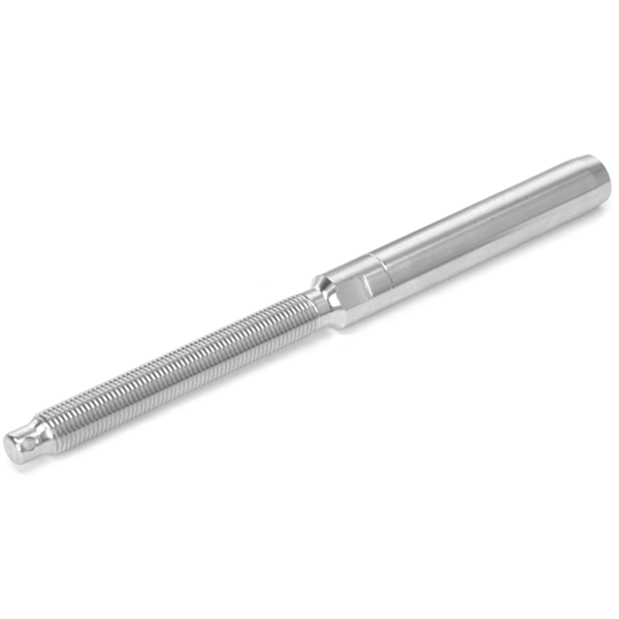

Rigging Studs- Right Handed

316 Stainless Steel

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
• Studs are marked with thread and wire sizes
• Swage line indicator shows starting point for swaging
• Shank diameter is reduced at cotter pin to eliminate thread interference from burrs

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHayn Marine#AvailabilityDescriptionUOMYour PriceQTY
168040HAY 10SE116RH 10SE116RHLoading...Rigging Studs - Right Handed, 1/16" Wire, 1-3/4" Thread Length, 10-32 RH Thread.Loading...
165818HAY 10SE332RH 10SE332RHLoading...Rigging Studs - Right Handed, 3/32" Wire, 1-3/4" Thread Length, 10-32 RH Thread.Loading...
168257HAY 14SE332RH 14SE332RHLoading...Rigging Studs - Right Handed, 3/32" Wire, 2-1/4" Thread Length, 1/4"-28 RH Thread.Loading...
168255HAY 14SE18RH 14SE18RHLoading...Rigging Studs - Right Handed, 1/8" Wire, 2-1/4" Thread Length, 1/4"-28 RH Thread.Loading...
168259HAY 14SE532RH 14SE532RHLoading...Rigging Studs - Right Handed, 5/32" Wire, 2-1/4" Thread Length, 1/4"-28 RH Thread.Loading...
381013HAY 14SEM03RH 14SEM03RHLoading...Rigging Studs - Right Handed, 3 MM Wire, 2-1/4" Thread Length, 1/4"-28 RH Thread.Loading...
168322HAY 516SE532RH 516SE532RHLoading...Rigging Studs - Right Handed, 5/32" Wire, 2-1/2" Thread Length, 5/16"-24 RH Thread.Loading...
168320HAY 516SE316RH 516SE316RHLoading...Rigging Studs - Right Handed, 3/16" Wire, 2-1/2" Thread Length, 5/16"-24 RH Thread.Loading...
168294HAY 38SE316RH 38SE316RHLoading...Rigging Studs - Right Handed, 3/16" Wire, 2-7/8" Thread Length, 3/8"-24 RH Thread.Loading...
168296HAY 38SE732RH 38SE732RHLoading...Rigging Studs - Right Handed , 7/32" Wire, 2-7/8" Thread Length, 3/8"-24 RH Thread.Loading...
168292HAY 38SE14RH 38SE14RHLoading...Rigging Studs - Right Handed, 1/4" Wire, 2-7/8" Thread Length, 3/8"-24 RH Thread.Loading...
168047HAY 12SE14RH 12SE14RHLoading...Rigging Studs - Right Handed, 1/4" Wire, 3-1/4" Thread Length, 1/2"-20 RH Thread.Loading...
168051HAY 12SE932RH 12SE932RHLoading...Rigging Studs - Right Handed, 9/32" Wire, 3-1/4" Thread Length, 1/2"-20 RH Thread.Loading...
168049HAY 12SE516RH 12SE516RHLoading...Rigging Studs - Right Handed, 5/16" Wire, 3-1/4" Thread Length, 1/2"-20 RH Thread.Loading...
168342HAY 58SE516RH 58SE516RHLoading...Rigging Studs - Right Handed, 5/16" Wire, 4" Thread Length, 5/8"-18 RH Thread.Loading...
168340HAY 58SE38RH 58SE38RHLoading...Rigging Studs - Right Handed, 3/8" Wire, 4" Thread Length, 5/8"-18 RH Thread.Loading...
206869HAY 34SE716RH 34SE716RHLoading...Rigging Studs - Right Handed, 7/16" Wire, 4" Thread Length, 3/4"-16 RH Thread.Loading...
