What you need to know –

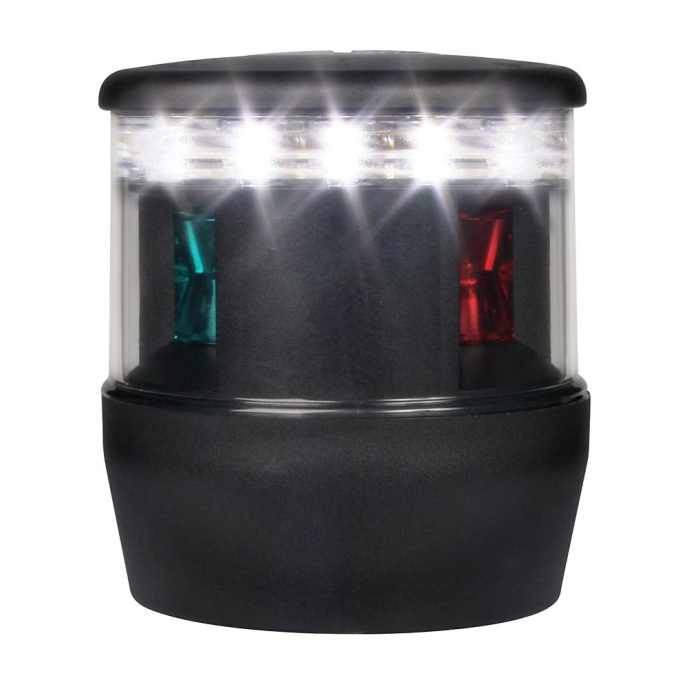

• LED Tri-Color Mast Top Light (combination port/starboard/stern light); plus a second LED all-round white Anchor Light
• 360° total visible arc – 2 nautical mile 112.5° red Port/112.5° green Starboard and 2 nm 135° white Stern;
plus 2 nm 360° white All-Round (Anchor)
• Certified for use on sailboats (only) less than 20m (65.6 ft) in length
• Mounts on horizontal surfaces
• 12V/24V

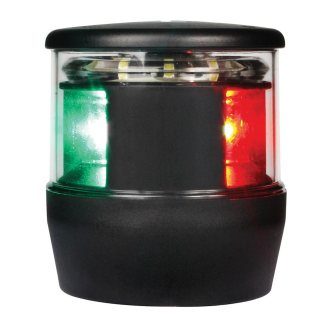

The NaviLED Trio tri-color navigation light is manufactured with advanced materials and state of the art technology. It can be depended on for reliability, efficiency, and safety at sea.
With its ultra-low current draw, you'll see substantial power savings. The combined port, starboard and stern function draws only 3.5W compared to 25W from a standard incandescent bulb.
The light is fully sealed for life - impervious to saltwater and contaminants - and is IP67 certified.
Hella marine lens and optics technology ensures precise horizontal and vertical cut-off angles, clearly indicating a vessel’s movement and heading - keeping you safe and highly visible.
The advanced heavy-duty Grilamid lens and housing, plus LED technology with no filaments to break, combine to provide outstanding resistance to vibration, impact, and shock loads.
Extensive testing has resulted in high product reliability and superior performance in the most demanding conditions.
Advanced multi-volt circuitry provides a uniform level of intensity for reliable and safe illumination across a range of DC inputs such as 9-33 volts. These multi-volt LED lamps can be connected to 12 or 24 volt systems without modification, providing full light performance and automatic compensation for low battery voltages and voltage drop over long cables and connections.
Reverse polarity and spike protected for enhanced durability even under severe voltage fluctuations.

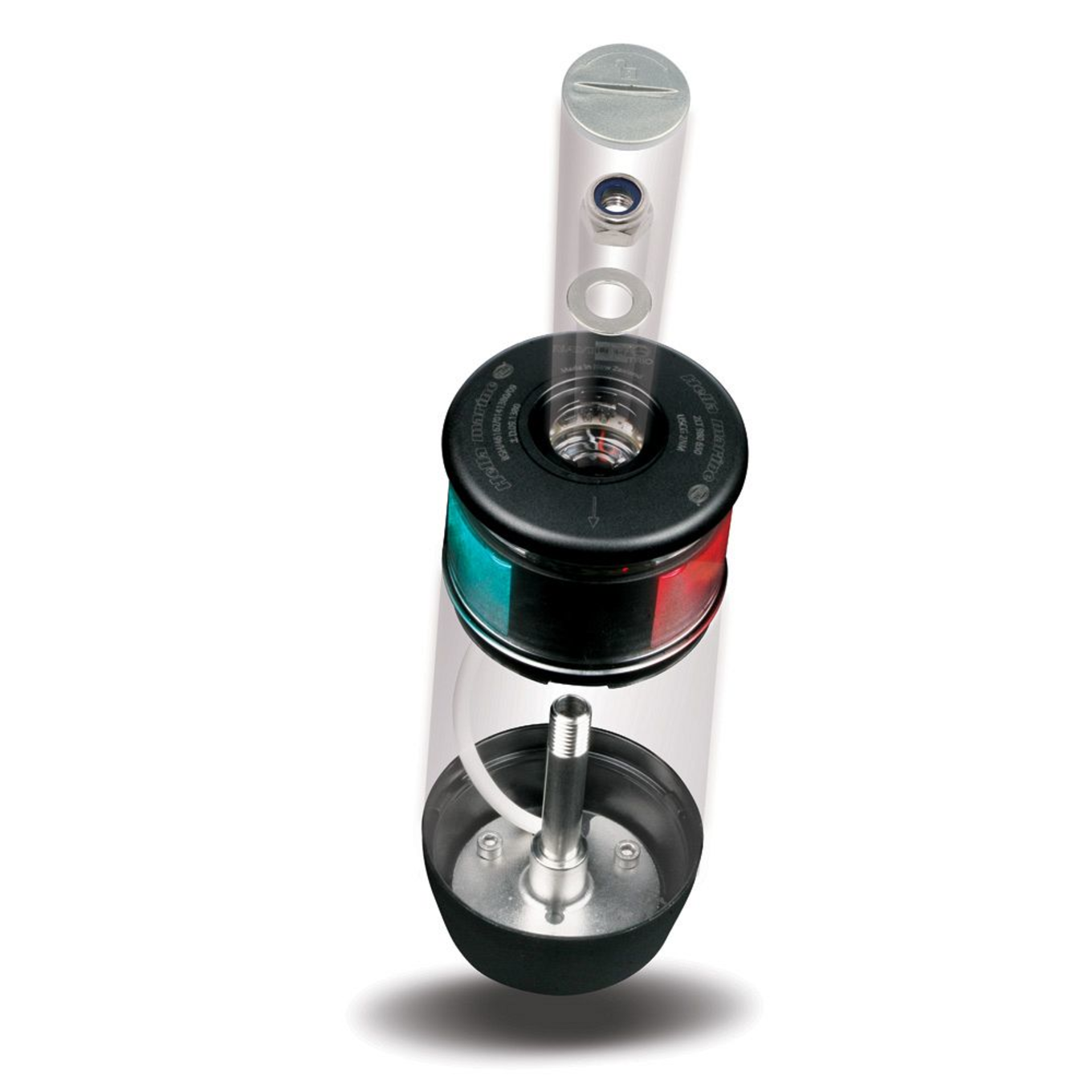

The NaviLED Trio comes with a unique installation and removal system - installing onto a 316 stainless steel mounting shaft for a secure attachment and reliable electrical connections (see image).
• Housing Material: UV resistant, high impact nylon
• Lens Material: UV resistant, ultra heavy duty Grilamid
• Mounting Shaft: Stainlesss steel
• Minimum Visible Distance: 2 Nautical Mile (Yacht)
• Cable: Pre-wired with 400mm of triple core marine cable
• Operating Voltage: Multivolt 9-33V DC
• Voltage Protection: Spike protected to +500 volts, reverse polarity to -700 volts
• Power Consumption: Port, starboard and stern - less than 3.5W combined; All-Round/Anchor - less than 1.5W
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 14 oz/400g (including cable)
• Approvals: BSH, IMO COLREG, USCG, ABYC, RCD
