50 Amp Battery Master Switch

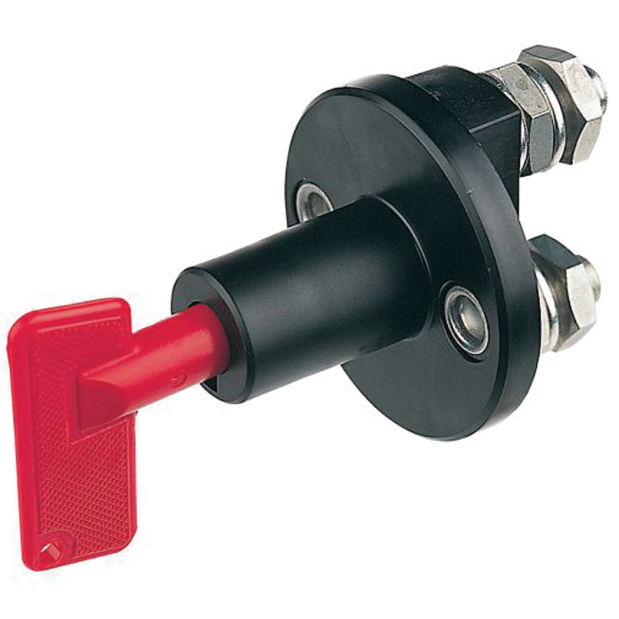

Hella 50 Amp Battery Master Switch, Series 2843

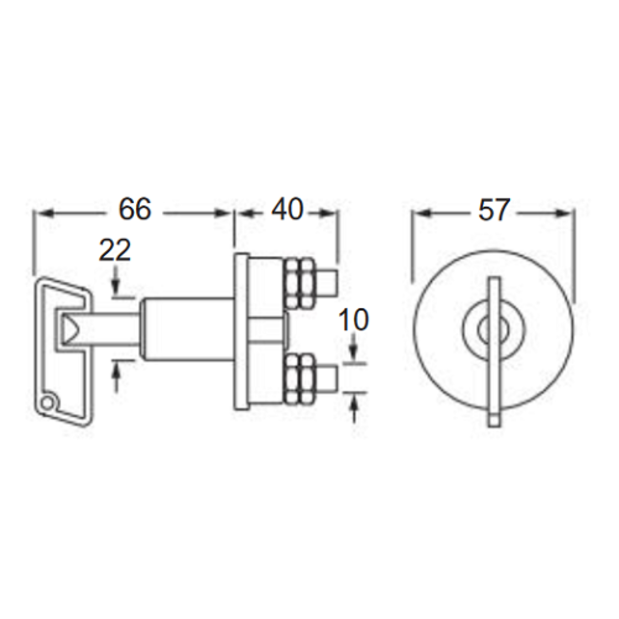

Diagram of Hella 50 Amp Battery Master Switch, Series 2843
Hella 50 Amp Battery Master Switch, Series 2843
Diagram of Hella 50 Amp Battery Master Switch, Series 2843

Master Battery Switch - 50A

SKU: 55272 Item ID: HLA 002843011
  • Removable key
  • Pos/Neg cables can be switched
  • Impact resistant plastic
Your Price:$30.61/ Each
Availability:
16 In Stock
Ships immediately
Quantity:
Return Policy

Description

Battery master switches for interrupting the main battery cable for effective protection against unauthorized use of the boat.
Positive and negative cables can be switched as required.

Key can be removed in the OFF position, current interrupted.

• Intermittent amp rating: 1000A @ 12V or 500A @ 24V
• Continuous amp rating: 12/24V @ 50 Amps
• M10 terminals
• Key removable in off position
• Not suitable for areas exposed to water or moisture

Are You a Pro?

Fisheries offers discounted pro pricing, real-time inventory and same-day shipping -- as well as our solid customer service reps.

Apply Now

Specifications

MFG #:002843011
Amperage
50A
Max Load (12V/10 sec)
1000A
Max Load (24V/10 sec)
500A
Degree of Protection
IP X4
Spare Key
#706729011
