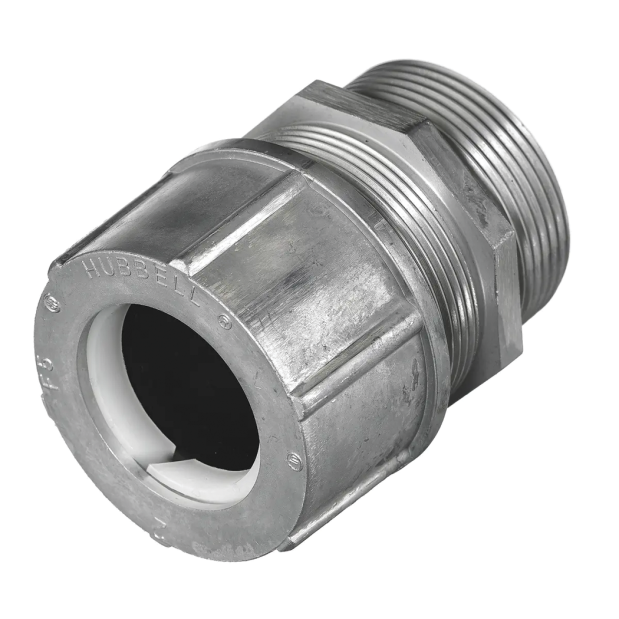

Kellems Wire Management - Cord Connectors

Cord Connectors - Hubbell offers the most extensive range and the widest selection of materials available in the industry. NPT hub sizes range from 1/4" to 3" in configurations including straight male ends, 90°, 45°, female, and underground feed connectors. Customers can choose from aluminum, plated steel, nylon, and stainless steel options. The zinc-plated steel cord connectors combine the strength of steel with the corrosion resistance provided by zinc plating. These heavy-duty connectors are capable of withstanding most manufacturing chemicals, including acidic solutions, solvents, and other corrosive substances. Their machined steel nut and body facilitate the tightening of the compression nut and NPT hub without the risk of stripping the threads.

For larger cord sizes, specifically NPT hub sizes from 1" to 2", Hubbell employs malleable iron connectors that deliver excellent holding capacity and Liquidtight performance. Additionally, Hubbell’s nylon cord connectors are resistant to most common industrial corrosives and offer highly effective pullout protection in a lightweight design. They are particularly suitable for applications where weight, conductivity, or corrosion could pose a challenge. These connectors are available in NPT hub sizes ranging from 1/4" to 1". Lastly, stainless steel cord connectors are engineered for superior strength and corrosion resistance, making them ideal for industrial and military applications. They are crafted from 300 series stainless steel and are available in NPT hub sizes from 1/4" to 1".

UL514B Tray cable rated for dry locations
