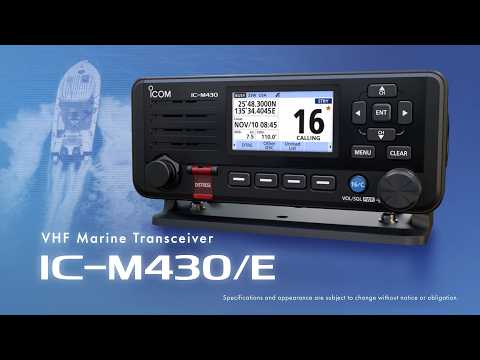

IC-M430 VHF/DSC Fixed-Mount Marine Radio

The IC-M430 represents a refined and space-efficient VHF marine transceiver engineered for contemporary maritime vessels. Incorporating a streamlined profile alongside an innovative flush mounting system, it integrates harmoniously with any wheelhouse configuration. The color TFT LCD display, characterized by an expansive viewing angle and three operational modes—Light, Dark, and Night—guarantees optimal legibility across all environmental circumstances. Through its NMEA 2000™ and NMEA 0183-HS connectivity capabilities, the IC-M430 establishes seamless integration within your vessel's communication infrastructure.

25W RF Output with Class D DSC
For safety on the water, the IC-M430 offers 25 watts of transmit power. It provides built-in Class D DSC functionality for the distress calling button and direct calling.

Slimmer Body Fits in Tight Spaces
The compact 202 x 82 x 52.6 mm (8.0 x 3.2 x 2.1 inch) body provides exceptional installation flexibility. The slim depth profile enables installation in limited spaces while maintaining ample clearance behind the radio for proper cable management.

Simplified Flush Mounting
The radio features MFD-style mounting for elegant installation. Screw the radio directly into place, and snap-on body covers hide all mounting hardware for a clean finish. This mounting method is ideal for side pod installations on center console hard tops.

Three Display Modes for Comfortable Operation
First color display in class. The wide viewing angle and bright screen deliver exceptional readability in any environment. Choose from Light mode, Dark mode, or Night mode, whether operating in direct sunlight or complete darkness, the display remains clearly visible. Seamlessly switch between Day and Night modes with a one-touch button. Backlit operation keys ensure confident operation in the dark.

Flexible System Integration
The radio offers plug-and-play installation via the NMEA 2000™, and also supports NMEA 0183-HS network, enabling data sharing between the radio and other marine electronics. Compatible with Icom MA-510TR, and you can transmit an Individual DSC call to a selected AIS target.

Remote Microphone Installation Options
The included hand microphone can be mounted directly to the front panel or rear-mounted using the extension cable OPC-1000 (optional accessory). For dual-station capability, the CommandMic™* provides full remote control from a second location (cable extension up to 60 ft/18.3 m) and supports intercom functionality between stations. Ideal for sailboat installations requiring a second control position at the helm. A 90° L-type adapter* is a useful addition that helps prevent connector damage.

Built-in GNSS (GPS) Antenna
The IC-M430 features a built-in GNSS receiver with an internal antenna. For installations where satellite reception is limited, such as when mounted inside a cabin or enclosed area, an optional external GNSS antenna UX-241 is available.

Other Features
• VSWR (Voltage Standing Wave Ratio) detection function notifies antenna issues
• 25 W loud audio, hailer and foghorn functions
• Active noise canceling reduces background noise
• Dualwatch and Tri-watch function for monitoring Ch. 16 and/or call channel
• Optional flush mount kit for conventional installations
• IPX7 waterproof protection
• AquaQuake™ water draining function
• Weather channels with alert function
• Priority and normal scan
• Supports 4-digit channels
