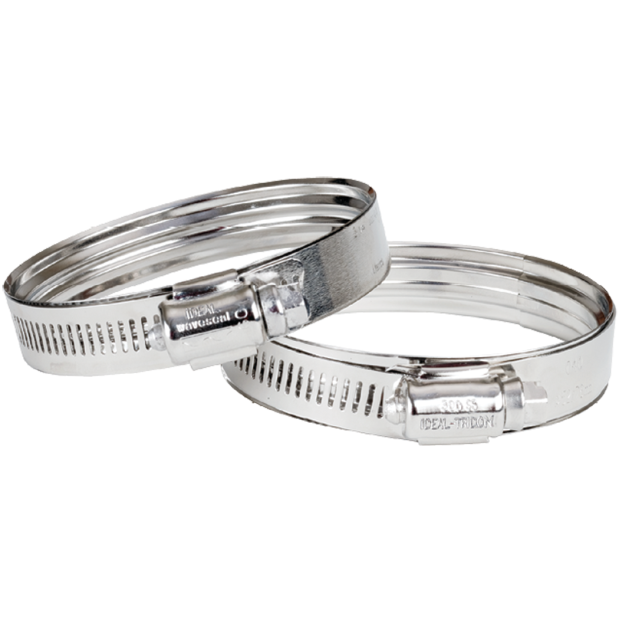

300 SS Constant Torque SmartSeal Hose Clamps

1/2" Solid Band • Sizes 20 to 72 • 1-1/8" to 4-13/16" Hose • Self-Adjusting • 300 Series Stainless Steel

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
SmartSeal® provides spring compensation over a full 360° of hose circumference. This is a self-adjusting, all stainless steel clamp that forms a unique 360° seal in response to pressure and temperature changes.
The improved clamp roundness eliminates leak paths, and the exclusive trough-shaped design creates higher pressure loading.

Comprised of two main parts, the clamp assembly and the high quality thin gauge ridged liner, SmartSeal grips by penetrating deeper into the hose wall over a narrower footprint. The result is an optimal heavy-duty constant tension clamp without all the bulk.
The smooth liner is also easy on softer hoses.

Applications include vehicle fluid applications, radiators, turbo-charged engines, solar panels, vehicle HVAC, generators, domestic washing machines and air conditioners, and anywhere else hoses are subject to temperature changes as part of their service application.

• Screw - 5/16" Hex head, 300 Stainless Steel
• Housing - 300 Stainless Steel
• Band - 1/2", 300 Stainless Steel
• Installation torque - 48 in-lb (5.4Nm)

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDIdeal Clamp Products#AvailabilityDescriptionUOMYour PriceQTY
1001685IHC 372150020051 372150020051Loading...Size 20 SmartSeal Constant Torque Hose Clamp - 1-1/8" - 1-9/16" Hose ODLoading...
1001694IHC 372150072051 372150072051Loading...Size 72 SmartSeal Constant Torque Hose Clamp - 3-3/4" - 4-13/16" Hose ODLoading...
1001692IHC 372150060051 372150060051Loading...Size 60 SmartSeal Constant Torque Hose Clamp - 3-1/4" - 4-1/16" Hose ODLoading...
1001691IHC 372150048051 372150048051Loading...Size 48 SmartSeal Constant Torque Hose Clamp - 2-11/16" - 3-5/16" Hose ODLoading...
1001690IHC 372150040051 372150040051Loading...Size 40 SmartSeal Constant Torque Hose Clamp - 2-5/16" - 2-13/16" Hose ODLoading...
1001689IHC 372150036051 372150036051Loading...Size 36 SmartSeal Constant Torque Hose Clamp - 2-1/8" - 2-9/16" Hose ODLoading...
1001688IHC 372150032051 372150032051Loading...Size 32 SmartSeal Constant Torque Hose Clamp - 1-15/16" - 2-5/16" Hose ODLoading...
1001687IHC 372150028051 372150028051Loading...Size 28 SmartSeal Constant Torque Hose Clamp - 1-3/4" - 2-1/16" Hose ODLoading...
1001686IHC 372150024051 372150024051Loading...Size 24 SmartSeal Constant Torque Hose Clamp - 1-1/2" - 1-13/16" Hose ODLoading...
