This new generation TouchLED task light offers many unique features using high tech components.
Featuring a flexible gooseneck design, the F4 TouchLED Chart Light is turned on and off by silent touch activation.
The touch sensor is easily found in the dark via a subtle red indicator light.
The F4 also features an optional programmable dusk to dawn night light.
NOTE —F4 Chart Lights come in 6", 12" or 20" lengths with either vertical bases for wall mounting, or horizontal bases for table or dashboard mounting.

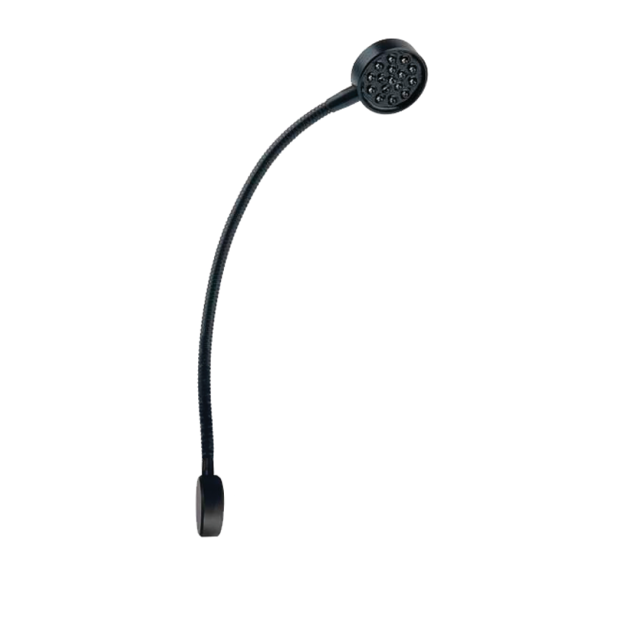

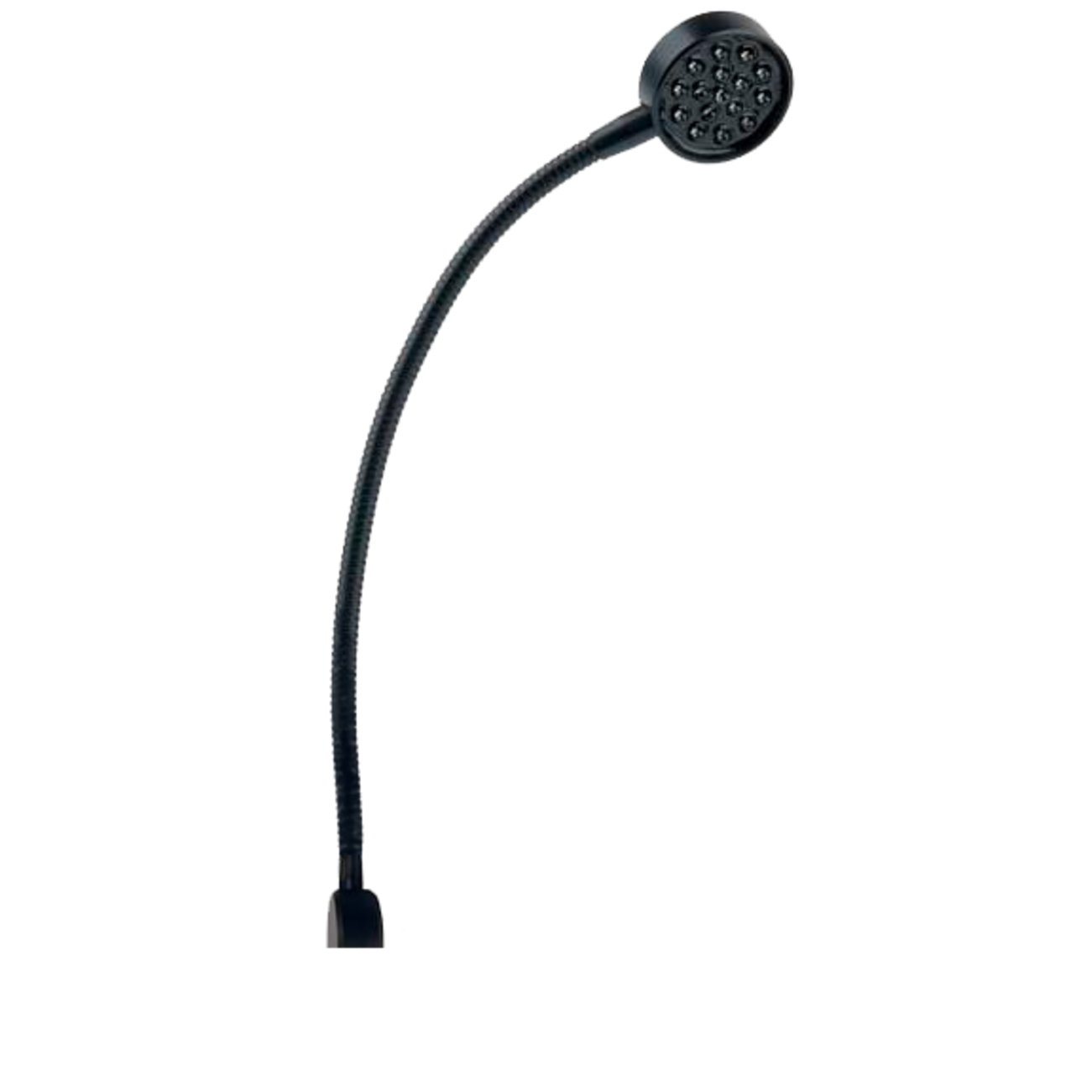

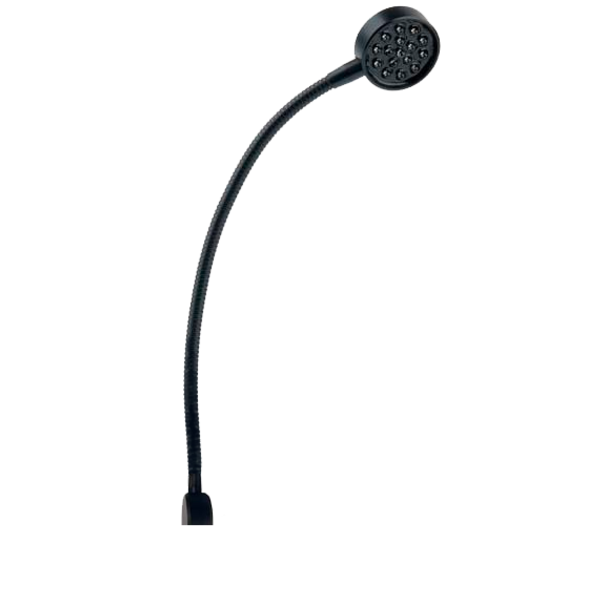

This 20" version of the F4 is equipped with a vertical base for bulkhead (wall) mounting.
• Use as a chart light or as a reading/task light
• Revolutionary patented LED technology
• Beam colors are cool white and red; this version is not dimmable
• Output is equivalent to a 10W halogen bulb
• No mechanical switches - touch activation
• Programmable photo-sensitive mode activates "red" LED after dark
• Night-time locator light
• Aluminum and brass housing
• 20" flexible gooseneck
• IP40 rating: not water resistant - suitable for interior use
• CE marked
• Multi-voltage: 10 - 30V DC

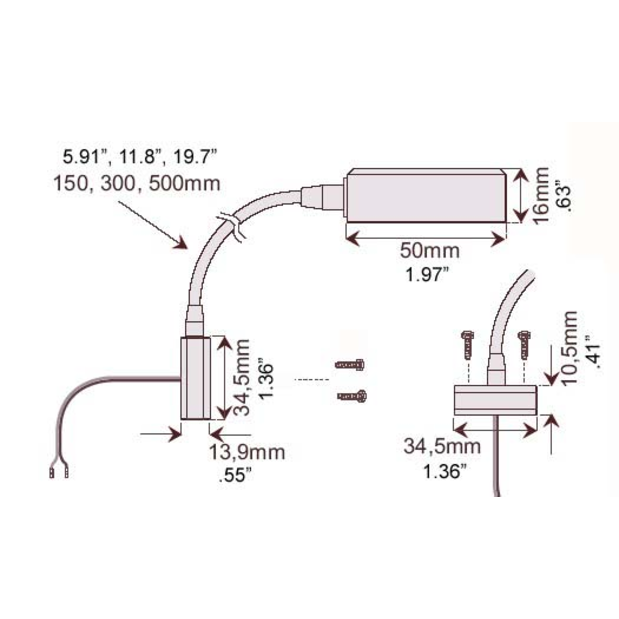

• Bell diameter: 1.97" (50mm)
• Base dimensions: 1.36" (34.5mm)
• Power consumption: Off mode: 10mA (@12V), Night Light Mode: 20mA (12V)
• LED engine: 15 x 5mm CW LED/1 x 5mm Red LED

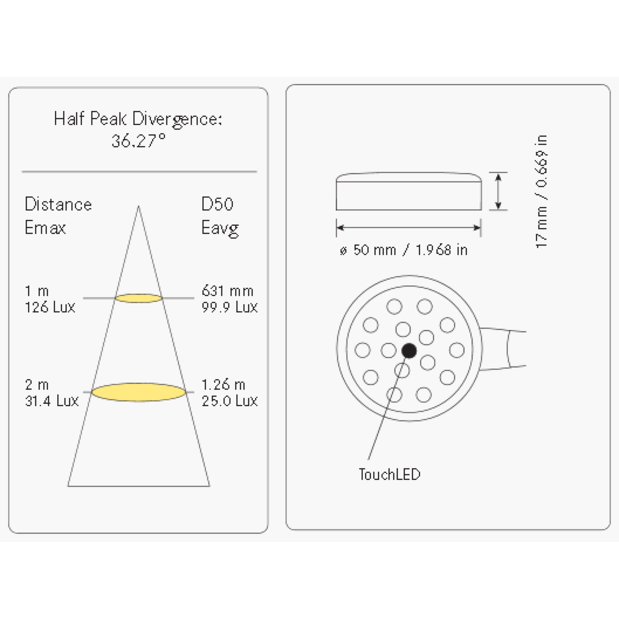

• Beam angle (FWHM): 44°
• Luminous flux: 80 lumens
• Color temperature: 8200K
• Service life: 20,000 hr
• Electrical protections: reverse polarity, surge protection
• Integral switch: photo-sensor "TouchLED"
• Mounting method: screw mount
• Ingress Protection: IP40 - suitable for indoor use
