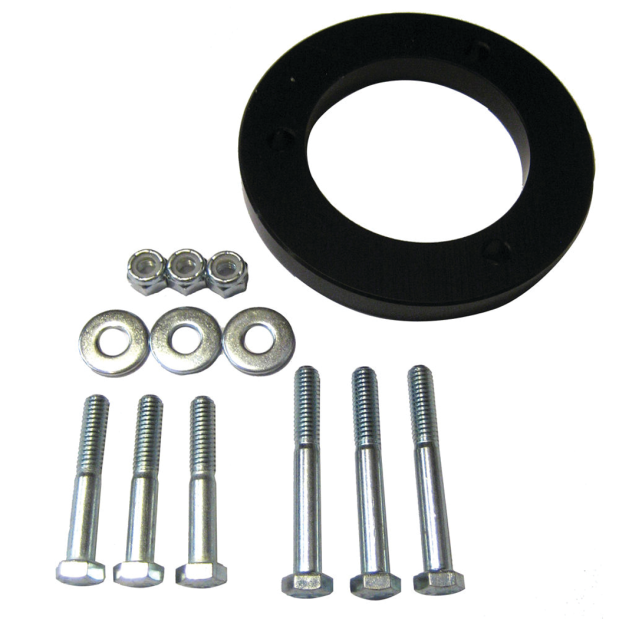

19 mm Spacer Kit - Use with 90 Degree Mount

This spacer kit is an option in installations of Type S Wireless Steering helm units as a way to gain some leeway if space behind your dashboard is limited.

Normally, the Type S helm requires 10" of space behind the dashboard.

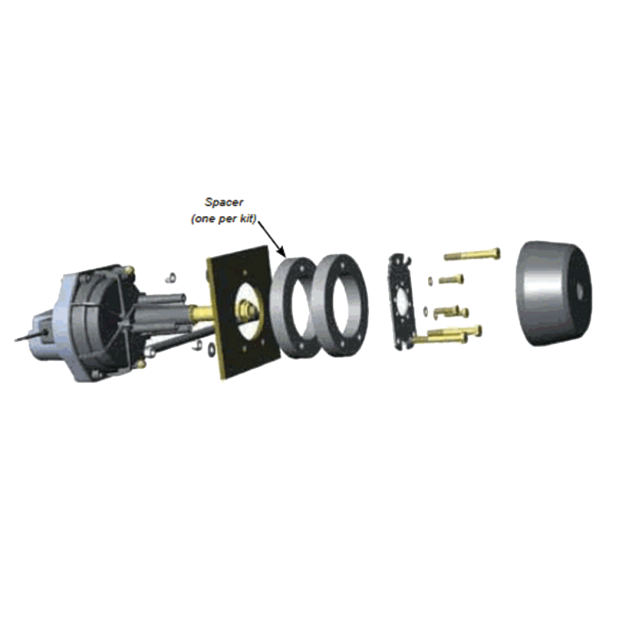

With one of these "90° Helm" spacers mounted on the front side of the dashboard, you can gain 3/4" (19 mm) of space for the helm on the back side.

Use to decrease the space required for the helm drive behind the dashboard.
Up to two spacers may be used for a total gain of 1-1/2" of space.
This can reduce the space needed behind the dash for the Type T helm drive down to 8-1/2".
