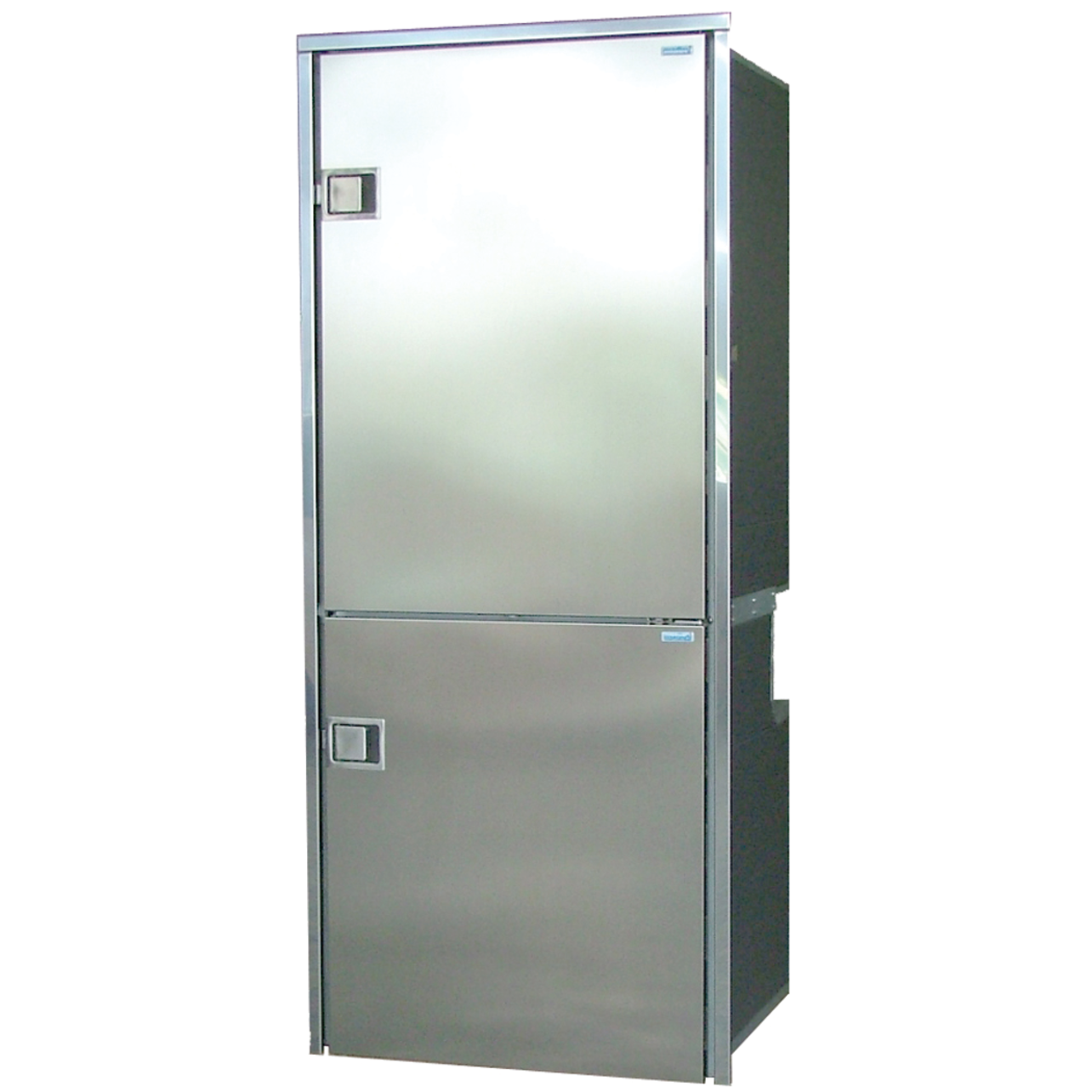

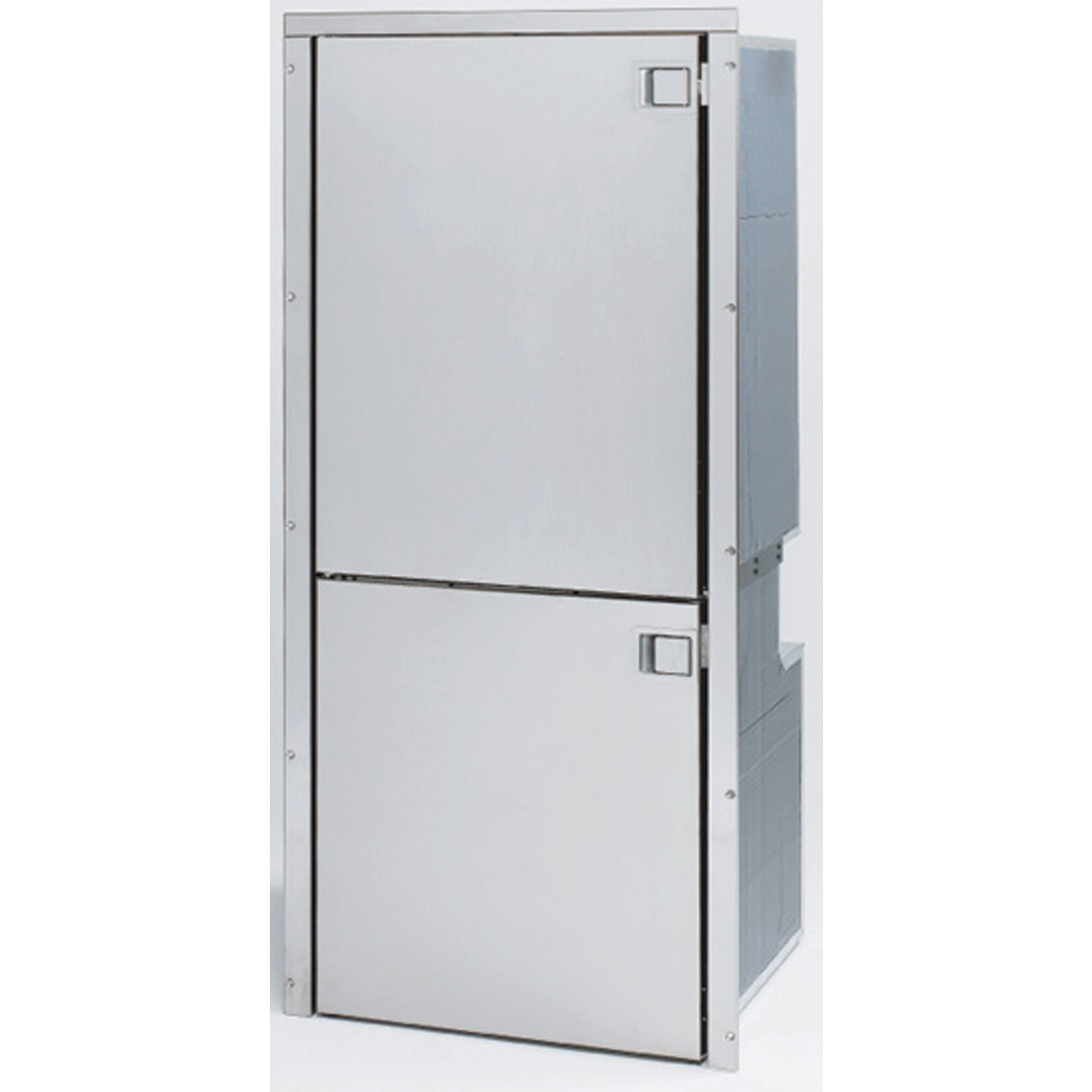

Cruise 195 Built-In Refrigerator/Freezer
Cruise 195 Built-In Refrigerator/Freezer

Cruise 195 Built-In AC-DC Refrigerator Freezer

6.9 Cu Ft, 195 Liters | 4.6 cu ft refrigerator | 2.3 cu ft freezer

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).

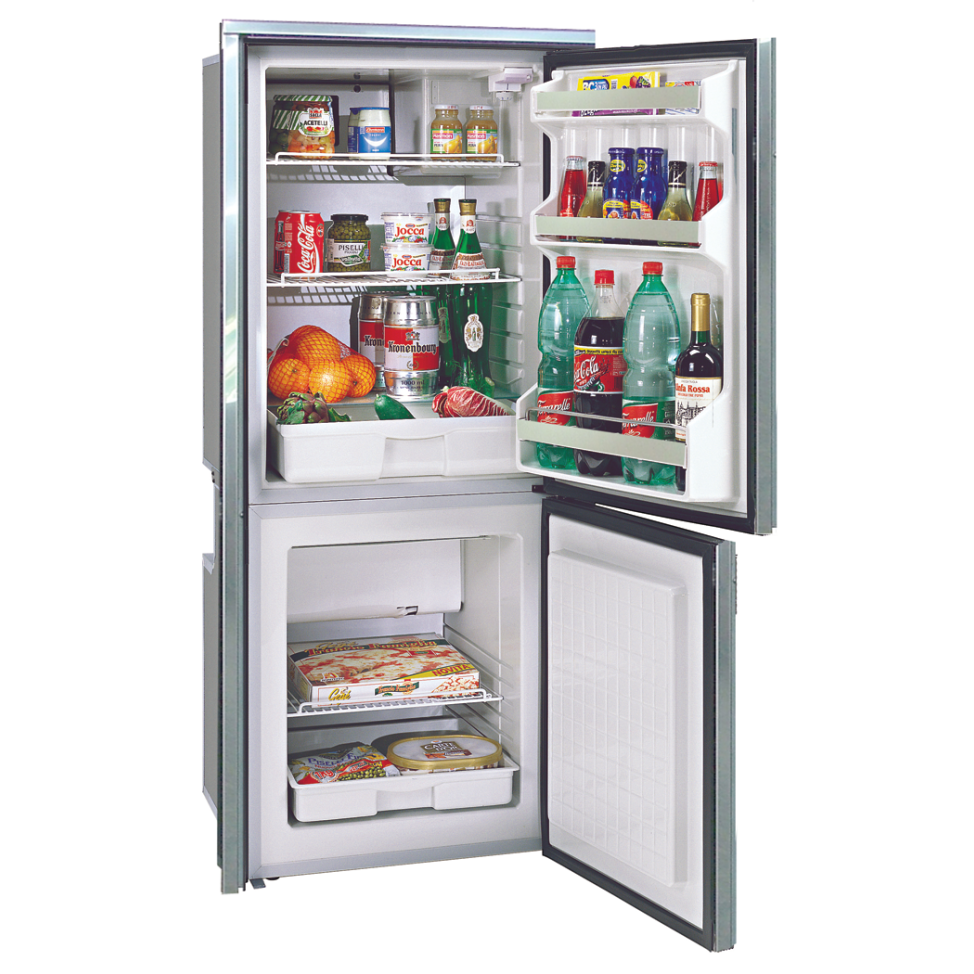

The Isotherm Cruise 195 Stainless Steel (INOX) Marine Refrigerator / Freezer is an upright combo unit that features the refrigerator on top and a deep freezer on the bottom. Each section features its own separate compressor and thermostat control for superior reliability and performance in an upright fridge / freezer.

The Cruise 195 refrigerator section is on top for convenience and features molded-in cradles and door shelves for rugged durability and plenty of room for food and beverages. The top refrigerator section has an innovative cooling evaporator protected by an aluminum shield with built-in air circulation fan that pulls cold air across the evaporator and circulates the air in a convection to keep temperatures the same on top and bottom shelves. A condesation tray positioned under the evaporator captures condensate and channels it out the back, into an evaporation tray. This helps keep the Cruise 195 refrigerator section free of frost issues.
• Volume: 195 liters (fridge: 130 liters, freezer: 60 liters)
• Silent, high efficient, fan cooled 12/24V Danfoss / Secop compressor (type BD35F X 2)
• Mounting frames for a complete flush integration
• Exclusive, complete stainless steel design (doors and handles)
• Two door fridge-freezer solution
• 3-sided mounting flange extends 13/16" beyond the cutout on each side
• Interior light

Heavy on the technical side...
Electrical Power Sources
Indel's Isotherm refrigerators feature Secop (formerly Danfoss) compressor units, which come equipped with an electronic control module on rhe side. These modules are rated for either a DC Only power source, or for AC/DC power sources.

DC Only modules run on nominal 12 or 24 volts and have red and black wire leads which connect to the positive and negative terminals of your boat's batteries. A 15A ATC fuse for 12 volt systems (use 7.5A for 24 volts) and an ATC fuse holder are included. If an on/off switch is wired into the circuit, it should be rated for a minimum of 20 Amps.

AC/DC modules run on 12/24 volts DC and include wire leads, as above. They can also run on nominal 100 - 240 volts AC at 50 or 60 Hz. These AC/DC modules have two additional spade-style AC terminals for connecting the included 115 volt AC power cord (which has a two-push-on connectors at the refrigerator end, and a two-prong plug at the power source end).
If you want to run the refrigerator on European 230 volt or US 240 volt systems, you will need to provide your own power cord with a mains power plug which complies with applicable electrical safety regulations.
Note - Due to the double insulated design of the electronic unit, no earth connection is needed.

AC and DC power supplies can be connected to the electronic module at the same time. AC will be the preferred power supply source when both AC and DC power are available.
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDIsotherm#AvailabilityDescriptionUOMYour PriceQTY
186107ISO 1195BB7MK0000 1195BB7MK0000Loading...Stainless Cruise 195 Built-In Refrigerator/Freezer - AC/DC, Right Swing DoorLoading...
391533ISO 1195BB7NK0000 1195BB7NK0000Loading...Stainless Cruise 195 Built-In Refrigerator/Freezer - AC/DC, Left Swing DoorLoading...
