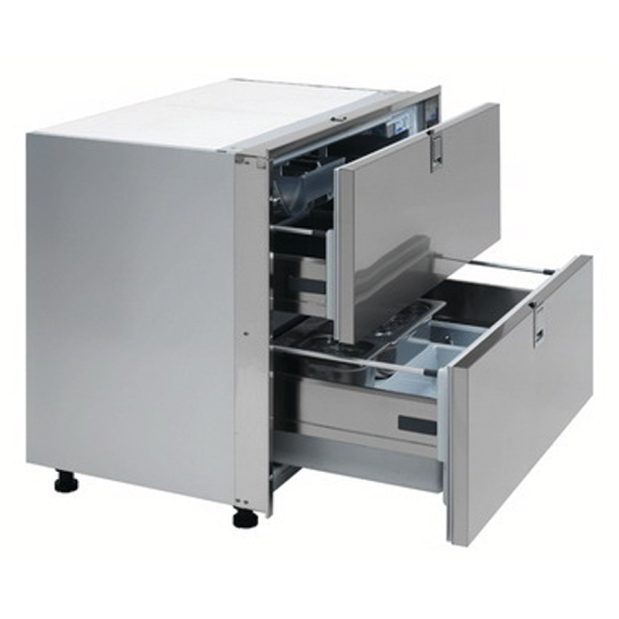

The Isotherm Drawer 190 Stainless Steel (INOX) is a double-drawer refrigerator in stainless steel design with two separate drawers providing practical adjustable interior equipment. It is equipped with a fan-cooled compressor mounted on the rear side and delivered with a three side mounting frame for flush mounting.
The DR190 provides commercial quality design for on board chefs with stainless steel trays and bins to keep refrigerated foods ready to go for fast food preparation. Unlike 'landlubber' fridges, Isotherm uses Danfoss/SeCOP compressors that are designed to work at angles up to 30 degrees (rail under) for days or weeks at a time. Plus, Isotherm backs all compressors with the exclusive Isotherm 5-year limited warranty as well as 2 years on all other parts.
• Cutout dimensions: 35.4"W x 31.3"H x 22.0"D
• 3-sided mounting flange extends 13/16" beyond the cutout on each side
• Power consumption (W/24h): 700
• Weight: 130 lbs (59kg)
• Please note - does not include freezer
Heavy on the technical side...
Electrical Power Sources
Indel's Isotherm refrigerators feature Secop (formerly Danfoss) compressor units, which come equipped with an electronic control module on rhe side. These modules are rated for either a DC Only power source, or for AC/DC power sources.
DC Only modules run on nominal 12 or 24 volts and have red and black wire leads which connect to the positive and negative terminals of your boat's batteries. A 15A ATC fuse for 12 volt systems (use 7.5A for 24 volts) and an ATC fuse holder are included. If an on/off switch is wired into the circuit, it should be rated for a minimum of 20 Amps.
AC/DC modules run on 12/24 volts DC and include wire leads, as above. They can also run on nominal 100 - 240 volts AC at 50 or 60 Hz. These AC/DC modules have two additional spade-style AC terminals for connecting the included 115 volt AC power cord (which has a two-push-on connectors at the refrigerator end, and a two-prong plug at the power source end).
If you want to run the refrigerator on European 230 volt or US 240 volt systems, you will need to provide your own power cord with a mains power plug which complies with applicable electrical safety regulations.
Note - Due to the double insulated design of the electronic unit, no earth connection is needed.
AC and DC power supplies can be connected to the electronic module at the same time. AC will be the preferred power supply source when both AC and DC power are available.
