Special Engine Cooling Pumps, Caterpillar 3160/3208

The ideal solution for raw water marine engine cooling from Jabsco, the originator of the flexible impeller pump. This semi-positive displacement design has superior priming ability, is compact, with simple mechanical characteristics that ensure trouble-free running and long life.
Designed and manufactured specifically for engine cooling applications.

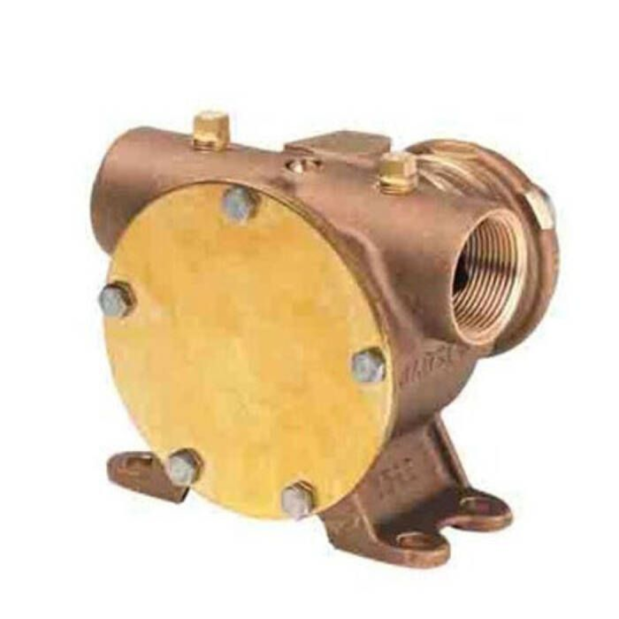

The Jabsco 6400-1051 is a Bronze Pedestal Pump with 1-1/4" NPT horizontal threaded inlet/outlet ports.
It has a half cam and short stainless steel shaft for Caterpillar Engines.
Note: Replaces Caterpillar Model 1W9046, 4L9070, 4L1919 Pumps.

• Constructed from marine quality bronze and stainless steel for ruggedness and reliability
• Easy to service and maintain and inexpensive to operate
• Will tolerate abrasive wear
• Handles hard and soft solids without clogging
• Can pump in either direction
• Will not airlock

Varied applications:
Marine: Pumping bilges, Washdown, Engine Cooling.
Industrial: Circulating and Transferring liquids, Velocity-mixing; Transferring soap, liquors, pastes, glues, glycerin, lotions and brine.
Farm: Pumping water for stock and poultry houses and Booster Pumping
Plumbing & Home: Pumping out flooded basements, cesspools, sumps and many other uses.

Specifications:
Flow Rate: Nominal 200 Liters/min (44.4 gallons/min) at 1500 rpm
Self-priming from dry up to 2.4m (7.8ft)
Short Shaft
Half Thickness Cam
Body Materials: Bronze
Impeller: Neoprene
Shaft Material: Type 316 Stainless Steel
Wearplate: Replaceable
Shaft Seal: Carbon-Ceramic Face Type
Bearings: Pre-lubricated Double Row Ball
Port Type: 1-1/4" (32 mm) NPT Internal
Horizontal: 1-1/4" Female Pipe Thread Ports
