Home Marine Pumps & Pump Replacement Parts Marine Fresh Water Pumps & Replacement Parts

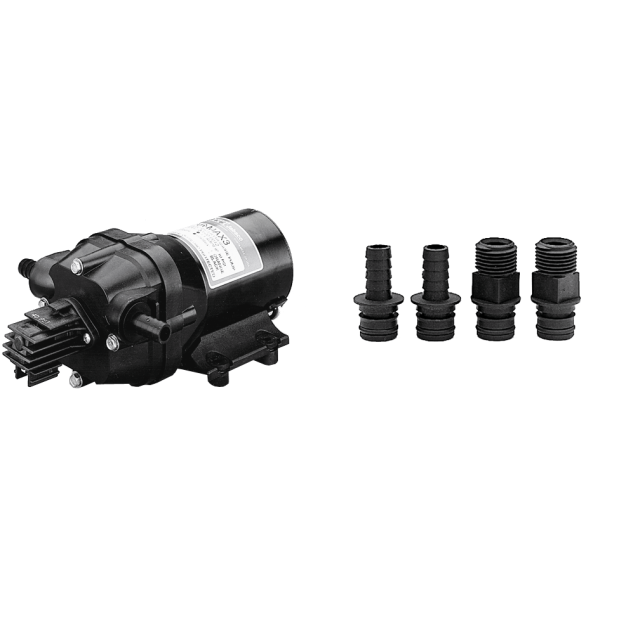

Jabsco PAR-Max 3.5 Water Pressure Pumps
Par-Max 3 - Water Pressure Pump, 24 VDC - 3.5 GPM High Pressure
SKU: 170563 Item ID: JAB 31610-0094
- 3.5 GPM flow
- Self priming
- Overload protection
Description
• 3.5 gpm (13.2 lpm) open flow output
• Self-priming up to 10 ft
• Four piston diaphragm sealed for smooth and quiet operation
• Thermal overload protection automatically stops motor should it overheat due to overload, with auto re-start feature
• Diaphragm design allows extended dry running
• Pressure switch cut-in 15 psi (1.0 bar), cut-out 25 psi (1.7 bar), low pressure, or cut-in 20 psi (1.4 bar) cut-out 40 psi (2.8 bar), high pressure
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
Specifications
MFG #:31610-0094
Volts
24 VDC
Type
High Pressure
Amps
7 A
Max. Output
3.5 gpm
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
671880533270
