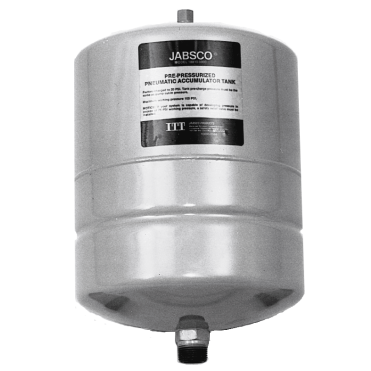

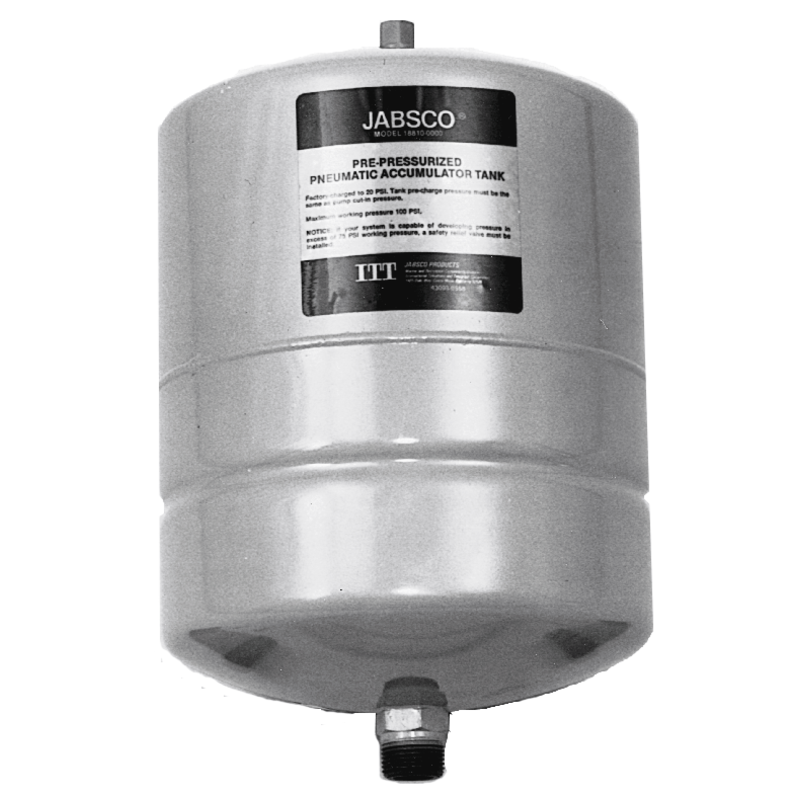

Pneumatic Bladder Accumulator Tank Assembly

For maximum efficiency and water delivery, the accumulator tank pressure charge should be the same as the pump switch turn-on setting, typically 20 psi.

• Smooth flow from faucets
• Reduces pump cycling
• Precharged air cushion
• Eliminates pulsations and water hammer
• Diaphragm between water and air
• Polypropylene water reservoir
• Includes mounting brackets with mounting assembly
• NSF certified-standard 61
• Will smooth flow from faucets and shower, reducing pump cycling and eliminating pulsation and water hammer
• Water is totally separated from air chamber and metal tank by a bladder and polypropylene tank liner
• NSF-61 listed for all water applications
• Volume of tank is 2 gallons with a working water volume of approximately one gallon
• Mounts horizontally or vertically, even upside down
• Includes stainless steel brackets and band clamp
• 100 psi (6.9) bar maximum working pressure
• Tank may be fine tuned to cut-in pressure of pump
• Pre-pressurized to 20 psi
