Cooling Pump - Caterpillar D-336/343/353, Detroit V-71 & V-92

The ideal solution for raw water marine engine cooling from Jabsco, the originator of the flexible impeller pump.
This semi-positive displacement design has superior priming ability, is compact, with simple mechanical characteristics that ensure trouble-free running and long life.
Designed and manufactured specifically for engine cooling applications.

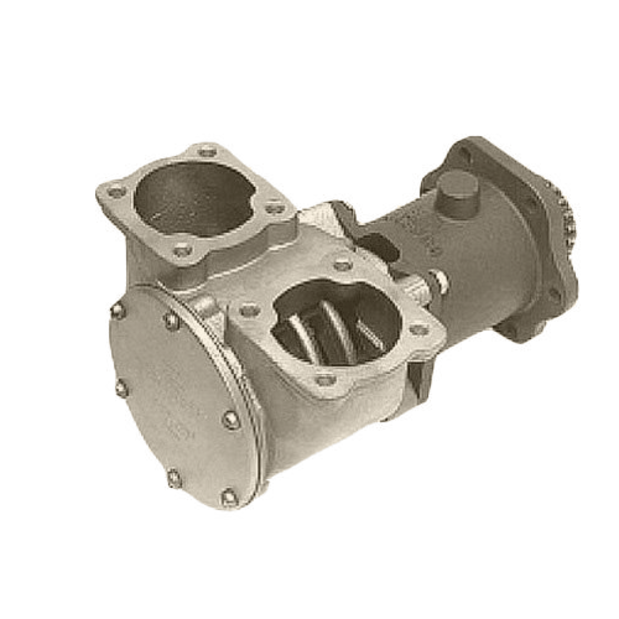

The 17360-1001 is a heavy duty marine, flexible impeller, raw water cooling pump for Caterpillar engine models D-336 and D-353.
With minor plumbing modifications this pump may be adapted to the Caterpillar D-343, the Detroit Diesel V-71 and V-92 and some Stewart and Stevenson marinizations of Detroit Diesel Engines.

This is a Gear Drive engine cooling pump. The drive gear fitted to this heavy duty flange mount pump is supported by the pump ball bearings and driven by one of the engine gears.
The Neoprene impeller in this pump depends on liquid pumped for lubrication. Do not run dry for more than thirty (30) seconds as lack of liquid will burn the impeller.

Pump features –
• Ports: 2-1/2" flange-style
• Flow rate: Nominal 270 liters/min (60 gallons/min) at 1500 rpm
• Self-priming from dry up to 2.4m (7.8 ft) at low or high speeds
• Impeller: Neoprene
• Drive: Gear drive
• Body Materials: Bronze head, Cast Iron bearing housing
• Wearplate: Replaceable
• Shaft Material: Stainless steel
• Shaft Seal: Carbon/ceramic mechanical type
• Bearings: Twin single row, ball type
• Weight: 12.7 kg (28 lb)
