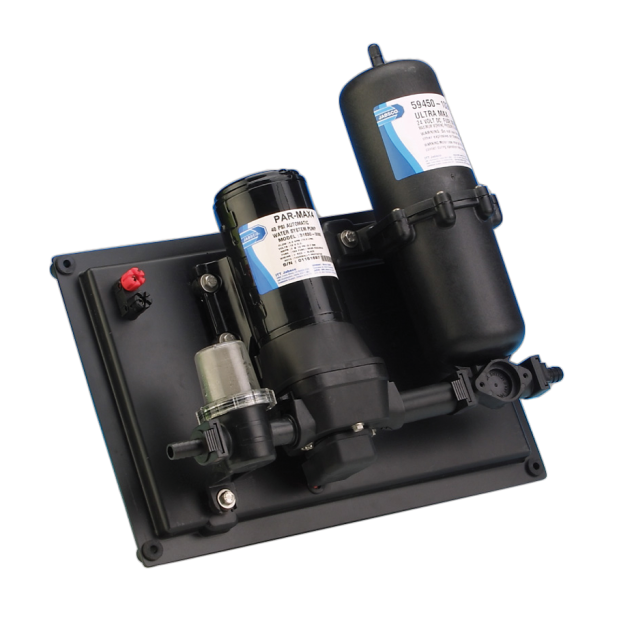

This is a fully assembled water pressure set with Par-Max 3 pump, pressure switch, accumulator tank and pump-guard strainer; can be oriented vertically or horizontally. The system is entirely self-contained on one base for rapid and easy installation by boatbuilder and boat owner alike.
• Ideal for up to four outlets
• Quadruple diaphragms provide smooth, even flow at 3.5 GPM
• Pressure switch cut-in 20 psi; cut-out 40 psi
• Simple and low cost installation
• Self-priming to 10 ft.
• Runs dry without damage
• Thermal overload and ignition protection (meets USCG 183.410)
• ISO8846 Marine, meets USCG electrical requirements including ignition protection
• Connections for 1/2" I.D. hose barb and 1/2"-14 pipe thread fittings
• CE marked
• Dimensions: 15-1/2"L x 15-3/4"W x 5-1/2"H
• Weight: 6.6 lbs.
