Handy-Lock Open Body Turnbuckles

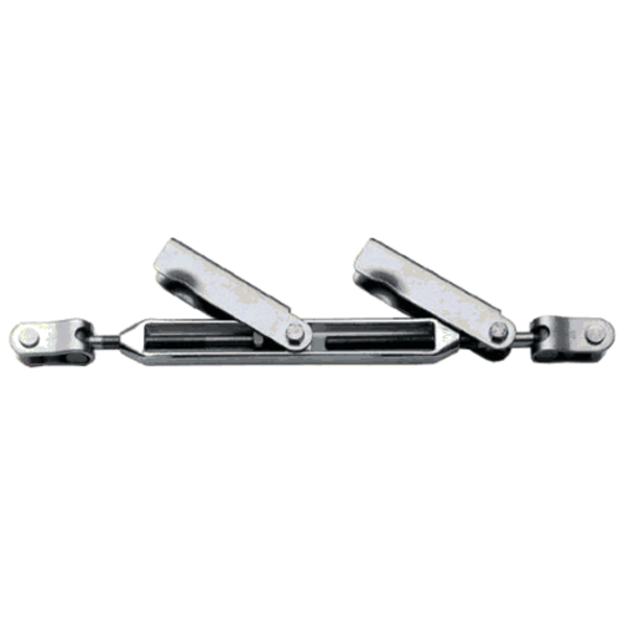

Handy-Lock Double Toggle Jaw Adjusting Turnbuckle - 1/4" Wire; 13-1/4" - 19-1/4"
SKU: 11588 Item ID: JOH 02-100
Description
The 02 series is a long body backstay turnbuckle for larger boats. Designed with two handles to allow for quick mast bending, even under strain.
• Positive locking without cotter pins or check nuts
• No sharp corners to tear sails, threads fully protected
• Adjustment is quick and requires no tools, just turn handles from lock position to adjust
• Breaking strength: 7,000 lbs. and safe working load: 2,800 lbs.
• Pin Diameter: 3/8", Thread size: 3/8-24
• Calibrated turnbuckles can be special ordered
Specifications
MFG #:02-100
Pin Dia.
3/8"
Adj. Length
13-1/4" - 19-1/4"
Wire Dia.
1/4"
Thread
3/8-24
Style
Jaw to Jaw
Type
Jaw to Jaw
Barcode
762799021009
