Single Handle Side Mount Control Head
Single Handle Side Mount Control Head

2030 Single Function Lever Side Mount Control Head

Side Mount Mechanical Control • One Lever, One Function
By: Kobelt

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).

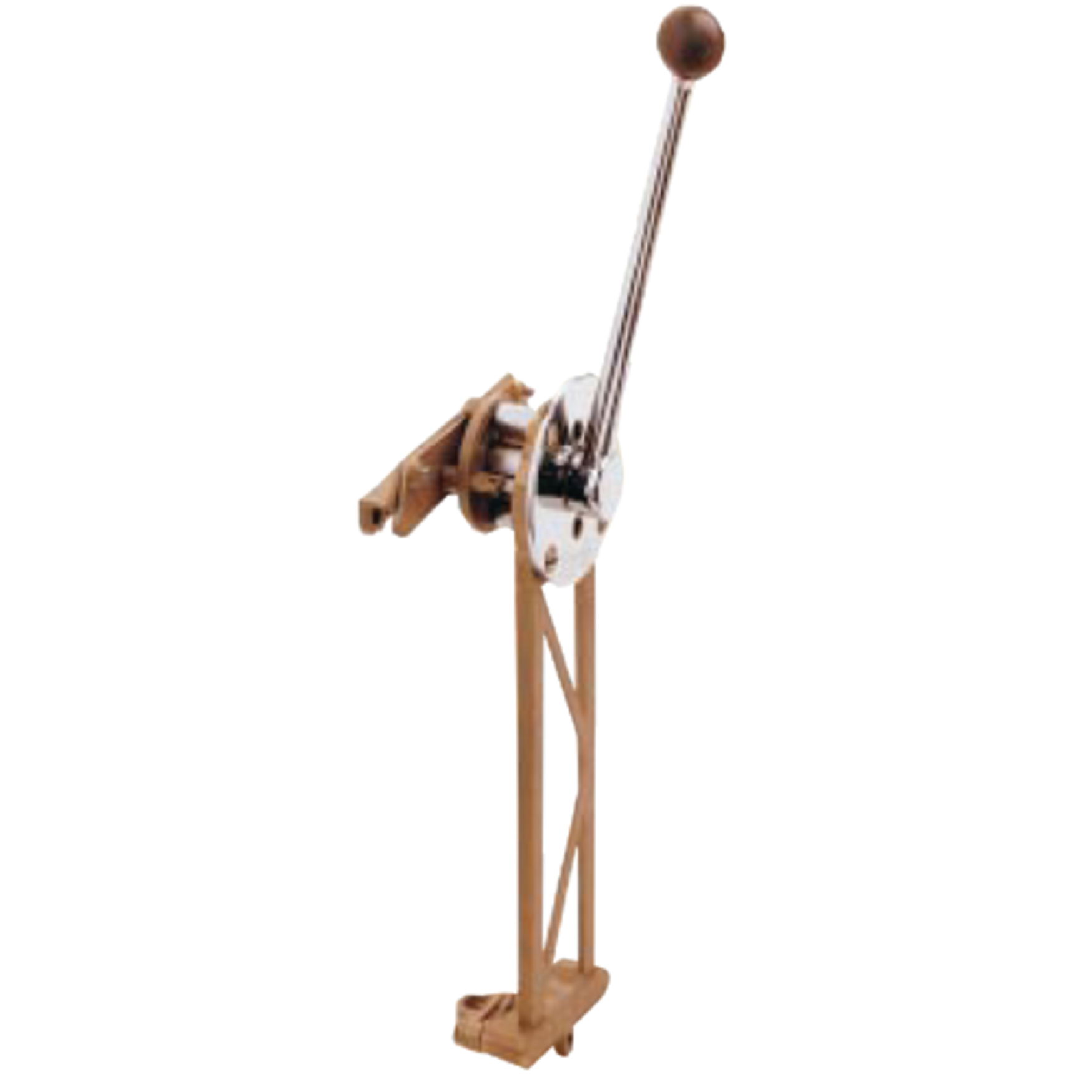

Commonly used on sailboats, the 2030 is a large bearing side-mounted control, providing 3-1/4" (82mm) of cable stroke for either a clutch or throttle. It is also applicable, however, for many other industrial and marine applications controllong variable delivery hydraulic pumps, rotary or slideable levers, and other devices with relatively small mechanical forces.
The 2030 output cable attaching flange (cable support bracket) can be installed at 90 degree increments in relation to the control handle.
The 2030 is only available with one length of handle.

The 2030 requires cable connection kits that typically use 30 Series (10-32 threaded ends) or 40 Series (1/4-28 threaded ends) cables. Connector kits are sold separately and each cable end attached to the control head requires one kit.

• Corrosion-free chromed die cast brass with stainless steel hardware - will outlast all competing products
• 3-1/4" stroke
• Neutral or mid-position adjustable detent or friction is supplied as standard equipment

Available in 10 variations of detent and friction settings and finishes:
• "Standard" format is chrome finish with straight all chrome handles, in the "A" configuration
• K - Chrome finish flange and handle
• L - Satin brass finish flange and handle
• M - Black epoxy finish flange and chrome handle
• N - Long handle with adjustable detent and black knob
• O - Long handle with friction and red knob
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDKobelt#AvailabilityDescriptionUOMYour PriceQTY
142849KOB 2030KN 2030KNLoading...Single Handle Side Mount Control Head, Side Mount Control - Chrome/Single Handle/Long DetentLoading...
142850KOB 2030-0901 2030-0901Loading...30 Series Cable Connection Kit for 2030 Single Handle Side Mount Control HeadLoading...
142851KOB 2030-0902 2030-0902Loading...40 Series Cable Connection Kit for 2030 Single Handle Side Mount Control HeadLoading...
Add To Cart
