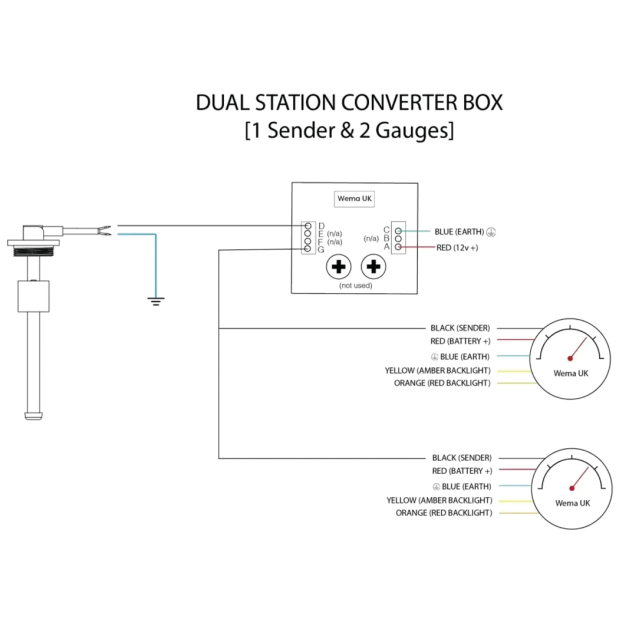

- 1 sender and 2 gauges

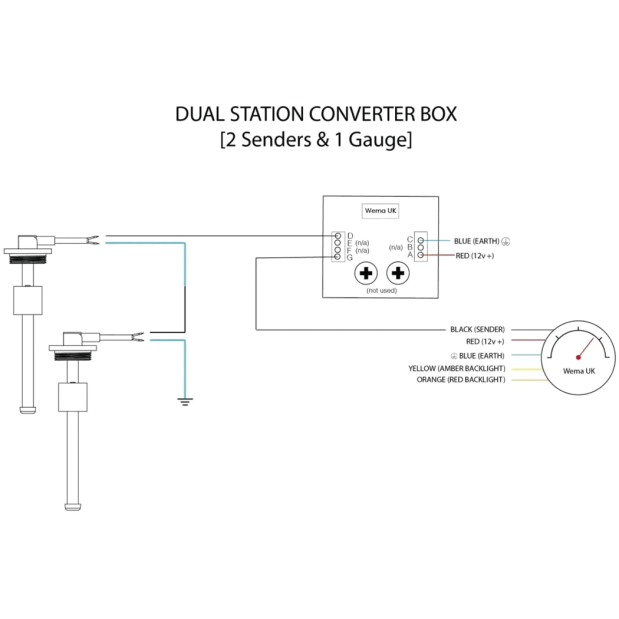

- 2 senders and 1 gauge
- 12/24V
Description

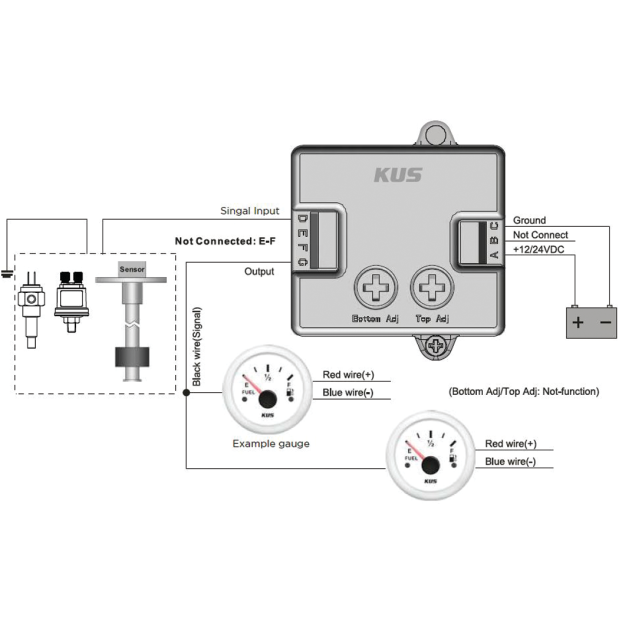

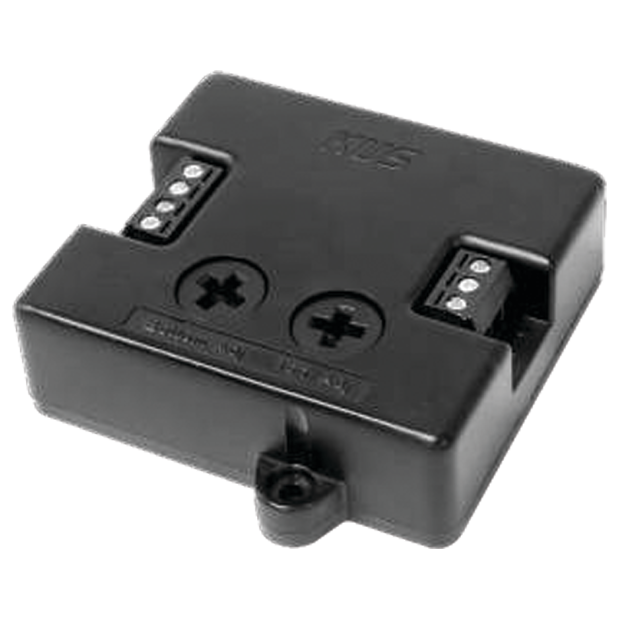

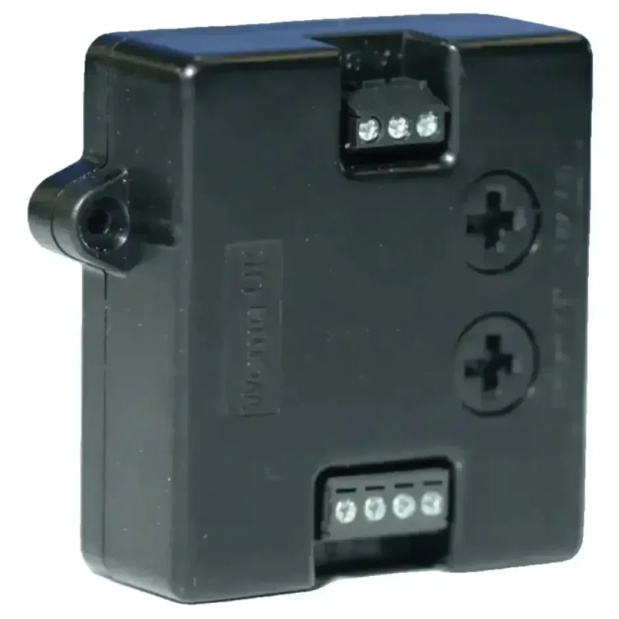

The Dual Station Converter from KUS enables the connection of two senders to a single gauge, or one sender to two gauges. This converter is perfect for utilizing resistance senders in different applications such as fuel tanks, drinking water tanks, holding tanks/waste tanks, temperature, and pressure. The dual station adapter is compatible with both 12V and 24V systems, although for the 24V system, a resistor needs to be installed (which is provided with all KUS single voltage gauges).
• Can be used with fuel tanks, waste holding tanks, or water holding tanks with resistance style senders
• This converter can not be used in combination with one analogue gauge and one digital or NEMA2000 gauge.
• Used with 1 sender and 2 gauges or 2 senders and 1 gauge
Specifications
