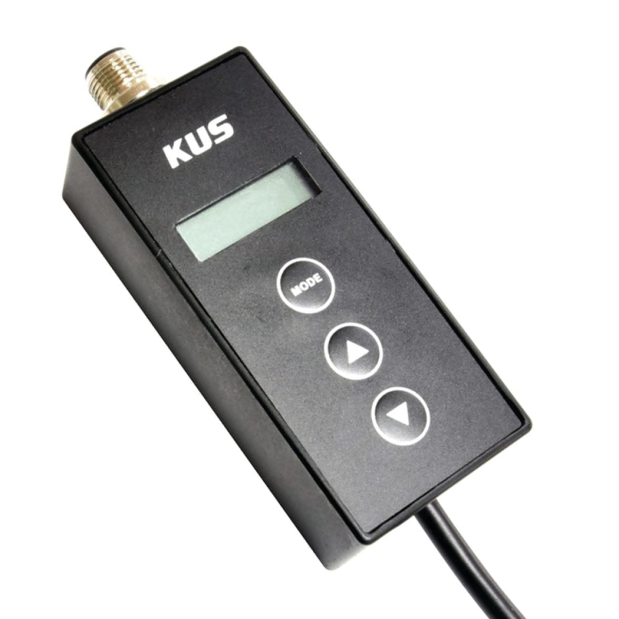

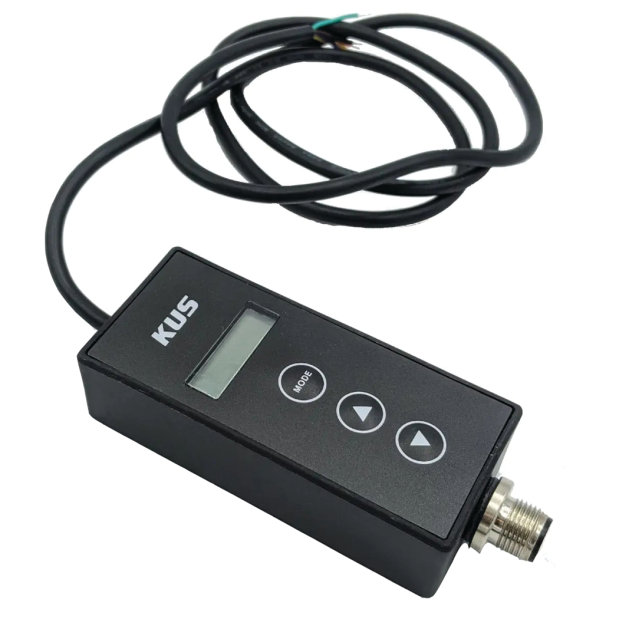

NKC42 Network Converter / Universal Adapter

The NKC42 is a universal adapter that allows one to connect the existing analog fuel, fresh water, waste water, live well, oil, black water sensors to the NMEA 2000 network.
• NKC series attaches directly into J1939 and NMEA 2000 networks of comparable engines, transmissions and gen-sets and converts the signals to the NMEA 2000 or J1939 CAN bus data
• J1939 & NMEA 2000 output for use with on board device
• NKC series can be used to get engine data, tank levels, alarm status, generic pressure and temperature indications from any resistive sensors
• Programmable sensor types including fuel, fresh water, waste water, live water, oil, and black water
• Programmable sensor number up to 16 per sensor type
• Adapts American standard (240~33 ohm) or European standard (0~190 khm) resistive sensors to NMEA 2000 network.
• NMEA 2000 interface
• 4 Channels
• 70mm x Ø27mm
• IP67
• Signal Output: NMEA 2000/J1939 Network Messages
• 8-32V DC
• Male "Micro-C" Pinout connector
• -40°F ~ +185°F(-40°C~+85°C)
• Mac Current: 50mA
