12V HATCH LIFT 41IN EXTENDED
Lenco Electric Hatch Lifts
Share THIS PAGE:

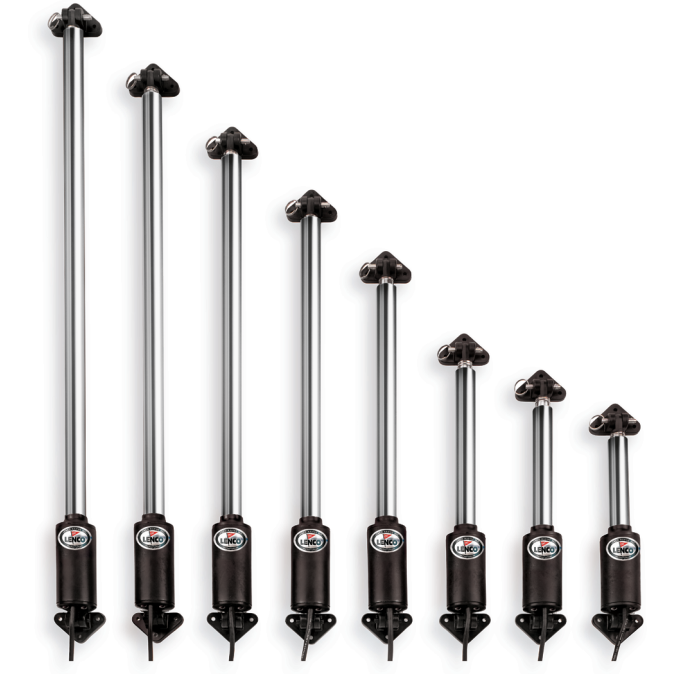

Lenco 12V Electric Hatch Lifts

750 Pounds of 12V Electrical Power Lift

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The function of the Lenco hatch lift system is simple. Since the hatch lift is based around a ballscrew, it is able to push or pull a heavy load and remain at a constant position. To raise a load, extend the hatch lift by pressing on the upper part of the switch. To lower a load, retract the hatch lift by pressing the lower part of the switch.
• In case of power failure, Lenco hatch lifts are supplied with two clevis pins at the mounting brackets. To pull this pin out while the hatch is closed you must rig it to a point outside of the hatch.
• The actuator is most powerful when it is installed vertically at 90°
• Lifting capabilities decrease the closer the upper or lower mount is located to the hinge
• The further it is from a vertical position the less lifting capability
• When retracted, do not position hatch lift at an angle less than 30°
• Dual actuator systems are recommended for hatches over 500 lbs.
• For installation, it is important that the hatch lift is able to disengage itself at the fully retracted position. Failure to make accurate measure could cause damage to hatch lift or the hatch itself
• Lenco hatch lifts are fully submersible and will not drift
• Lenco hatch lifts are offered in both 12 and 24 volts

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDLenco Marine Inc#AvailabilityDescriptionUOMYour PriceQTY
158274LEN HL-400 HL-400Loading...Lenco Electric Hatch Lift, 15.38" Retracted - 19.63" ExtendedLoading...
158275LEN HL-600 HL-600Loading...Lenco Electric Hatch Lift, 19.88" Retracted - 25.88" ExtendedLoading...
180408LEN 20764-001 20764-001Loading...Lenco Electric Hatch Lift, 19.88" Retracted - 27.88" ExtendedLoading...
158276LEN HL-800 HL-800Loading...Lenco Electric Hatch Lift, 23.88" Retracted - 31.88" ExtendedLoading...
160984LEN HL-1200S HL-1200SLoading...Lenco Electric Hatch Lift, 23.88" Retracted - 35.88" ExtendedLoading...
158277LEN HL-1200 HL-1200Loading...Lenco Electric Hatch Lift, 28.88" Retracted - 40.88" ExtendedLoading...
160958LEN HL-1600S HL-1600SLoading...Lenco Electric Hatch Lift, 28.89" Retracted - 44.88" ExtendedLoading...
158279LEN HL-1600 HL-1600Loading...Lenco Electric Hatch Lift, 32.88" Retracted - 48.88" ExtendedLoading...
160985LEN HL-2000S HL-2000SLoading...Lenco Electric Hatch Lift, 32.88" Retracted - 52.88" ExtendedLoading...
160167LEN HL-2000 HL-2000Loading...Lenco Electric Hatch Lift, 36.88" Retracted - 56.88" ExtendedLoading...
160443LEN HL-2400S HL-2400SLoading...Lenco Electric Hatch Lift, 36.89" Retracted - 60.88" ExtendedLoading...
158280LEN HL-2400 HL-2400Loading...Lenco Electric Hatch Lift, 40.88" Retracted - 64.88" ExtendedLoading...
160959LEN HL-3000 HL-3000Loading...Lenco Electric Hatch Lift, 46.82" Retracted - 76.82" ExtendedLoading...
