Pro Control Assist is the manual control option which features a smart, sleek dial controller, providing a best-in-class user interface.

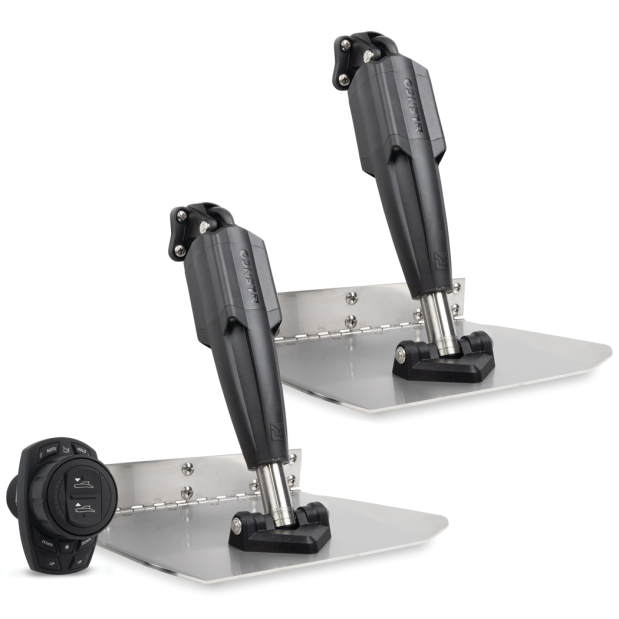

Standard Mount Trim Tabs — The original Trim Tab design, ideal for center console fishing boats to cuddy cabin cruisers.

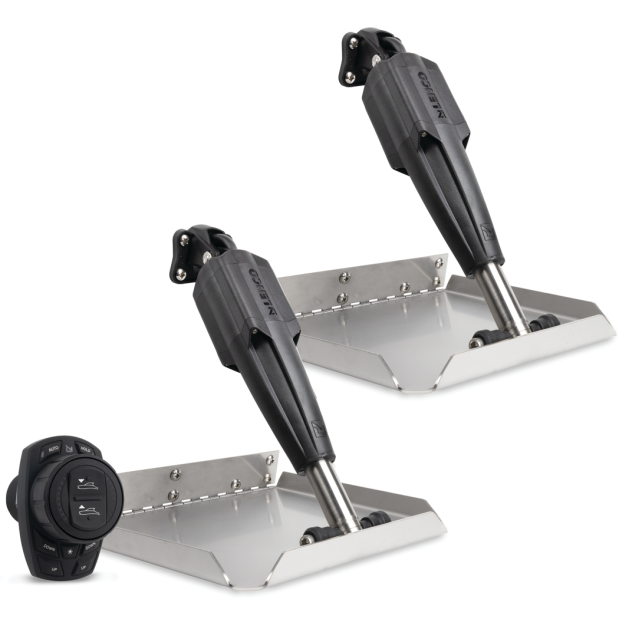

Edge Mount Trim Tabs — Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3" (7.6 cm) lower mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style.
• CAN communication protocol as standard
• Hole Shot Assist
• Class leading user interface with Intuitive keypad design
• Day/Night Mode for global dim on selected MFDs
• Programmable Memory Position Recall
• Built to Last – Easy Maintenance
Assist Features
• Industry-leading connectivity—CAN based protocol comes as standard, meaning ease of system integration and installation.
• Ease of use – precise control—Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
• Instant access to favorite settings—Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
• Hands free holeshot—Speed based automatic deployment of the trim tabs – engage throttle and tabs deploy to get boat on plane quicker, plus automatic retract at slower speeds with no manual operation required.
• Built to last—Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.

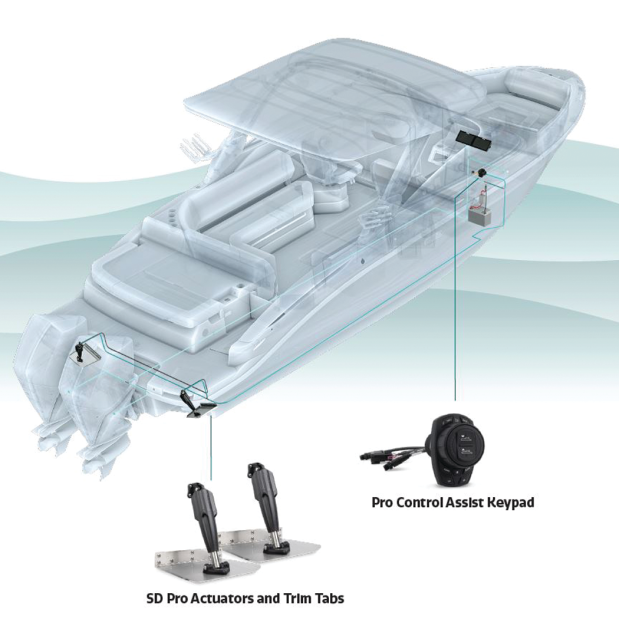

Kits include:
• 1) Pro Control Assist Keypad (15175-106)
• 2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
- Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
- Edge Mount blades - with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge) & 1/8" (3.2 mm) diameter hinge pin.
• 2) 2.25" Stroke SD Pro Actuators, 11.5" pin to pin (15189-001)
• (5) Micro C Tee Connector (15209-101)
• Micro C Power Cable with fuse and ground (15197-101)
• (2) 6' Micro C Drop cables (15199-101), (1) 25' (15201-101) Micro C Drop cables
• (2) 6 Pin Detusch to Micro C Actuator Network Adapter Cable (15205-101)
• (2) 3' (.91 m) Pro Control Actuator Power Pigtail (15206-101)
• (2) Wake Signal Adapter for Non-Mercury Systems (15207-101)
• (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
• (2) Corrosion proof Lower
| Selected | SKU # | MFG # | Availability | Mount Type | Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 1047009 | MFG #: 15181-106 | Special Order Only | Standard | 9"L x 12"W | $2,287.99 | |||
| SKU #: 1047011 | MFG #: 15183-106 | Special Order Only | Standard | 12"L x 12"W | $2,313.99 | |||
| SKU #: 1047013 | MFG #: 15185-106 | Special Order Only | Edge | 12"L x 12"W | $2,339.99 |
