Pro Control Auto System Kits

Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.

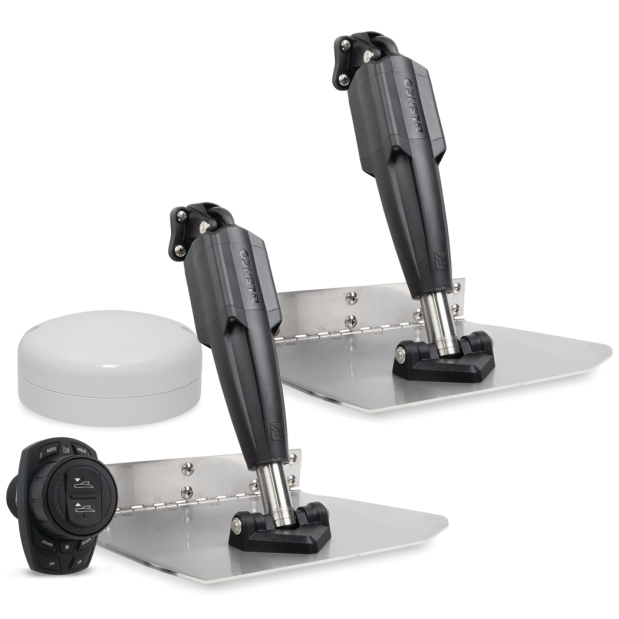

Standard Mount Trim Tabs — The original Trim Tab design, ideal for center console fishing boats to cuddy cabin cruisers.

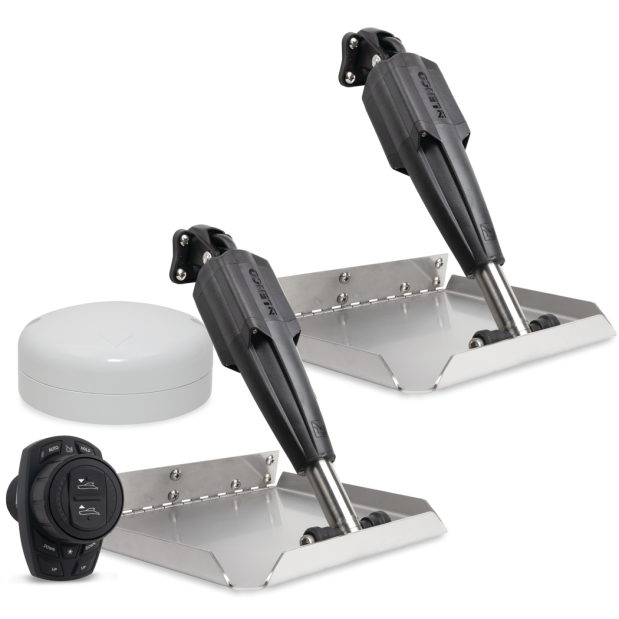

Edge Mount Trim Tabs — Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3" (7.6 cm) lower mounting height on 12" (30.5 cm) long blades. All edges are turned up for added strength and style.

• Industry-leading Auto-Levelling - A game-changer for boat stability, boasting a 74% improvement against no system, outperforming the leading interceptor brand by 25% .
• A more comfortable, cushioned ride - Reduce "slams" and "thuds" with an industry-best 24% reduction of re-entry impact .
• Confidence offshore —Pro Control rivals far more expensive products offshore, delivering an impressive 15% pitch reduction in dynamic seas.
• Faster reaction = instant control - Improved holeshot and response times deliver near-instant response to the helm for enhanced control.
• Built to last - Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.

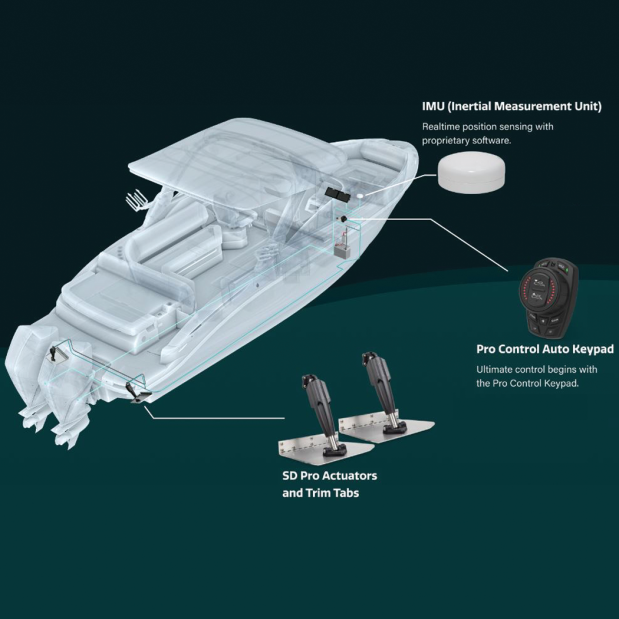

Kits include:
• (1) Pro Control Auto Keypad (15174-107)
• (1) Pro Control Auto IMU (15180-001)
• (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
  - Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
  - Edge Mount blades - with 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge) & 1/8" (3.2 mm) diameter hinge pin.
• (2) 2.25" Stroke SD Pro Actuators, 11.5" pin to pin (15189-001)
• (6) Micro C Tee Connector (15209-101)
• Micro C Power Cable with fuse and ground (15197-101)
• (2) 6' Micro C Drop cables (15199-101), (1) 15' (15200-101) and (1) 25' (15201-101) Micro C Drop cables
• (2) 6 Pin Detusch to Micro C Actuator Network Adapter Cable (15205-101)
• (2) 3' (.91 m) Pro Control Actuator Power Pigtail (15206-101)
• (2) Wake Signal Adapter for Non-Mercury Systems (15207-101)
• (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
• (2) Corrosion proof Lower Mounting Brackets (15194-101)
• Lenco 2K Backbone Kit
