Description

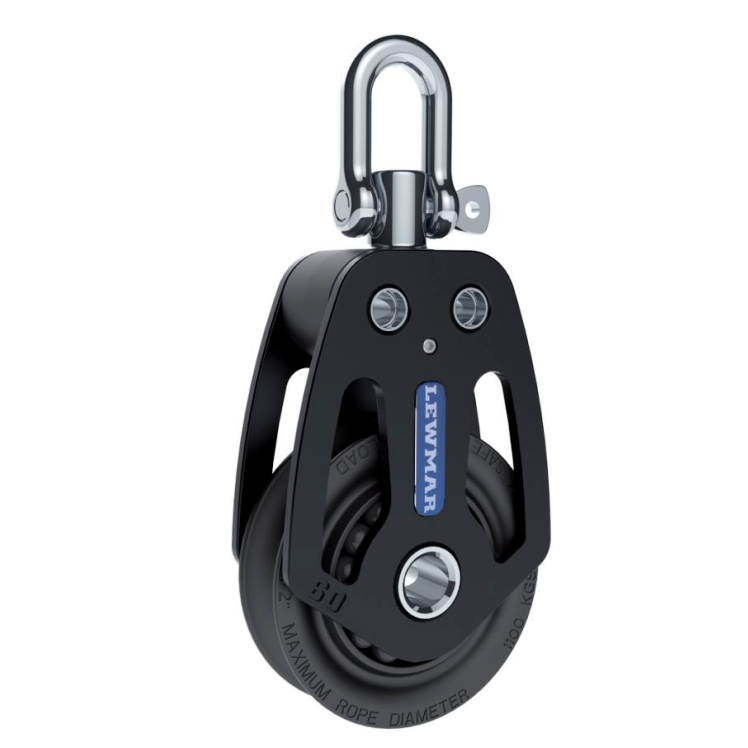

Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
• Strong aluminium side cheeks
• Central plain bearing for efficiency at high loads
• Side thrust delrin ball bearings
• Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
• Shackle post: 3/8" (9.4mm)
• Max pin: 3/16" (5mm)
Specifications
MFG #:29195001
Weight
4.7 oz (135g)
Max. Line
3/8" (10mm)
Sheave Diameter
2" (50mm)
SWL
1,762 lbs. (800kg)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
743683204050
